Stock available
What it is

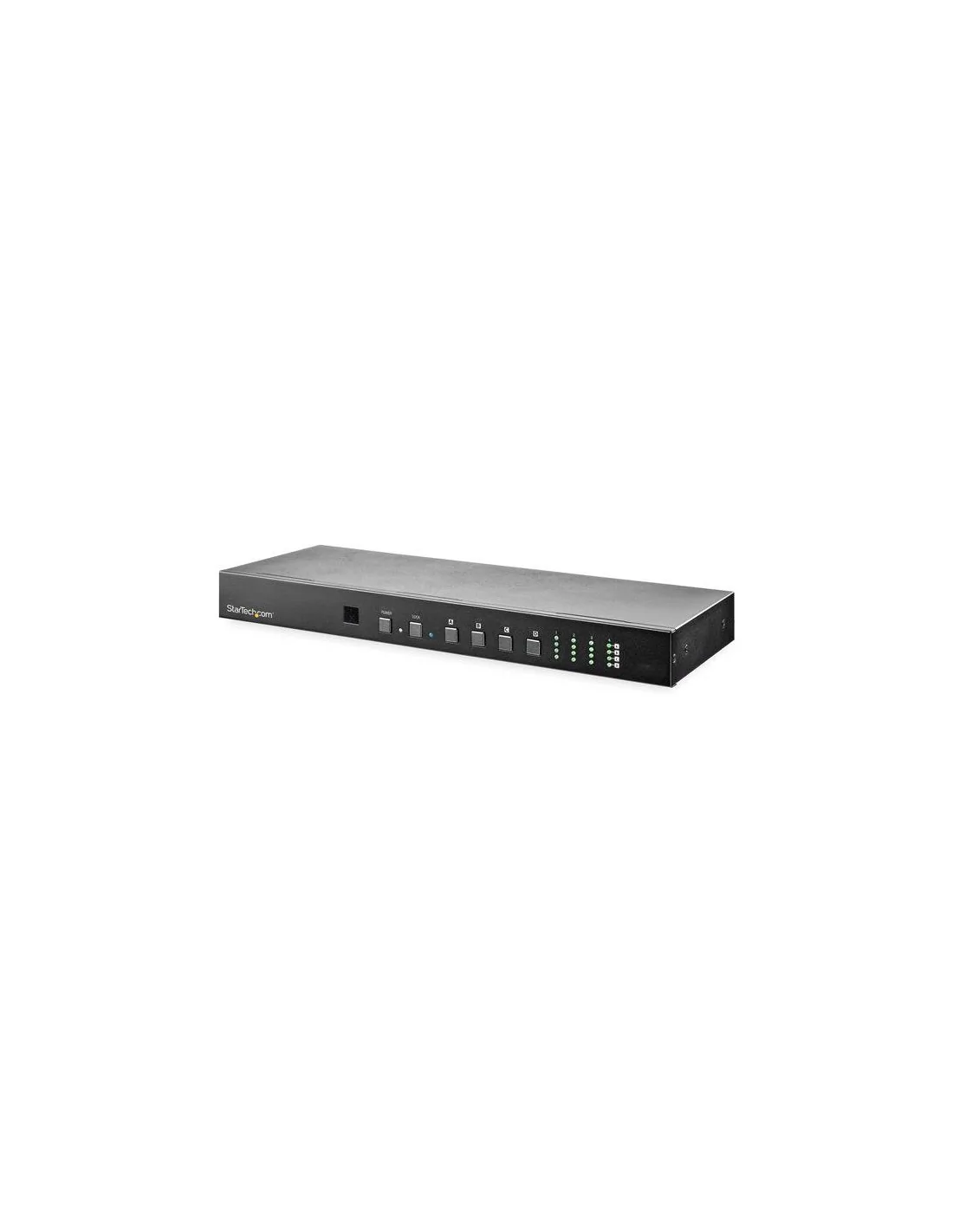

This StarTech.com 4x4 HDMI matrix switch routes multiple HDMI sources to multiple displays with support for 4K at 60Hz, including audio and Ethernet control options.
Who it's for
Ideal for AV installations where flexible HDMI signal routing is needed, such as conference rooms, control centres, or digital signage with up to four inputs and four outputs.
Why it's good
The metal rack-mountable design supports bandwidth up to 18 Gbit/s and resolutions up to 4096 x 2160. It also supports 7.1 channel audio and RS232 control for integration into complex setups.
When to choose it
Use this matrix switch when you need to manage several HDMI sources and displays independently with reliable high-resolution and high-bandwidth capabilities.
Specifications
| Features | |
|---|---|
| Product type | AV matrix switcher |
| Bandwidth | 18 Gbit/s |
| Supported resolutions | 4096 x 2160 3840 x 2160 1920 x 1200 |
| Maximum resolution | 4096 x 2160 pixels |
| Audio channels | 7.1 |
| Design | |
| Housing material | Metal |
| Rack mounting | Yes |
| Housing colour | Black |
| Certification | TAA, CE, FCC, REACH |
| LED indicators | Activity, Power |
| Remote control included | Yes |
| Display | |
| Built-in display | No |
| Ports & interfaces | |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| USB connector type | Mini-USB B |
| Remote (IR) input | 1 |
| HDMI version | 2.0 |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Output current | 2700 mA |
| Output voltage | 24 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Harmonized System (HS) code | 85299097 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 437 mm |
| Height | 43 mm |
| Weight | 2 kg |
| Package weight | 4 kg |
| Package width | 292 mm |
| Package depth | 525 mm |
| Package height | 95 mm |
| Packaging content | |
| Manual | Yes |
| Mounting brackets included | Yes |
| IR receiver included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
Get in touch with Creative Systems to confirm this switch fits your installation requirements and stock status.
