What it is

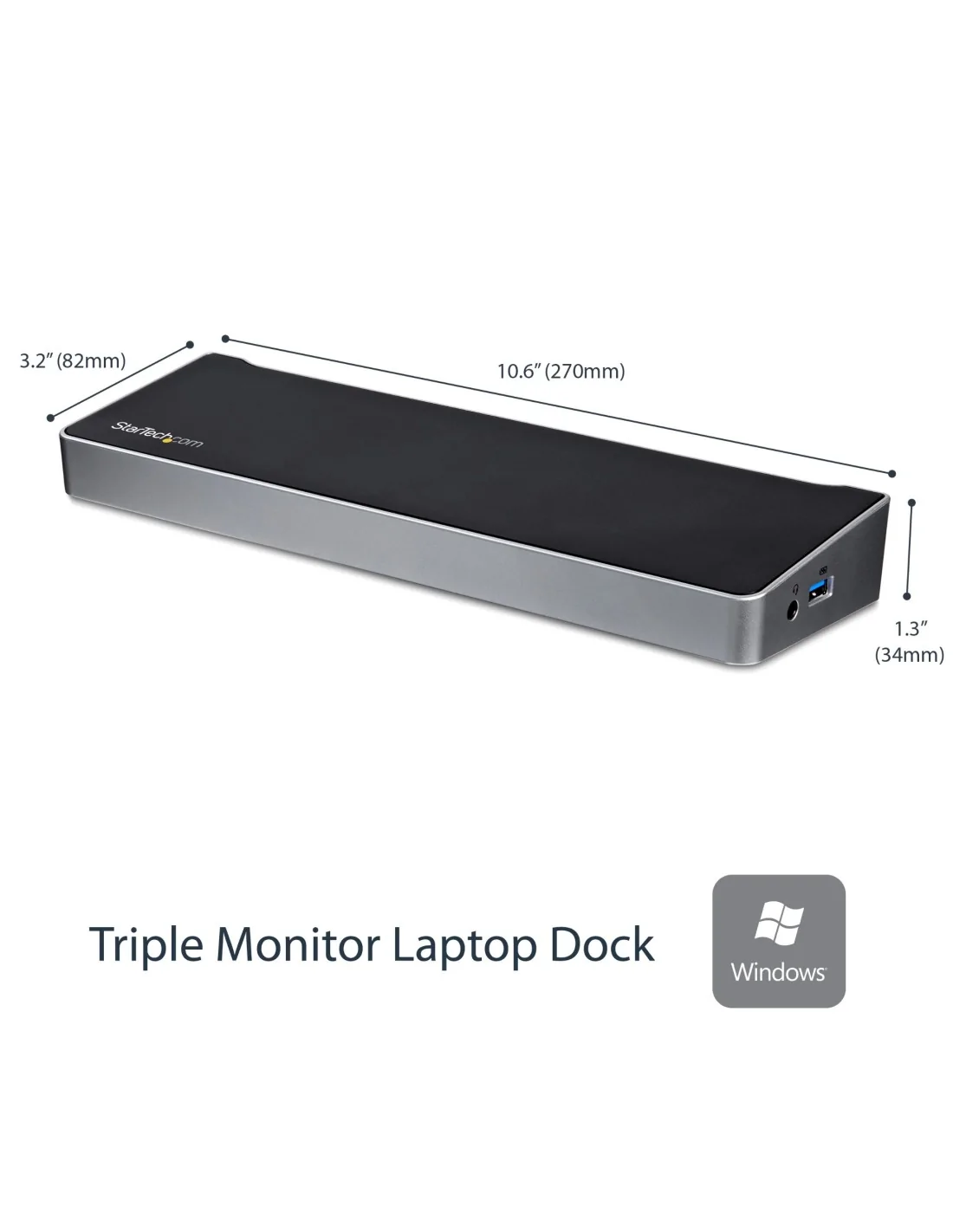

The StarTech.com USB3DOCKH2DP is a USB 3.0 docking station supporting triple monitors: one 4K HDMI and two DisplayPort outputs. It offers multiple USB Type-A ports and audio input/output connections.
Who it's for
This dock suits laptop users who need to expand connectivity with multiple monitors and peripherals, compatible with Windows and Mac systems using USB Type-A ports.
Why it's good
It provides five USB 3.2 Gen 1 Type-A ports, dual Ethernet LAN, microphone inputs, and headphone output, consolidating desk connections and easing laptop integration into desktop setups.
When to choose it
Opt for this dock if you require support for up to three monitors via USB 3.0 and want additional USB ports and audio connectivity in one device, avoiding separate adapters.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Number of microphone inputs | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB connector type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Black, Silver |
| Card reader integrated | No |
| Brand compatibility | Any brand |
| Cable lock slot | Yes |
| LED indicators | Activity, Link |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC, DisplayLink, TAA, REACH |
| Housing material | Plastic |
| USB data transfer rates | 5000 Mbit/s |
| Technical details | |
| Product colour | Black, Silver |
| Brand compatibility | Any brand |
| Cable lock slot | Yes |
| Data transfer rate | 5 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 363 mm |
| Master (outer) case length | 373 mm |
| Master (outer) case height | 395 mm |
| Storage | |
| Card reader integrated | No |
| Power | |
| Input current | 1.5 A |
| Power plug type | Type N |
| Compatible power plug types | AU, EU, UK, US |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 32.5 W |
| Output voltage | 5 V |
| Output current | 6.5 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Other operating systems supported | ChromeOS |
| Indication | |
| LED indicators | Activity, Link |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Weight | 376 g |
| Width | 82 mm |
| Depth | 270 mm |
| Height | 34 mm |
| Package weight | 1.03 kg |
| Package width | 296 mm |
| Package depth | 164 mm |
| Package height | 71 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Product colour | Black, Silver |
| Cable lock slot | Yes |
| LED indicators | Activity, Link |
| Certification | CE, FCC, DisplayLink, TAA, REACH |
| Packaging data | |
| Package weight | 1.03 kg |
| Package width | 296 mm |
| Package depth | 164 mm |
| Package height | 71 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC, DisplayLink, TAA, REACH |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 363 mm |
| Master (outer) case length | 373 mm |
| Master (outer) case height | 395 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| USB data transfer rates | 5000 Mbit/s |
| Number of microphone inputs | 1 |
| Chipset | DisplayLink - DL-5910, VLI - VL812 |
Please check with Creative Systems to ensure compatibility with your laptop and current stock before ordering.
