What it is

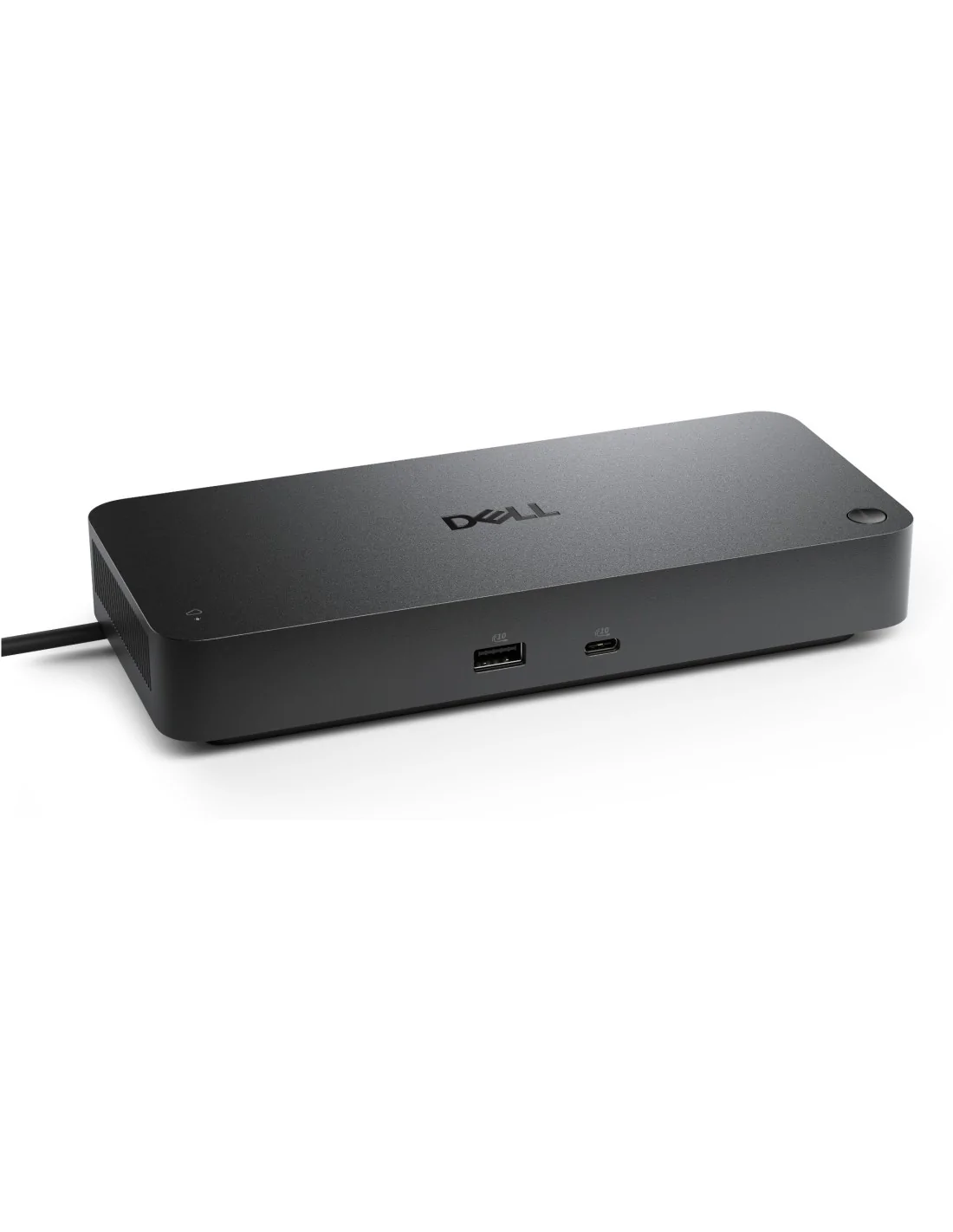

The Dell SD25TB5 is a professional docking station supporting Thunderbolt 5 connectivity, designed to expand port options for compatible laptops.
Who it's for
This dock fits users needing multiple USB-C ports, DisplayPort outputs, and a reliable wired connection for workstations using Thunderbolt 5 equipped Dell systems.
Why it's good
It offers four USB 3.2 Gen 2 Type-C ports, one USB 3.2 Gen 2 Type-A, two DisplayPorts, and two microphone inputs—all in a compact form factor ideal for desktop setups.
When to choose it
Pick this dock if you want to simplify connecting multiple peripherals to a Thunderbolt 5 laptop, enhance display setups, or expand port availability on your Dell laptop.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Host interface | Thunderbolt 5 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery up to | 15 W |
| DisplayPort version | 2.1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 5 ports quantity | 2 |
| Network | |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| LED indicators | Power |
| Data transfer rate | 1.25 Gbit/s |
| Cable lock slot type | Kensington, Noble |
| Number of storage drives supported | 4 |
| Maximum refresh rate | 120 Hz |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Data transfer rate | 1.25 Gbit/s |
| Total carbon footprint (kg of CO2e) | 103 |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power supply | 330 W |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Yes |
| Indication | |
| LED indicators | Power |
| Weight & dimensions | |
| Weight | 632 g |
| Width | 90 mm |
| Depth | 35.3 mm |
| Height | 205 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Product colour | Black |
| Cable lock slot | Yes |
| LED indicators | Power |
| Cable lock slot type | Kensington, Noble |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 103 |
| PAIA version | GaBi version 1, 2025 |
| Carbon emissions, energy usage (kg of CO2e) | 38.728 |
| Carbon emissions, manufacturing (kg of CO2e) | 60.461 |
| Carbon emissions, logistics (kg of CO2e) | 1.957 |
| Carbon emissions, end-of-life (kg of CO2e) | 1.854 |
Please ask Creative Systems to check compatibility with your laptop model and current stock before purchasing.
