What it is

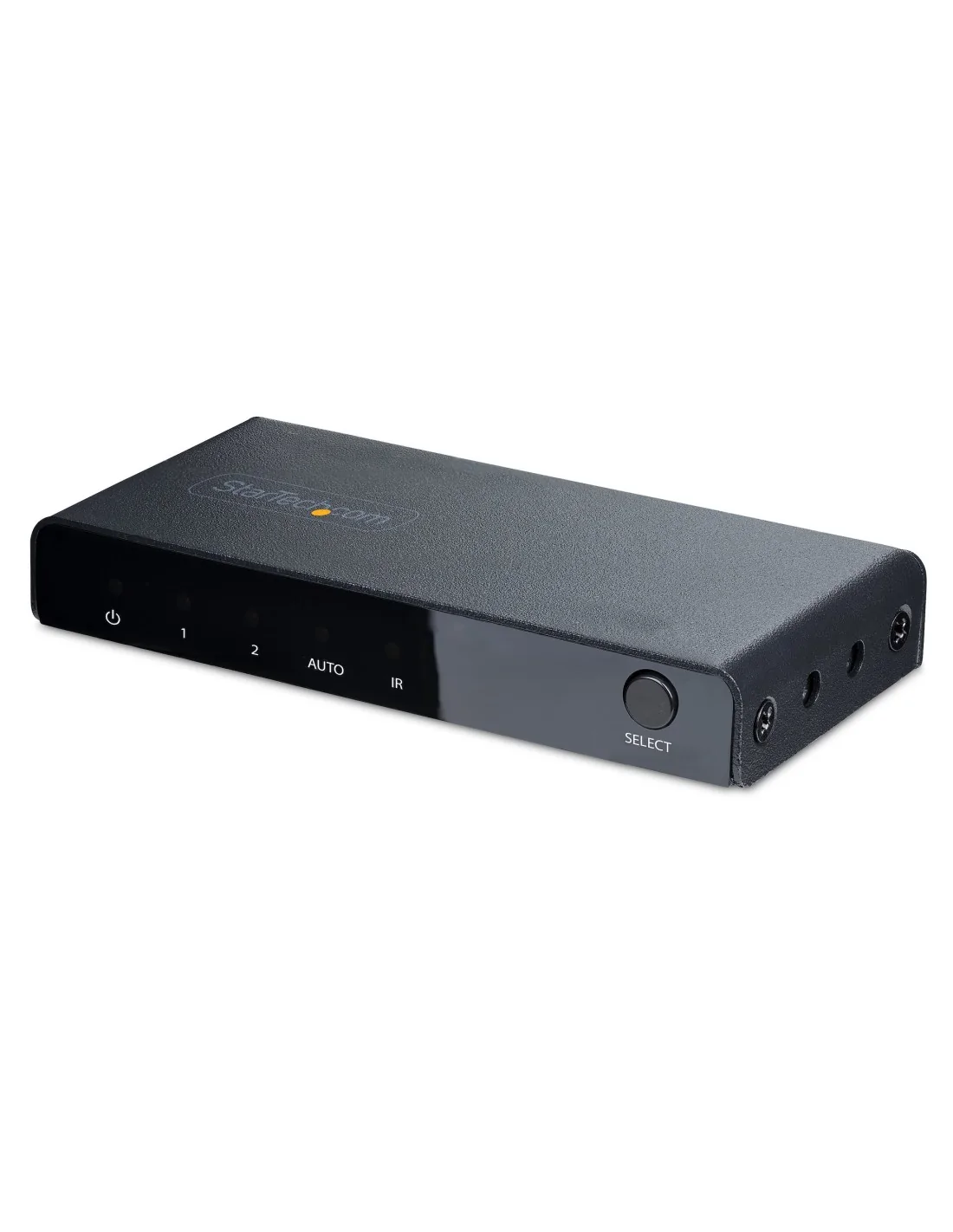

This StarTech.com product is a 2-port HDMI switch supporting resolutions up to 8K at 60Hz and 4K at 120Hz, with HDR10+ support, including a remote and power adapter.
Who it's for
This switch suits users who want to connect two HDMI sources to a single display and need easy switching with high-resolution HDMI 2.1 support.
Why it's good
It handles demanding video resolutions and refresh rates, supports 7.1 audio channels, and offers both automatic and manual source selection, simplifying multi-device setups.
When to choose it
Pick this switch if you have two HDMI inputs to manage to one display and want future-proof 8K compatibility along with remote control convenience.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| Number of HDMI outputs | 1 |
| HDMI in | 2 |
| USB port type | Micro-USB |
| Features | |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 7680 x 4320 |
| Plug and Play | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum operating distance | 5 m |
| Material | Metal |
| LED indicators | Yes |
| Power | |
| AC adapter input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 5 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 44 mm |
| Height | 14 mm |
| Depth | 90 mm |
| Weight | 87 g |
| Package width | 123 mm |
| Package height | 50 mm |
| Package depth | 179 mm |
| Package weight | 312 g |
| Technical details | |
| Audio output channels | 7.1 channels |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 44 mm |
| Height | 14 mm |
| Depth | 90 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 7680 x 4320 |
| Plug and Play | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum operating distance | 5 m |
| Material | Metal |
| LED indicators | Yes |
| Remote control included | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Packaging data | |
| Package width | 123 mm |
| Package height | 50 mm |
| Package depth | 179 mm |
| Package weight | 312 g |
| Packaging content | |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | USB Type-A to Micro-USB Type-B |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 550 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 280 mm |
Please contact us to verify your devices’ compatibility and confirm availability before ordering this HDMI switch.
