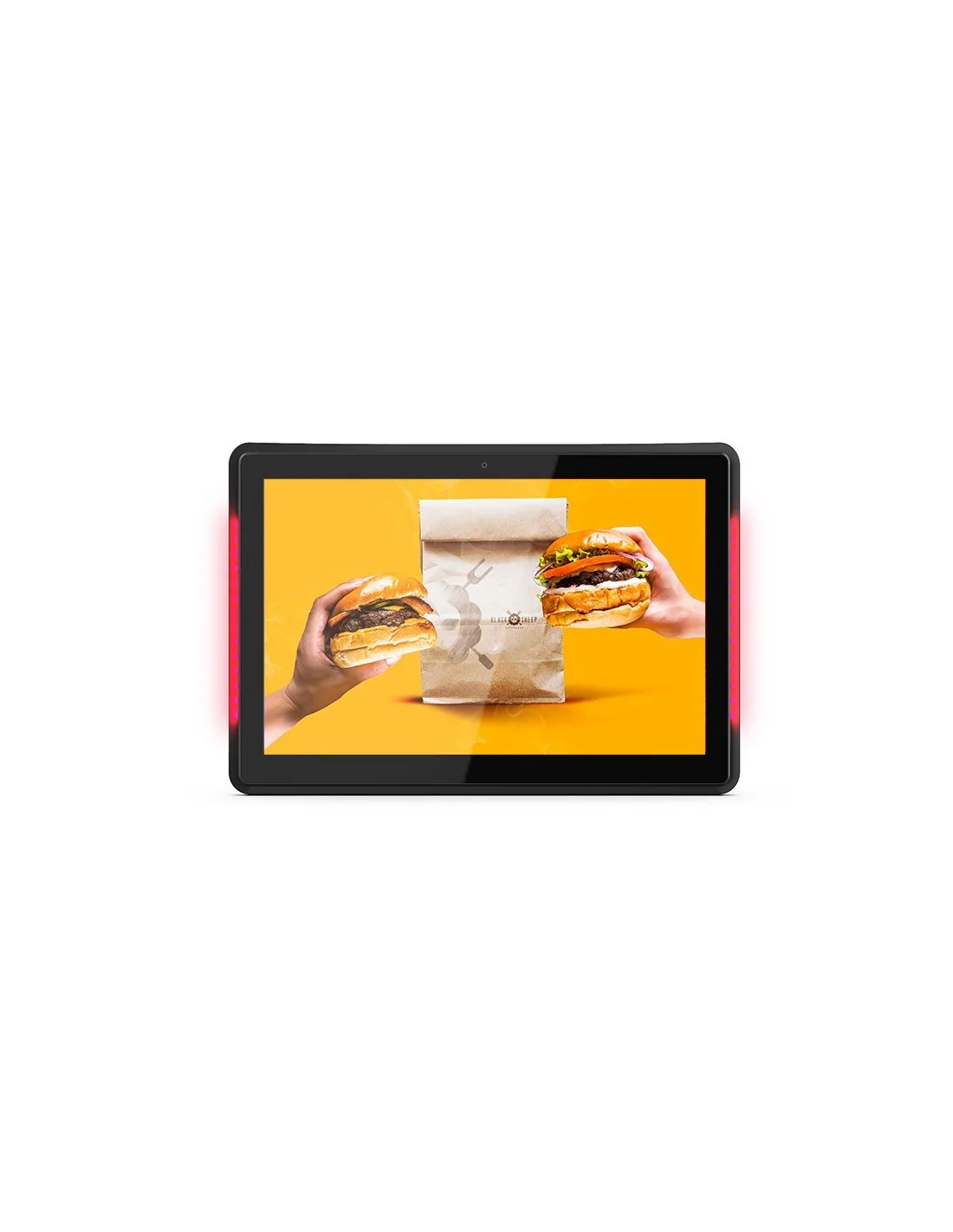

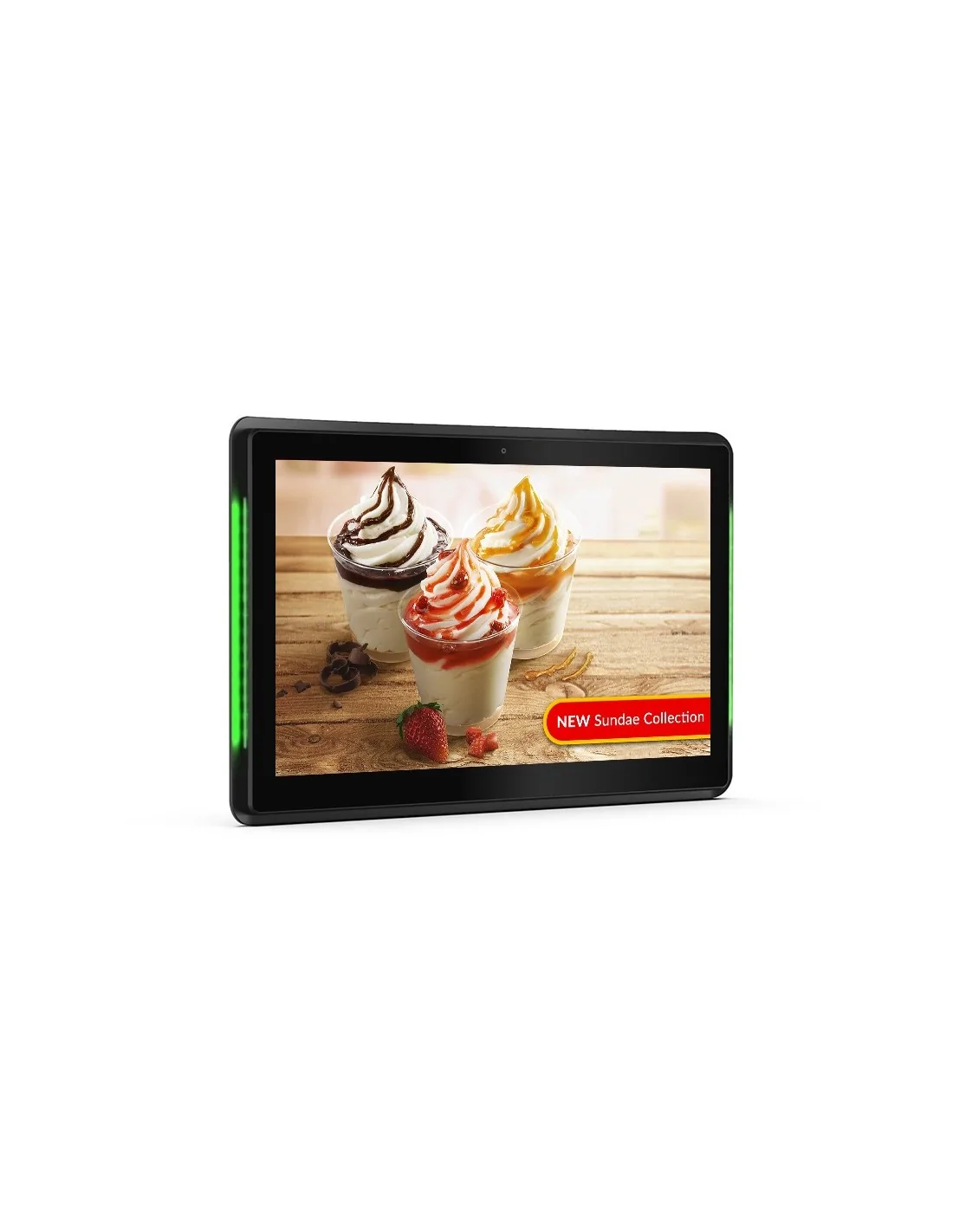

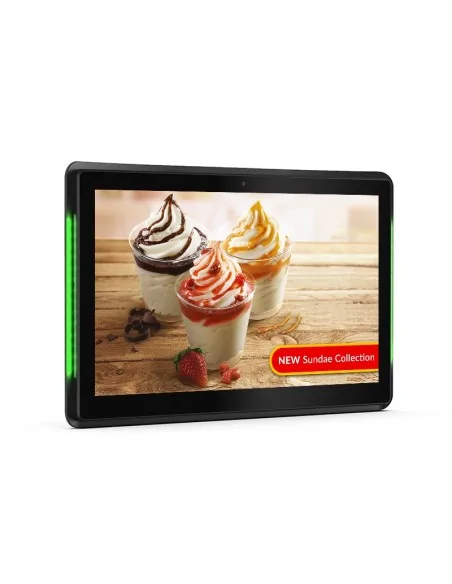

Allsee Counter/POS display

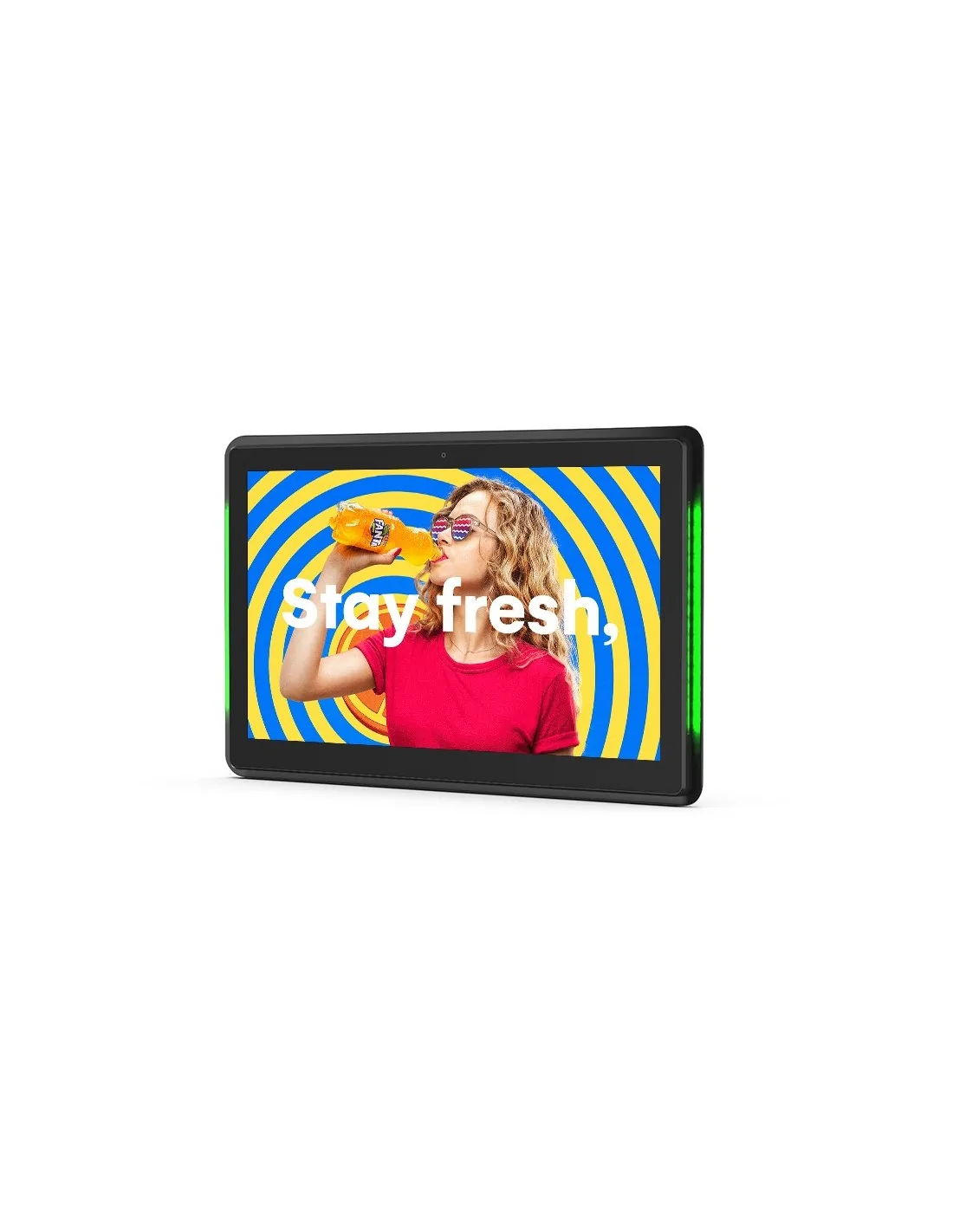

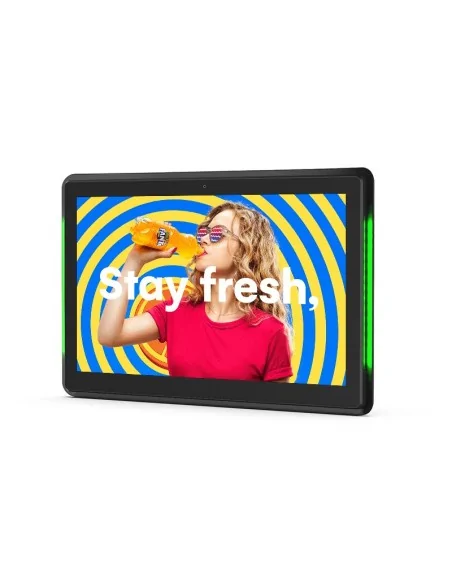

Allsee POS Advertising Display PCAP
Compact point-of-sale screen for promotions, customer messaging and counter engagement. Creative Systems can supply this Allsee product on its own or as part of a complete signage project with mounting, configuration and nationwide installation support.
Project-first advice
We match the display to the site, audience, mounting position and content workflow.
We match the display to the site, audience, mounting position and content workflow.
Supply or install
Order online for supply-only or ask us to quote a complete installed solution.
Order online for supply-only or ask us to quote a complete installed solution.
Content planning
We can advise on orientation, update method, media source and signage management.
We can advise on orientation, update method, media source and signage management.
Irish support
Creative Systems supports commercial AV and signage projects nationwide.
Creative Systems supports commercial AV and signage projects nationwide.

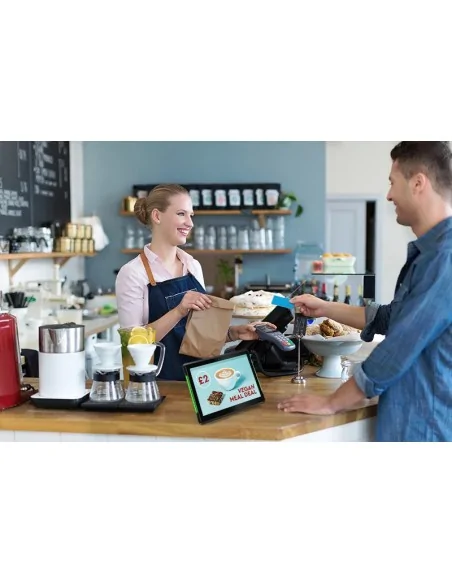

Where Allsee POS Advertising Display PCAP fits
This POS advertising display is best suited to projects where a commercial-grade Allsee solution is needed rather than a domestic TV or one-off consumer display.

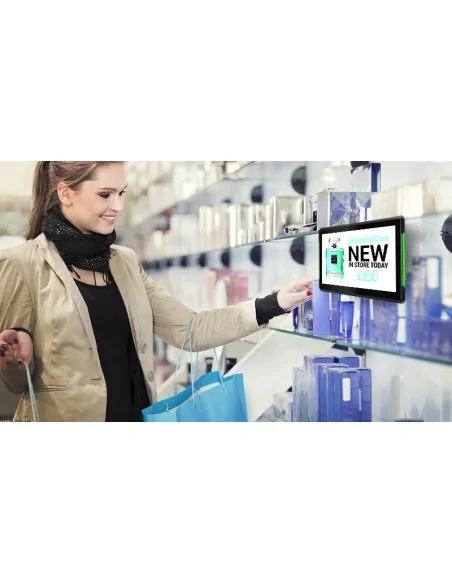

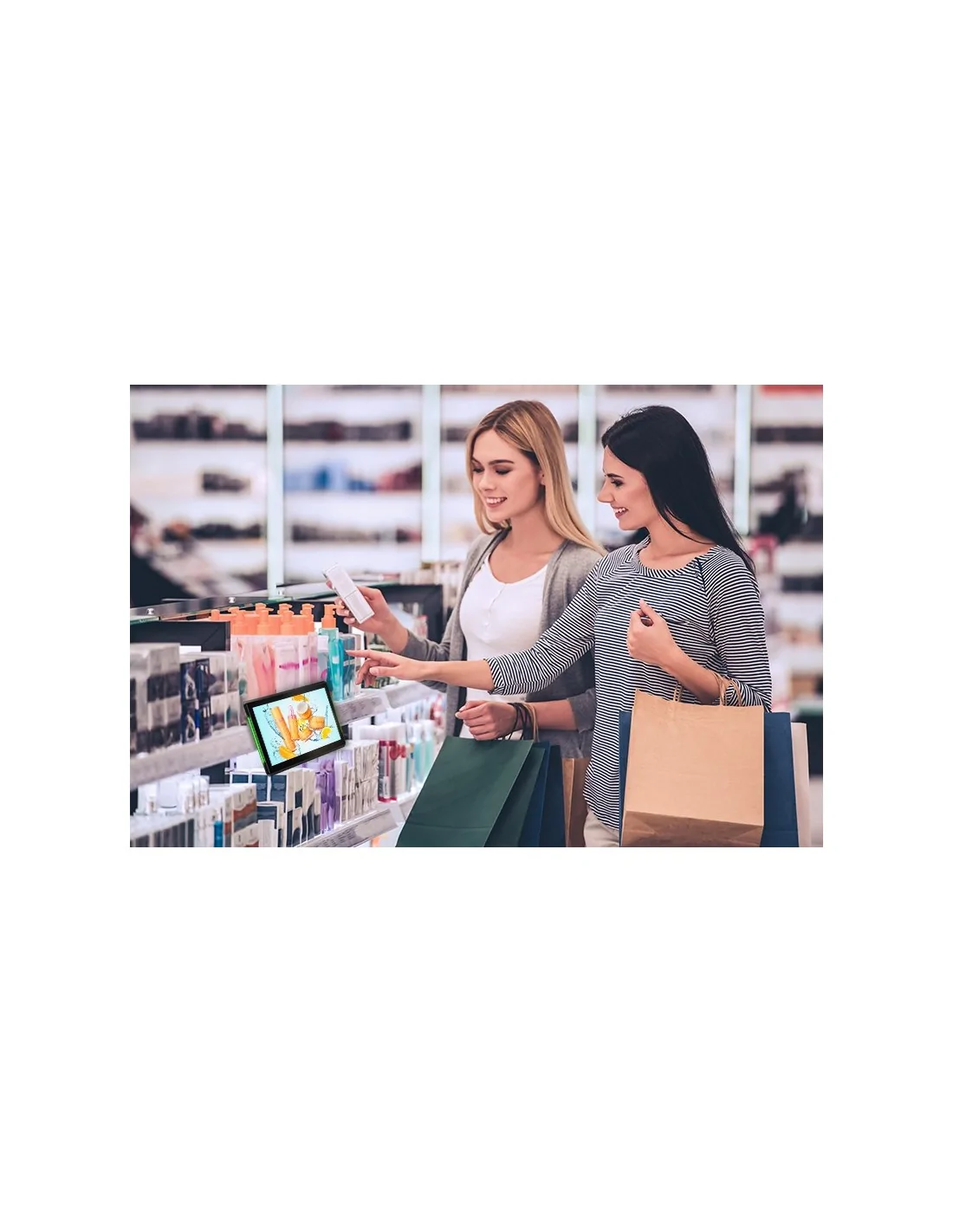

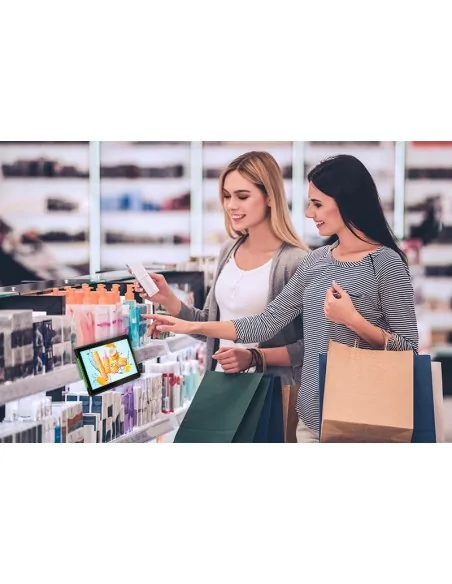

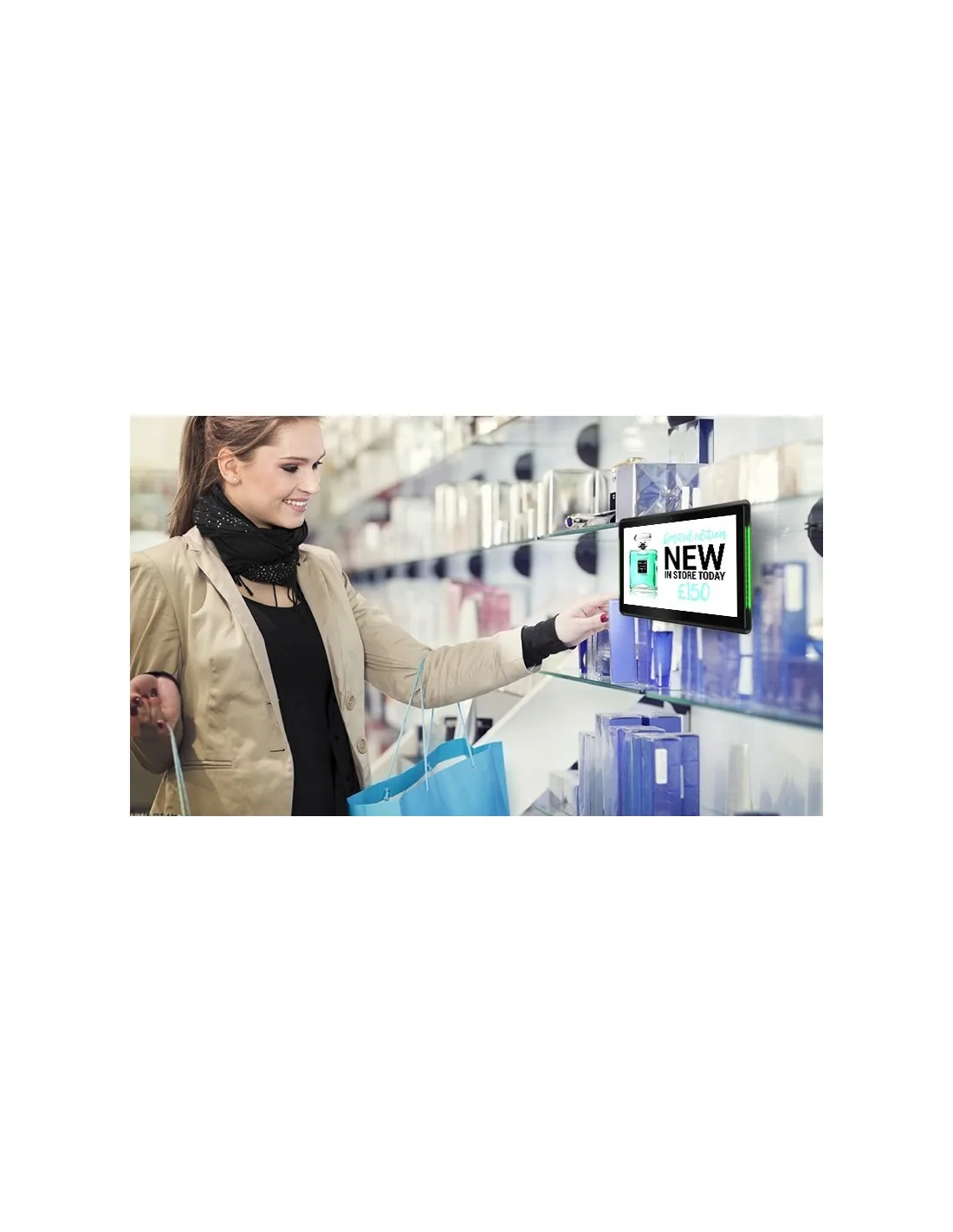

- Retail counters
- Reception desks

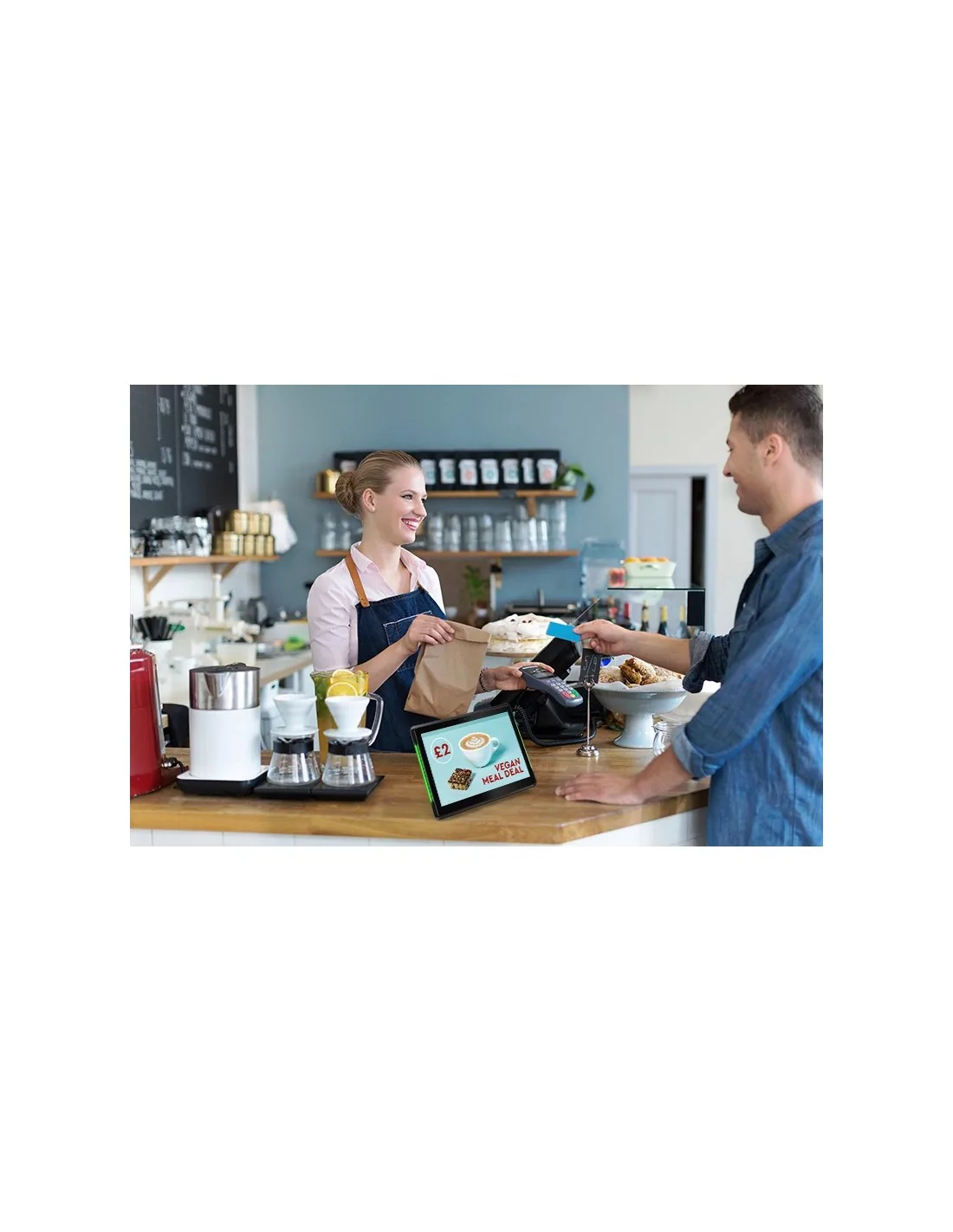

- Hospitality tills
- Product demos
Interactive customer journey
For touch projects, plan the user workflow, screen height, accessibility, software/app source, cleaning and support.
What to confirm before ordering
Screen size, viewing distance, orientation, mounting surface, power route, content source, network requirements and whether installation or training is required.
How Creative Systems helps
We can quote product supply, mounting, cabling, setup, content workflow guidance and multi-site rollout support.
Need help choosing the right Allsee display?
Send us the location, audience, preferred size, content type and whether the screen is indoor, window-facing, outdoor or interactive. We will recommend the right Allsee option and quote supply-only or full installation.
Request a project quoteFAQ
Can Creative Systems install this Allsee display?
Yes. We can supply, mount, cable and configure Allsee signage products across Ireland.
Can this be used as part of a multi-screen rollout?
Yes. We can help standardise model selection, mounting, content update process and rollout planning across multiple rooms or sites.
Should I order online or request a quote?
If you know exactly what you need, online ordering is fine. For installation, multiple screens, outdoor/window-facing use, touch, networking or content management, request a project quote first.
View the Allsee hub · View related guide · Compare Allsee displays
Technical specification by screen size
Allsee POS Advertising Display PCAP specifications
This product has multiple size combinations, so the technical details vary by selected model. Use the matching column below for dimensions, weight, power and mounting details.
Shared specification
| Resolution | 800 x 1280 |
|---|---|
| Aspect Ratio | 16:10 |
| Viewing Angle | 178° |
| Contrast Ratio | 800:1 |
| Colour | 16.7M |
| Brightness (cd/m²) | 450 |
| Operating Temperature | 0 °C to 50 °C |
| Operating Humidity | 10% to 80% |
| Power Consumption (W) | 13.5 |
| Input Voltage | 12V/2A |
| PoE Mode | 48V Passive |
| Media Formats | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG) |
| CPU | CPU Quad-core Cortex-A17 1.8GHz,RockChip RK3288 |
| GPU | GPU Mali-T764 |
| USB | USB3.0 HOST (x1) |
| Wi-Fi | 802.11b/g/n (Network version screen only) |
| OS | Android 8.1 |
Size-specific specification
| Specification | 10 Inch - POS10HD7 | 15 Inch - POS15HD7 |
|---|---|---|
| Size | 10" | 15" |
| Display Area | 216.96 x 135.6 | 345 x 194 |
| Unit Size (WxHxD mm) | 273.7 x 189.7 x 30.2 | 401.8 x 252.9 x 30.2 |
| Net Weight (kg) | 0.75kg | 1.4kg |
Important: choose your product size/combination above, then use the matching column here. Creative Systems can confirm the exact data sheet and mounting requirements before quotation or installation.
