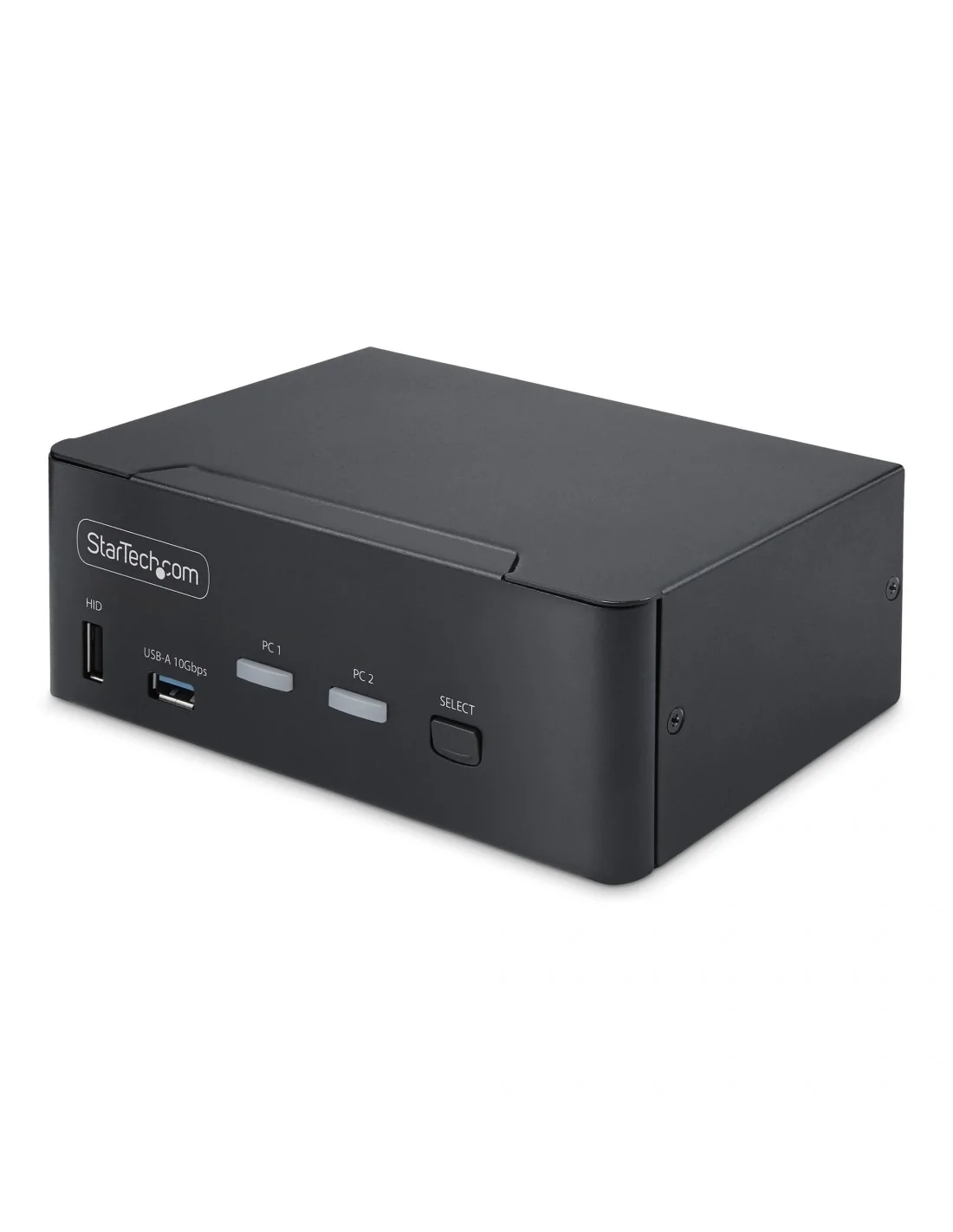

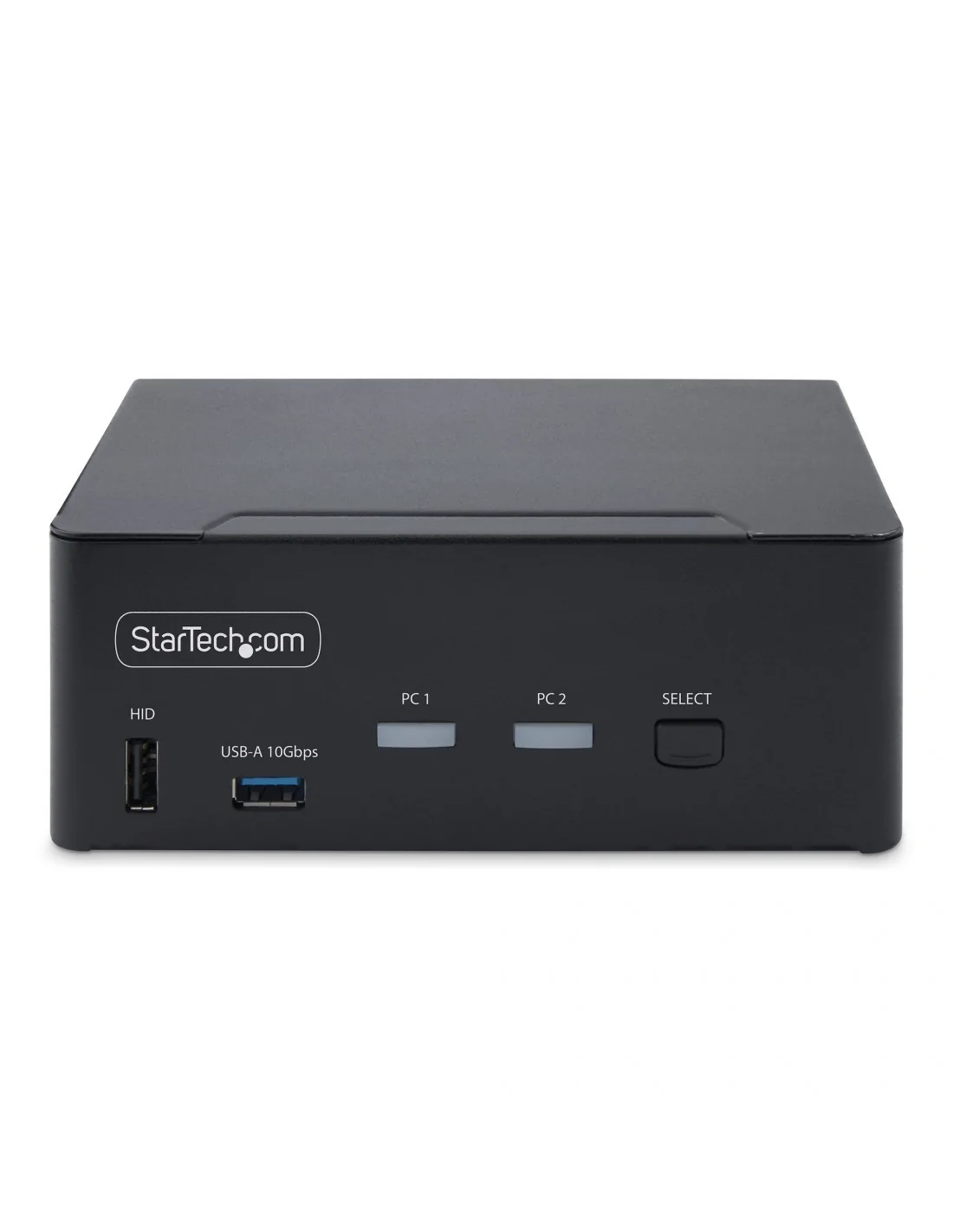

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB HID Ports, Hotk

Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers

This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.

Dual-8K 60Hz Displays & USB 10Gbps Hub Ports

This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.

Fast Switching with USB Emulation

USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.

Switching Options

This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

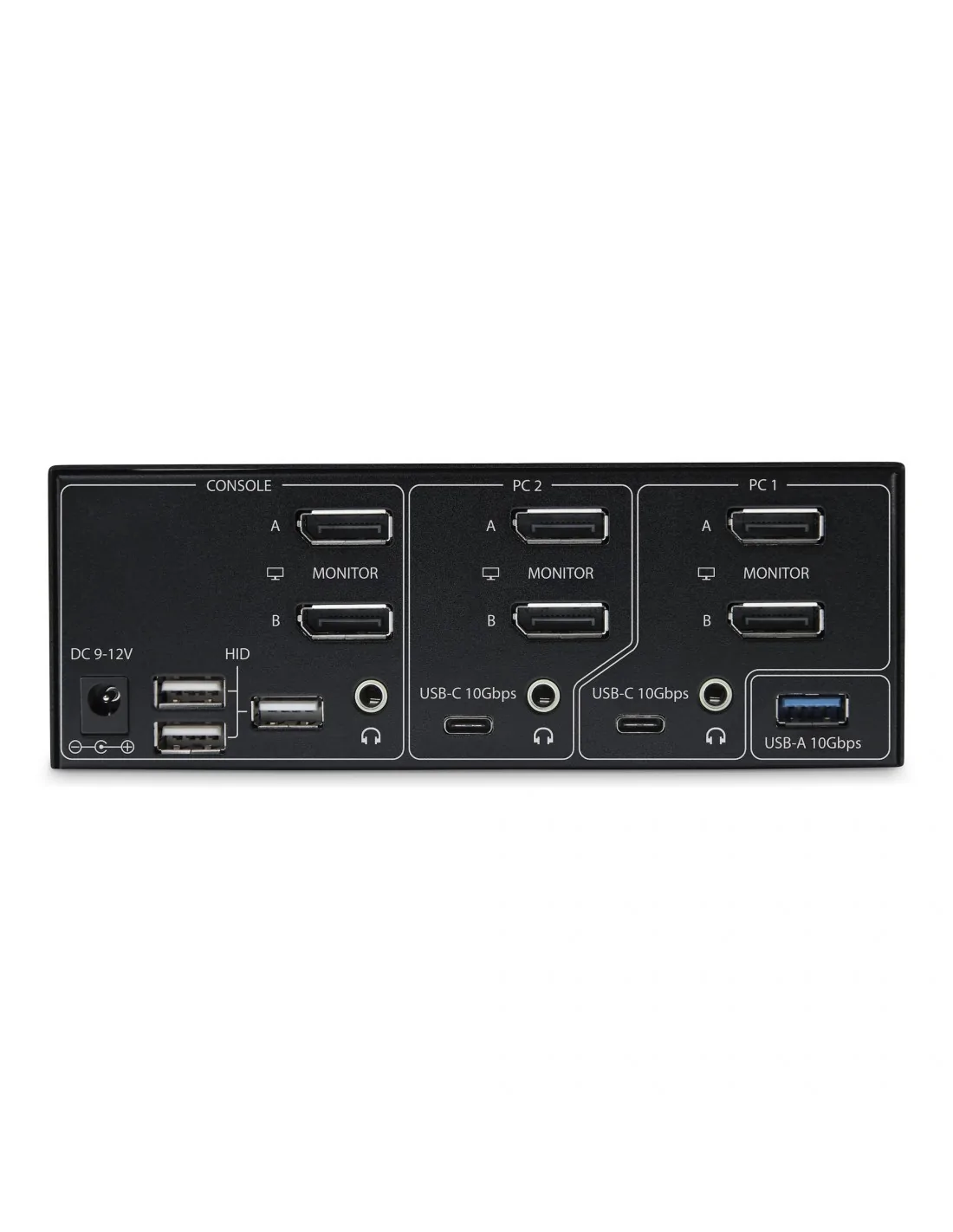

Ports & interfaces
Console USB ports quantity	3
Console ports	3.5mm headphone, DisplayPort, USB A
DisplayPorts quantity	4
DisplayPort version	1.4
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
USB 2.0 ports quantity	1
Headphone outputs	3
DC-in jack	Yes
USB hub	Yes
Console DisplayPorts ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Performance
Chipset	Genesys Logic - GL3590
Data transfer rate (max)	10 Gbit/s
HD type	8K Ultra HD
Maximum resolution	7680 x 4320 pixels
Scan interval	3,8,15,30 s
Number of users	1 user(s)
Number of displays supported	2
High Dynamic Range (HDR) supported	Yes
Maximum refresh rate	144 Hz
Technical details
Product colour	Black
Rack mounting	No
Scan interval	3,8,15,30 s
Push button	Yes
On Screen Display (OSD)	No
Number of users	1 user(s)
LED indicators	Yes
Hot keys	Yes
IP control	No
USB hub	Yes
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Design
Mean time between failures (MTBF)	168000 h
Product colour	Black
Rack mounting	No
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Housing material	Metal
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Input current	1 A
Output current	3 A
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
Power consumption (typical)	36 W
Input voltage	100 - 240 V
Video
HD type	8K Ultra HD
Maximum resolution	7680 x 4320 pixels
Sustainability
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	100 mm
Depth	160 mm
Height	60 mm
Weight	800 g
Package width	238 mm
Package depth	184 mm
Package height	89 mm
Package weight	1.4 kg
Packaging data
Package width	238 mm
Package depth	184 mm
Package height	89 mm
Package weight	1.4 kg
Packaging content
Rubber feet	Yes
Cables included	USB Type-A to USB Type-C
Quick installation guide	Yes
Other features
IP control	No
Push button	Yes
Hot keys	Yes
Logistics data
Master (outer) case width	260 mm
Master (outer) case length	395 mm
Master (outer) case height	300 mm
Products per master (outer) case	6 pc(s)
