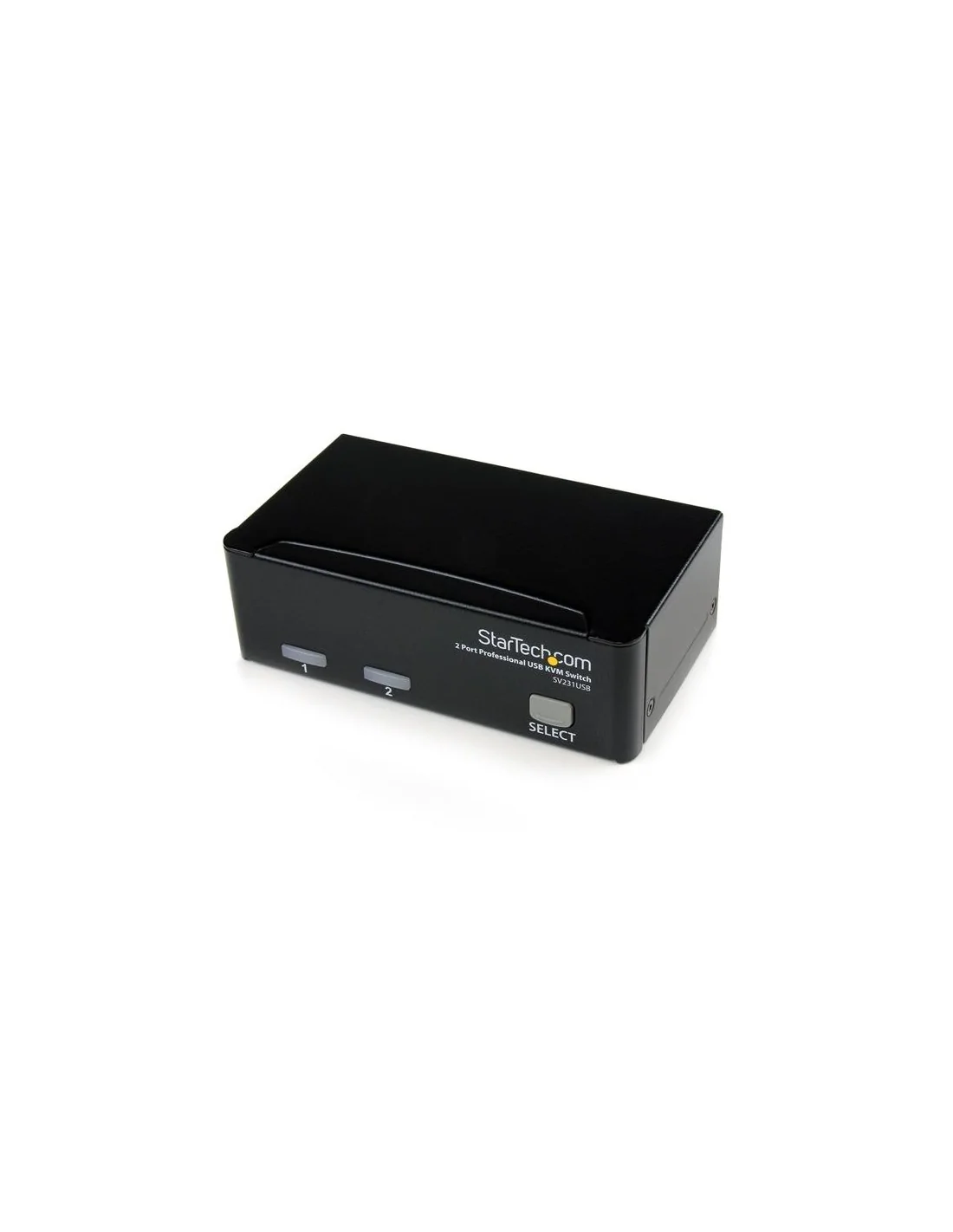

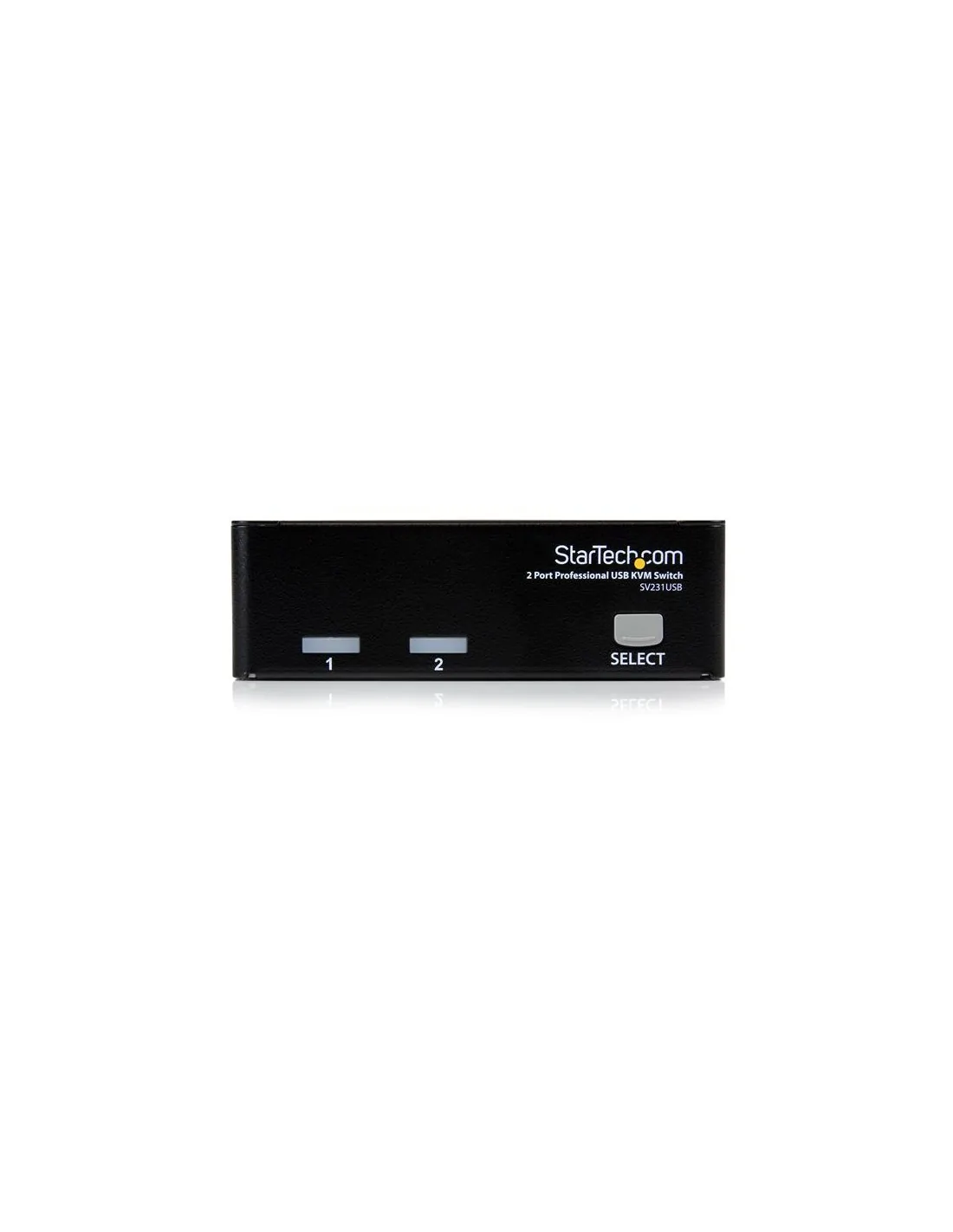

Control 2 USB VGA based computers with this complete KVM kit including cables
The SV231USBGB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of 2 computers from a single monitor/display and USB peripheral set (keyboard, mouse).

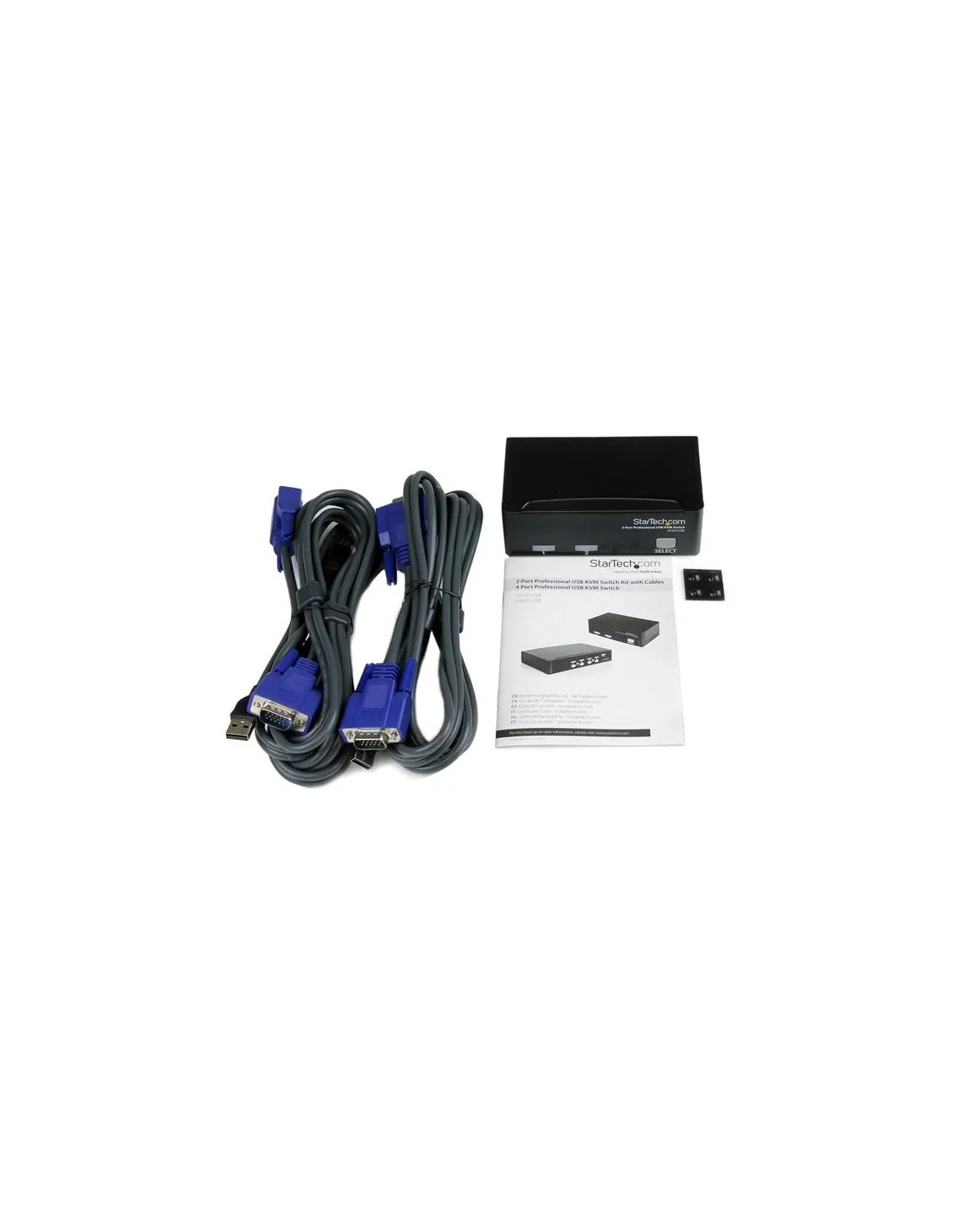

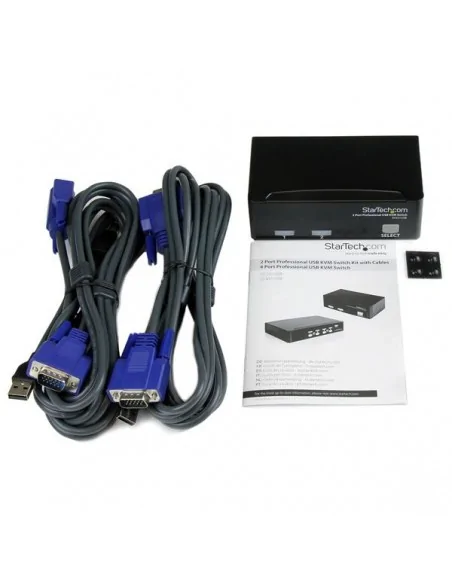

The 2 Port KVM includes 2 USB KVM cables, for a complete out-of-the-box solution saving you time and money. An integrated 3 port USB hub allows you to share USB peripherals between computers as though they were connected directly. A compact form factor and rear-port connections minimizes disruption to your workspace.
This OS independent KVM supports resolutions up to 1920x1440, and provides a smooth operating experience in mixed (Windows/Mac/Linux) environments.
The SV231USBGB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of 2 computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The 2 Port KVM includes 2 USB KVM cables, for a complete out-of-the-box solution saving you time and money. An integrated 3 port USB hub allows you to share USB peripherals between computers as though they were connected directly. A compact form factor and rear-port connections minimizes disruption to your workspace.
This OS independent KVM supports resolutions up to 1920x1440, and provides a smooth operating experience in mixed (Windows/Mac/Linux) environments.
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 3 |
| Console ports | USB A, VGA (D-Sub) |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | No |
| VGA (D-Sub) ports quantity | 3 |
| DC-in jack | Yes |
| Cable length | 1.8 m |
| Performance | |
| Daisy chain | No |
| Maximum resolution | 1920 x 1440 pixels |
| Scan interval | 3,8,15,30 s |
| Number of users | 1 user(s) |
| Maximum cable length | 5 m |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Scan interval | 3,8,15,30 s |
| On Screen Display (OSD) | No |
| Number of users | 1 user(s) |
| Hot keys | No |
| IP control | No |
| Design | |
| Mean time between failures (MTBF) | 111000 h |
| Maximum cable length | 5 m |
| Product colour | Black |
| Cable length | 1.8 m |
| Rack mounting | No |
| Hot keys | No |
| Certification | CE, FCC, TAA, REACH |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 0.4 A |
| Output current | 2 A |
| Power plug type | Type N |
| Compatible power plug types | EU, UK |
| Power consumption (typical) | 10 W |
| External power adapter | Yes |
| Input voltage | 100 - 240, 5 V |
| Video | |
| Maximum resolution | 1920 x 1440 pixels |
| Weight & dimensions | |
| Width | 124 mm |
| Depth | 70 mm |
| Height | 40 mm |
| Weight | 420 g |
| Package width | 235 mm |
| Package depth | 183 mm |
| Package height | 92 mm |
| Package weight | 1.5 kg |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 183 mm |
| Package height | 92 mm |
| Package weight | 1.5 kg |
| Packaging content | |
| Cables included | KVM |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Other features | |
| IP control | No |
| Hot keys | No |
| Logistics data | |
| Master (outer) case width | 317 mm |
| Master (outer) case length | 392 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
