What it is

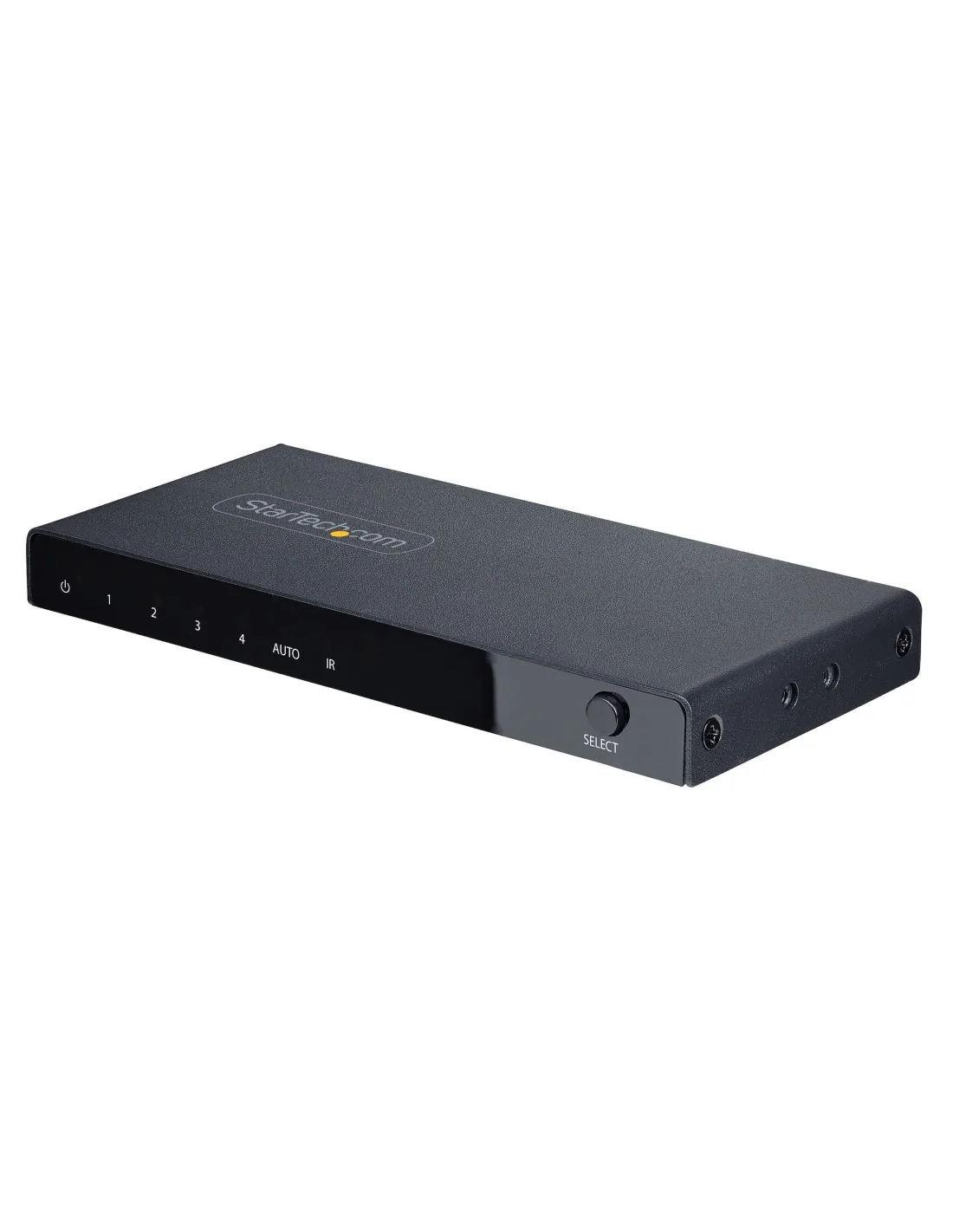

The StarTech.com 4PORT-8K-HDMI-SWITCH is a 4-port HDMI 2.1 switch supporting up to 8K resolution at 60Hz and 4K at 120Hz. It comes with a power adapter and remote control, allowing manual or automatic input switching.
Who it's for
This switch suits users needing to connect multiple HDMI sources to one display, especially with the latest high-resolution and high refresh rate devices like gaming consoles or media players.
Why it's good
Support for HDMI 2.1 means it handles high bandwidth, HDR10+, and 7.1 audio channels. The included remote and auto/manual switching add convenience. Micro-USB ports are available for firmware updates or configuration.
When to choose it
Choose this model if you have up to four HDMI 2.1 devices to manage on a single 8K or 4K display and want flexible control. If your display or sources don’t need 8K, simpler switches may suffice.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI version | 2.1 |
| HDMI ports quantity | 5 |
| Number of HDMI outputs | 1 |
| HDMI in | 4 |
| USB port type | Micro-USB |
| Features | |
| Audio output channels | 7.1 channels |
| Dolby technologies | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 4096 x 2160, 5120 x 1440, 7860 x 4320 |
| Plug and Play | Yes |
| Maximum operating distance | 5 m |
| Material | Metal |
| LED indicators | Yes |
| HDCP | Yes |
| External power adapter | Yes |
| Bandwidth | 48 Gbit/s |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | Yes |
| Power | |
| AC adapter input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 5 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 61 mm |
| Height | 14 mm |
| Depth | 136 mm |
| Weight | 150 g |
| Package width | 123 mm |
| Package height | 50 mm |
| Package depth | 179 mm |
| Package weight | 420 g |
| Technical details | |
| Audio output channels | 7.1 channels |
| Dolby technologies | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 61 mm |
| Height | 14 mm |
| Depth | 136 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 4096 x 2160, 5120 x 1440, 7860 x 4320 |
| Plug and Play | Yes |
| Maximum operating distance | 5 m |
| Material | Metal |
| LED indicators | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 5 |
| HDCP | Yes |
| Remote control included | Yes |
| External power adapter | Yes |
| Bandwidth | 48 Gbit/s |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Packaging data | |
| Package width | 123 mm |
| Package height | 50 mm |
| Package depth | 179 mm |
| Package weight | 420 g |
| Packaging content | |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | USB Type-A to Micro-USB Type-B |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 550 mm |
| Master (outer) case height | 280 mm |
Reach out to Creative Systems to confirm compatibility and availability before ordering.
