What it is

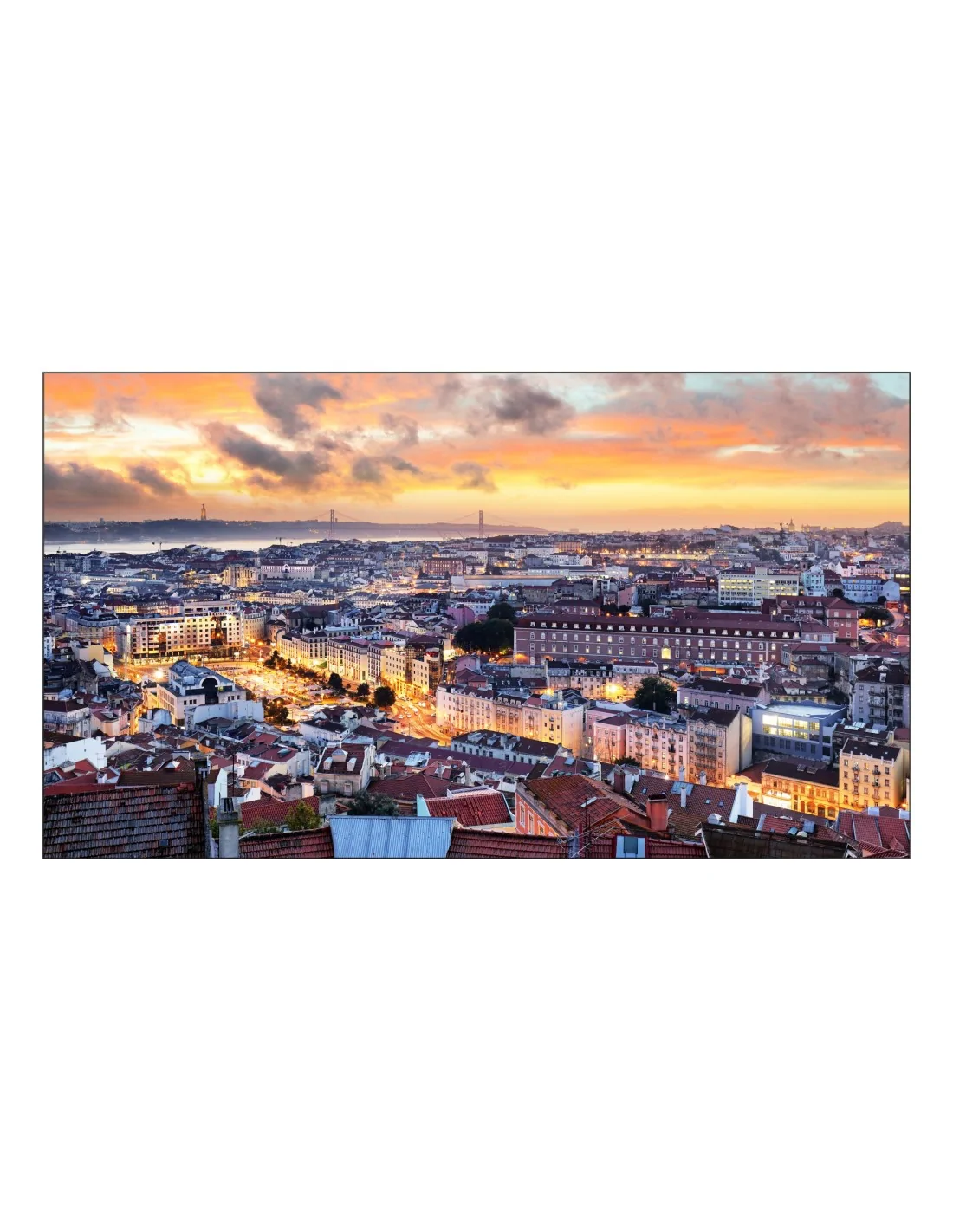

The Samsung VH55B-E is a 55-inch indoor video wall display featuring Full HD (1920 x 1080) resolution with an IPS panel for wide viewing angles. It uses LCD technology and supports a VESA 600 x 400 mount.
Who it's for
This display is intended for use in video wall installations in retail, corporate signage, or other environments requiring large, high-quality tiled displays.
Why it's good
The 1000:1 contrast ratio and IPS panel ensure consistent image quality from multiple angles, important for video walls. The relatively thin 70.4 mm depth and 250 W power usage suit commercial spaces.
When to choose it
Pick this model when building or expanding a video wall with 55-inch Full HD panels backed by a reliable brand like Samsung.
Specifications
| Display | |
|---|---|
| Display technology | LCD |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Panel type | IPS |
| Pixel pitch | 0.63 x 0.63 mm |
| Display brightness | 700 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Response time | 0.008 s |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Colour gamut | 72% |
| Operating hours (hours/days) | 24/7 |
| Haze rate | 28% |
| Contrast ratio (dynamic) | 140000:1 |
| Horizontal scan range | 57.3 - 70 kHz |
| Vertical scan range | 47 - 63 Hz |
| Design | |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (side) | 0.44 mm |
| Bezel width (bottom) | 1.3 mm |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| International Protection (IP) code | IP5X |
| Panel colour | Black |
| Product colour | Black |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| DVI port | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| RS-232C | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| HDCP version | 2.2 |
| HDCP | Yes |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| IR input ports quantity | 1 |
| Audio output | Yes |
| Audio input | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| Power | |
| Power consumption (typical) | 250 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 186 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Sustainability | |
| Certification | FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/NZS CISPR32:2015 CCC (China) : GB/T 9254-2008, GB 17625.1-2012 BSMI (Taiwan) : CNS 13438 |
| Weight & dimensions | |
| Width | 1212.2 mm |
| Depth | 70.4 mm |
| Height | 683 mm |
| Weight | 19.5 kg |
| Packaging data | |
| Package width | 1398 mm |
| Package depth | 257 mm |
| Package height | 844 mm |
| Package weight | 27.1 kg |
Contact Creative Systems to verify compatibility with your video wall system and installation requirements before ordering.
