What it is

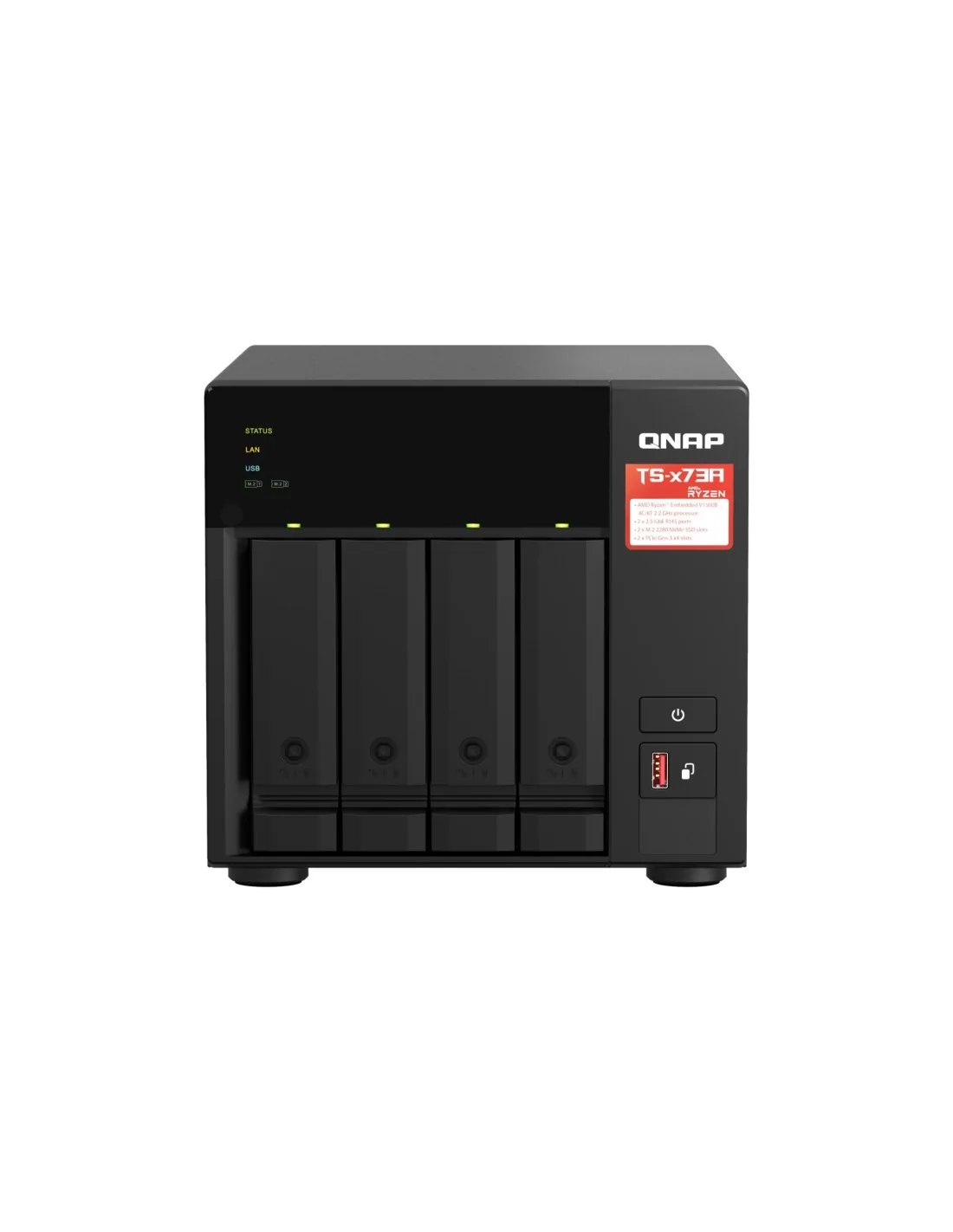

The QNAP TS-473A is a 4-bay tower NAS powered by an AMD Ryzen Embedded V1500B processor — a quad-core, 8-thread CPU running at 2.2GHz. It ships with 8GB of ECC DDR4 RAM (expandable to 64GB), dual 2.5GbE ports, two PCIe Gen 3 x4 expansion slots, and two M.2 slots for SSD caching or tiering. Drives are not included. It runs QNAP's QTS (Turbo System) operating system.
Who it's for
This is built for small and medium businesses that need a capable, expandable NAS — teams managing large volumes of files, running virtualisation workloads, or building a private cloud setup on-site. It suits IT administrators who want headroom to grow without replacing hardware early.
Why it's good
ECC memory is the standout spec here — it catches memory errors before they corrupt data, something most consumer NAS units skip. The dual PCIe slots let you add 10GbE networking or extra storage down the line. With RAID 0, 1, 5, 6, 10, and JBOD support, online RAID migration and expansion, and 256-bit AES encryption with FIPS 140-2, the TS-473A is built for environments where data integrity and uptime matter. At 21.4 dB, it's quiet enough for an office setting too.
When to choose it
Choose the TS-473A when you need a serious 4-bay NAS with room to expand — not a basic home device. If your workload involves virtualisation, iSCSI, or high-throughput file sharing across multiple users, this is the unit to spec. Pair it with the drives that suit your capacity and redundancy needs, or talk to us and we'll help you plan the right configuration.
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 4 |
| Storage drive interface | Serial ATA III |
| Storage drive capacity | 0 GB |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Supported storage drive interfaces | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of M.2 (M & B) slots | 2 |
| RAID rebuild | Yes |
| Number of system drives installed | 1 |
| System drive capacity | 5 GB |
| Processor | |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor manufacturer | AMD |
| Processor threads | 8 |
| On-board graphics card model | Not available |
| Processor frequency | 2.2 GHz |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Maximum RAM supported | 64 GB |
| Memory slots | 2 |
| Flash memory | 5000 MB |
| Memory form factor | SO-DIMM |
| ECC | Yes |
| Network | |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| DHCP server | Yes |
| Ports & interfaces | |
| USB port | Yes |
| PCI Express x4 (Gen 3.x) slots | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Concurrent connections | 2000 |
| Hard drive | |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Graphics | |
| On-board graphics card model | Not available |
| Design | |
| Fan diameter 2 | 6 cm |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Drive bay locking | Yes |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| LED indicators | LAN, Power, SSD, Status, USB |
| Chassis type | Tower |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Product colour | Black |
| Noise level | 21.4 dB |
| LED indicators | LAN, Power, SSD, Status, USB |
| Chassis type | Tower |
| Buzzer | Yes |
| Number of fans | 2 fan(s) |
| Harmonized System (HS) code | 84714100 |
| Warranty period | 2 year(s) |
| Performance | |
| Built-in FTP server | Yes |
| S.M.A.R.T. support | Yes |
| Password authentication | Yes |
| Disk scan | Yes |
| Browser supported | Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari |
| Remotely operated | Yes |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Linux operating systems supported | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, SSH, SSL/TLS |
| Reset button | Yes |
| Operating system installed | QNAP Turbo System |
| Noise level | 21.4 dB |
| Buzzer | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 2 fan(s) |
| Security | |
| Drive bay locking | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, SSH, SSL/TLS |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Linux operating systems supported | Yes |
| Operating system installed | QNAP Turbo System |
| Management features | |
| On/off switch | Yes |
| Reset button | Yes |
| Power | |
| Output current | 3.5 A |
| Power consumption (HDD standby) | 19.576 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50-60 Hz |
| Power consumption (typical) | 29.792 W |
| Number of power supply units | 1 |
| Weight & dimensions | |
| Package width | 255 mm |
| Package depth | 383 mm |
| Package height | 345 mm |
| Width | 199.3 mm |
| Depth | 279.6 mm |
| Height | 188.2 mm |
| Weight | 5.03 kg |
| Package weight | 6.12 kg |
| Packaging content | |
| Number of screws | 24 |
| Package type | Box |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Packaging data | |
| Package width | 255 mm |
| Package depth | 383 mm |
| Package height | 345 mm |
| Package weight | 6.12 kg |
| Cables included | AC, LAN (RJ-45) |
| Other features | |
| Warranty period | 2 year(s) |
