What it is

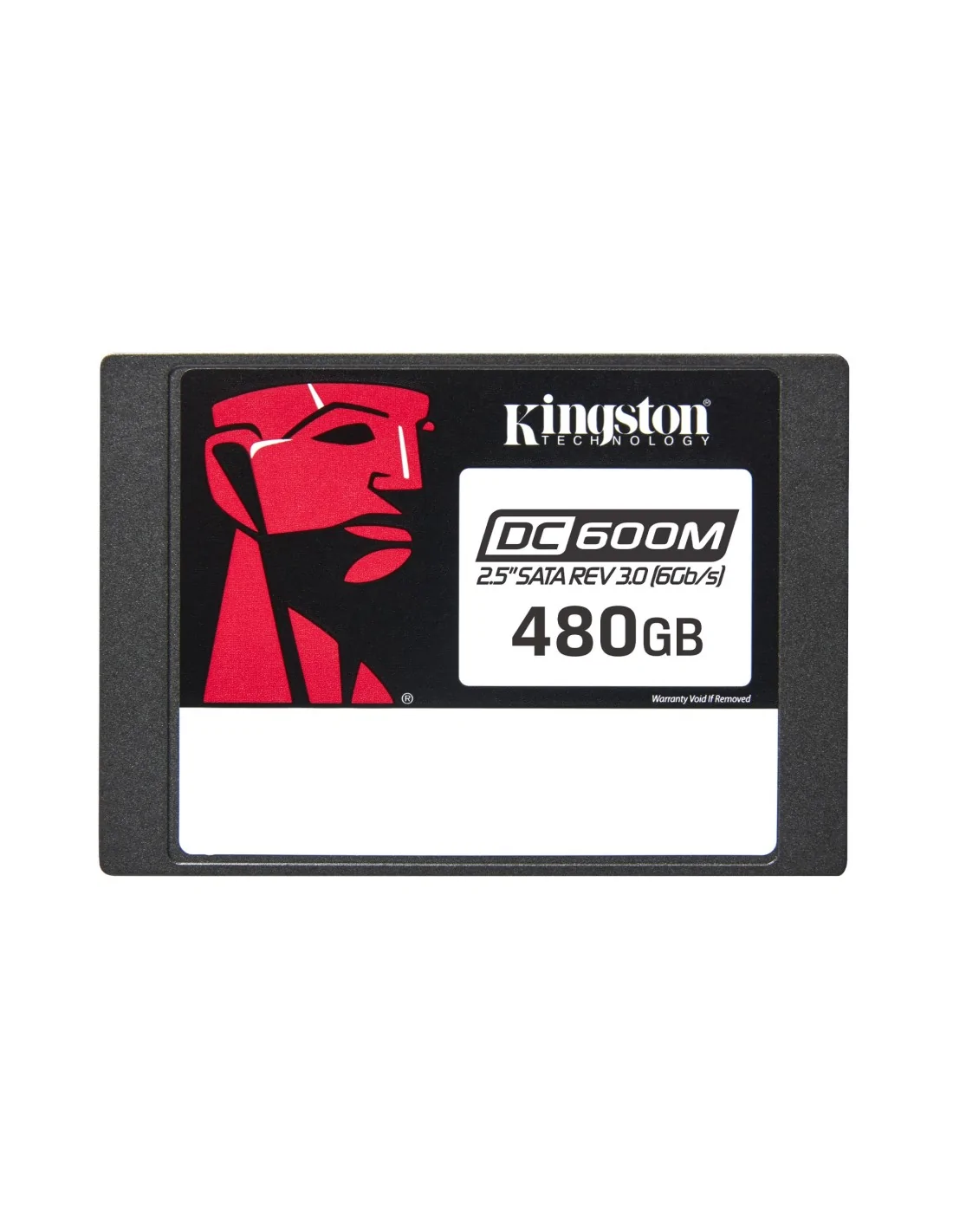

The Kingston DC600M 480GB is a 2.5-inch enterprise SATA SSD optimized for mixed-use scenarios, using 3D TLC NAND technology.
Who it's for
Ideal for organisations needing a smaller capacity SSD for upgrades or replacements in servers or storage systems requiring reliable and consistent performance.
Why it's good
It provides up to 560 MB/s read speed, 470 MB/s write speed, and strong random IOPS—94,000 read and 41,000 write—supporting demanding business workloads.
When to choose it
Choose this SSD if your storage demands fit within 480GB and you want a proven enterprise SATA solution without moving to newer interface types.
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 480 GB |
| Memory type | 3D TLC NAND |
| Data transmission | |
| Read speed | 560 MB/s |
| Write speed | 470 MB/s |
| Random write (4KB) | 41000 IOPS |
| Random read (4KB) | 94000 IOPS |
| Write latency | 30 µs |
| Read latency | 200 µs |
| Data transfer rate | 6 Gbit/s |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Features | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| TBW rating | 876 |
| SSD capacity | 480 GB |
| Read speed | 560 MB/s |
| Write speed | 470 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 41000 IOPS |
| Random read (4KB) | 94000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 30 µs |
| Read latency | 200 µs |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| SSD form factor | 2.5" |
| H/W PLP function | Yes |
| Target workload | Mixed Use (MU) |
| Hot-Plug support | Yes |
| Use conditions | Server/Enterprise |
| Power | |
| Power consumption (average) | 1.45 W |
| Power consumption (write) | 3.6 W |
| Power consumption (read) | 1.6 W |
| Power consumption (idle) | 1.3 W |
| Performance | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| TBW rating | 876 |
| SSD capacity | 480 GB |
| Read speed | 560 MB/s |
| Write speed | 470 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 41000 IOPS |
| Random read (4KB) | 94000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 30 µs |
| Read latency | 200 µs |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Component for | Server/workstation |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 69.8 mm |
| Weight | 66 g |
| Height | 7 mm |
| Depth | 100.1 mm |
| Package width | 129.5 mm |
| Package depth | 9.14 mm |
| Package height | 184.2 mm |
| Package weight | 88.19 g |
| Packaging data | |
| Package width | 129.5 mm |
| Package depth | 9.14 mm |
| Package height | 184.2 mm |
| Package weight | 88.19 g |
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case height | 69.8 mm |
| Master (outer) case gross weight | 959.95 g |
| Products per master (outer) case | 10 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
| Technical details | |
| Interface | Serial ATA III |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
| Hardware encryption | No |
| Country of origin | China, Taiwan |
| SSD form factor | 2.5" |
| Logistics data | |
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case height | 69.8 mm |
| Master (outer) case gross weight | 959.95 g |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China, Taiwan |
| Other features | |
| Country of origin | China, Taiwan |
Contact Creative Systems for advice on sizing and ensuring this SSD fits your existing hardware.
