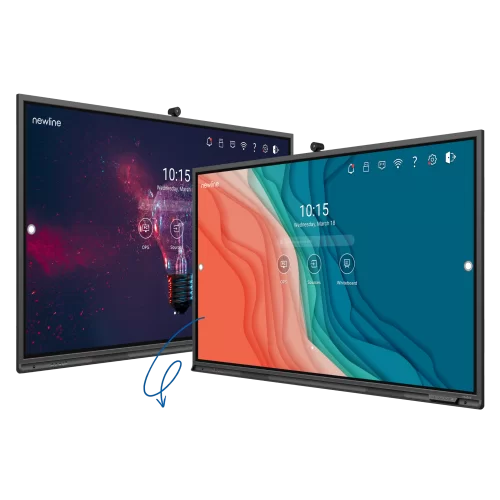

Newline Elara Interactive Display

NEWLINE INTERACTIVE ECOSYSTEM

The newly renewed Newline Interactive Ecosystem is full of software that helps you use your interactive display. Whether it’s setting up your video conference superfast, using concept mapping to brainstorm, connecting your device, sharing your screen, or broadcasting!

4K Android 11, IR Touchscreen, Anti glare & anti microbrial glass, 20 Point MultiTouch, 4GB RAM, 64 GB ROM, 3 years deinstall reinstall warranty (5 year for Public Sector), optional OPS PC, Newline CAST, Broadcast, Launch Control & Display Management Software with powered USB-C + 1 x USB-C, 3 x HDMi, 1 x HDMi out,  Audio 2 x 20W & 1 x 15W SUB, RJ45 RS232 -

Includes built-in 4K Camera and 8 Mic Array for Video Conferencing

This high-end Newline interactive display carries every experience you could want in your workspace; faster, enhanced sound, superior touch and writing experience due to optical bonding,

a modular camera and built-in microphone making the Newline Elara a true hybrid solution. The extra wide viewing angle ensures everyone in the room can benefit from the crystalclear 4K image and vibrant colours.

MODEL

Elara 65"

TT-6522Q

Elara 75"

TT-7522Q

FRONT I/O

USB Type-C (Powered 100 W) 1

HDMI IN 2.0

1

Elara 86"

TT-8622Q

USB Type-B (Touch)

1

USB 3.0 Type-A

1

PANEL

Backlight

Direct LED ( Wide color gamut +

Anti blue light)

Glass Surface

Anti-Glare+Anti-Fingerprint,

+ Antimicrobial Tempered Glass

Bonding Technology

Microphone In

1

REAR I/O

HDMI IN 2.0

2

DisplayPort 1.2

1

Certified Optical Bonding

USB Type-B (Touch)

3

Display Area

65" 4K: 1428 x 803 mm

75" 4K: 1650 x 928 mm

86" 4K: 1895 x 1066 mm

Display Ratio

USB 3.0 Type-C

1

USB 3.0 Type-A

2

USB 3.0 Type-A to Android

1

16:09

HDMI OUT 2.0

1

Resolution

3840 x 2160 (4K)

RS232

1

Colours

1,07 Billion

RJ45 (Gigabit)

In x 1 / Out x 1

Brightness

400 cd/m²

OPS Slot

1

Contrast Ratio

5000:1

SPDIF

1

Response Time

6 ms

Audio Line Out

1

Viewing Angle

178º

WIFI Module Slot

1

Display Life Time

≥50000 hours

SDM-S Slot

1

Transparency

>88%

Power Out Connect (180 W)

1

Haze

2 %~5%

SMART SYSTEM

POWER CONSUMPTION

Standard mode

65" 4K: 133 W

75" 4K: 150 W

86" 4K: 168 W

Standby Mode

SoC Chipset

Amlogic A311D2 octa-core

processor 4 x Cortex-A73 at 2,2

Ghz, 4 x Corte x-A53 at 2,0 Ghz

RAM

8 GB (2 x DDR4)

<0,5 W

Storage

128 GB

Operating System

Android 11

TOUCH

Touch Technology

Formats Support For Image

JPEG, BMP, PNG

Stellar Touch Technology

Touch Surface Hardness

Formats Support For Video

7H

MPEG1, MPEG2, MPEG4,

SorensonH.263,H.263,H.264,

Touch Points

40 Windows / 20 Android

Touch Screen Writing Tools

Passive pen, Finger, Fist

Accuracy

±1

Formats Support For Audio

MPEG1/2 @LAYER1; @LAYER2;

@LAYER3, EAC3, ACC-LC,

HEAAC,VORBIS,LPCM, IMAADPCM,MS-ADPCM,G711

A/MULAW,LBR(COOK),FLAC

Proximity

Sensor

SPEAKER

Speaker Position

Front Facing

2

Speaker Rated Impedance

6 Ω

Camera

1

Speaker Freq.Response

250 Hz-20 KHz  SPL -10 dB

Wi-Fi 6 + Bluetooth 5.2 Module Integrated (Replaceable)

Output S.P.L.

80±3 dB

Speaker Max.Power Output

20 W x 2

EXTRA FIRMWARE FEATURES

Lan control

✓

Wake on Lan

✓

CEC

✓

SUBWOOFER

Speaker Position

Rear side

Multiuser profile / User Profiles: 6 ✓

Speaker Rated Impedance

4 Ω

Setting Menu Admin Mode

Speaker Freq.Response

✓

20 Hz-20 KHz  SPL -10 dB

Output S.P.L.

77±2 dB

Speaker Max.Power Output

TRANSPORTATION / STORAGE

Outline Dimensions

(Excl. wall mount)

65" 4K: 1513 x 926 x 116 mm

75" 4K: 1735 x 1050 x 116 mm

86" 4K: 1981 x 1190 x 116 mm

15 W x 1

MICROPHONE

Mic Possition

8 Microphone Array Upper Front

Pick Up Distance

Net Weight

65" 4K: 39 Kg

75" 4K: 50 Kg

86" 4K: 65 Kg

8 m

Mic Performance

Echo cancellation, Beamforming,

Noise Reduction

VESA

65" 4K: 600 x 400 mm

75" 4K: 800 x 400 mm

86" 4K: 800 x 400 mm

CAMERA MODULE

Camera Resolution

4K

Field of View

120° FOV Lenses

IR Camera

352 x 352 / 15 fps

Camera Tile Range

 15°
