What it is

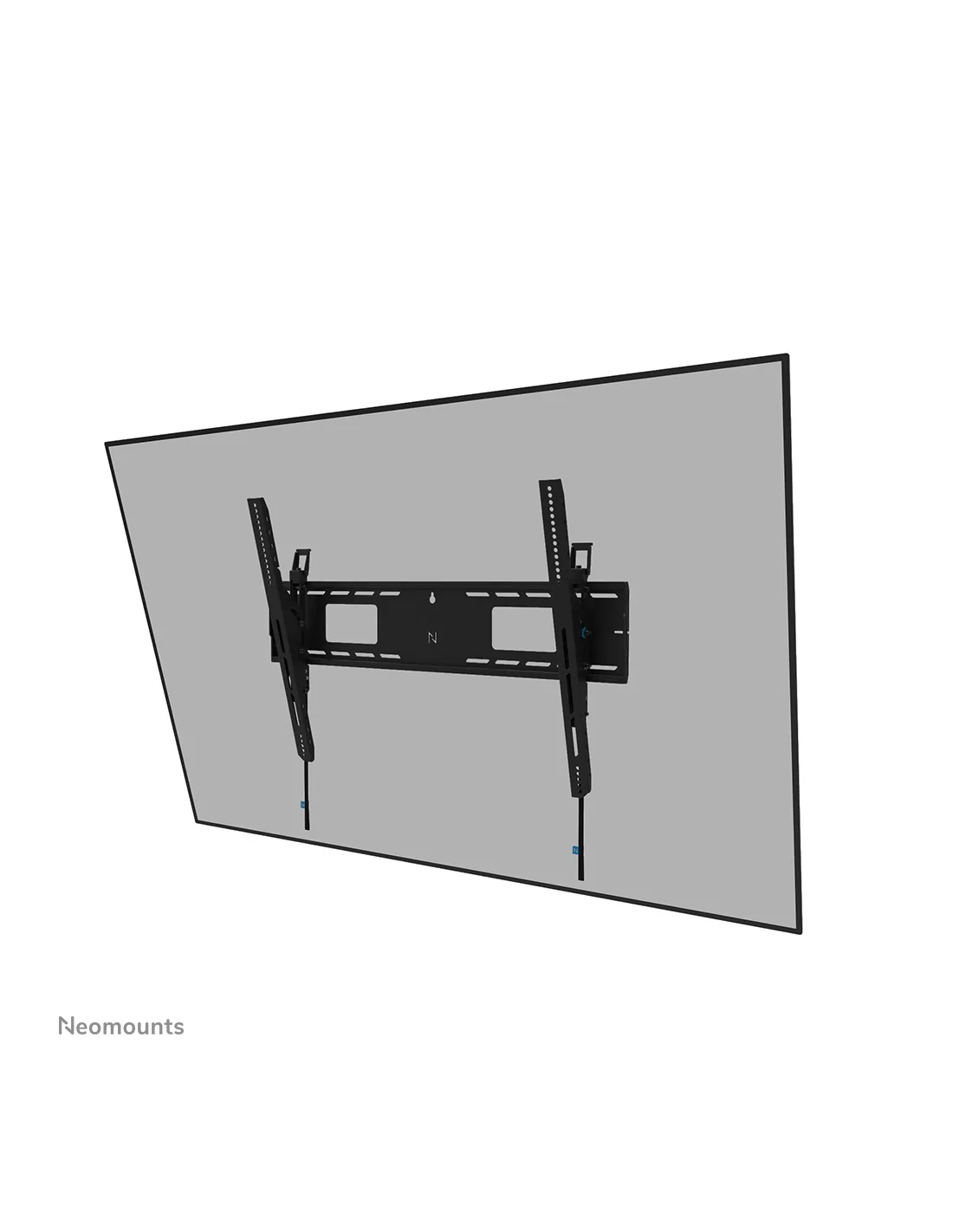

The Neomounts WL35-750BL18 is a heavy-duty wall mount designed for large screens from 55 to 98 inches, supporting up to 125 kg. It features tilt adjustment, lockable brackets (lock not included), and TÜV certification for safety.
Who it's for
This mount suits environments requiring robust, secure installation of large displays, such as conference rooms, digital signage, or retail screens. It’s ideal if your screen matches VESA standards between 100x100 and 800x600 mm.
Why it's good
Aside from solid load capacity, it offers level adjustment and a tilt guard, ensuring screens are positioned properly and securely. The fast installation system helps reduce setup time, while TÜV certification confirms tested reliability.
When to choose it
Opt for this wall mount when you have a heavy or large display within the specified size and weight ranges and want a tilt function with extra security features. Make sure the VESA pattern on your display is compatible before ordering.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 125 kg |
| Mounting type | Wall |
| Minimum screen size | 139.7 cm (55") |
| Panel mounting interface | 100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600 |
| Number of displays supported | 1 |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 800 x 600 mm |
| Maximum screen size | 2.49 m (98") |
| Maximum weight capacity | 125 kg |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Cable management | Yes |
| Tilt angle range | -15 - 15° |
| Distance to the wall (max) | 9.3 cm |
| Tilt adjustment | Yes |
| Technical details | |
| Cable management | Yes |
| Number of displays supported | 1 |
| Distance to the wall (max) | 9.3 cm |
| Product colour | Black |
| Mounting type | Wall |
| Country of origin | China |
| Master (outer) case net weight | 20.4 kg |
| Lockable | Padlock not included |
| Design | |
| Cable management | Yes |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 886 mm |
| Depth | 93 mm |
| Height | 684 mm |
| Weight | 6.8 kg |
| Depth (max) | 9.3 cm |
| Packaging data | |
| Package width | 928 mm |
| Package depth | 102 mm |
| Package height | 209 mm |
| Package weight | 8.4 kg |
| Logistics data | |
| Master (outer) case width | 946 mm |
| Master (outer) case length | 227 mm |
| Master (outer) case height | 324 mm |
| Master (outer) case gross weight | 26.3 kg |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case net weight | 20.4 kg |
| Products per pallet (EU) | 39 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Wall |
| Country of origin | China |
Contact Creative Systems for advice on compatibility, stock, or installation options before purchasing.
