What it is

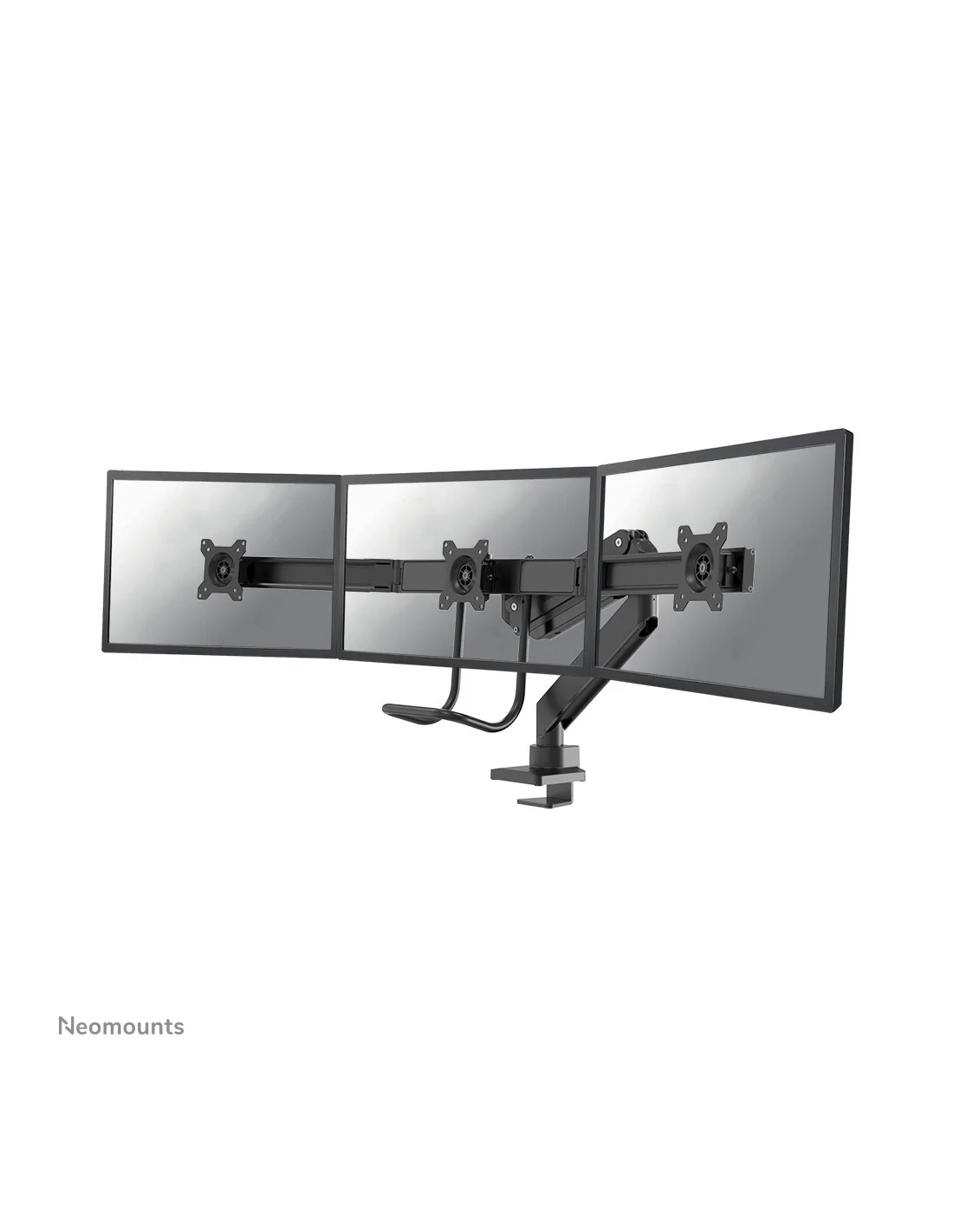

The Neomounts NM-D775DX3BLACK is a triple monitor arm with a gas spring mechanism and Topfix mounting system. It suits three displays each from 17" to 27", supporting up to 6 kg per screen. It offers a 180° stop feature to prevent over-rotation, finished in black for integration into professional setups.
Who it's for
This arm is designed for users needing three monitors on a single desk with easy adjustability, such as traders, developers, or multitasking professionals. It fits desks 1 to 4.5 cm thick and supports standard VESA mounts up to 100x100mm.
Why it's good
Gas spring adjustment allows smooth positioning of each screen, while the 180° stop protects cables and screens from damage. Its Topfix system simplifies installation and removal without tools. This arm maximises desk space by lifting displays off the surface.
When to choose it
Choose this arm if you want a robust triple monitor setup with individual height and tilt adjustment, within moderate weight limits. It’s a practical choice where three displays need flexible positioning but cable safety and secure mounting are priorities.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 6 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Number of displays supported | 3 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity | 6 kg |
| Maximum screen size | 68.6 cm (27") |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 630 mm |
| Height adjustment | Yes |
| Height adjustment range | 270 - 600 mm |
| Swivel angle range | 0 - 360° |
| Swivel angle | 360° |
| Tilt angle range | 0 - 20° |
| Angle of rotation | 360° |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Aluminium |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 1 kg |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Height | 600 mm |
| Weight | 8.58 kg |
| Package width | 320 mm |
| Package depth | 145 mm |
| Package height | 623 mm |
| Package weight | 10.2 kg |
| Package net weight | 10.2 kg |
| Packaging data | |
| Package width | 320 mm |
| Package depth | 145 mm |
| Package height | 623 mm |
| Package weight | 10.2 kg |
| Package net weight | 10.2 kg |
| Other features | |
| Minimum weight | 1 kg |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 640 mm |
| Master (outer) case gross weight | 10.2 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 30 pc(s) |
| Master (outer) case net weight | 10.2 kg |
| Harmonized System (HS) code | 7616991099 |
Check your monitor sizes, weight, and desk thickness to confirm compatibility. Contact us for help matching this arm to your setup or exploring options.
