What it is

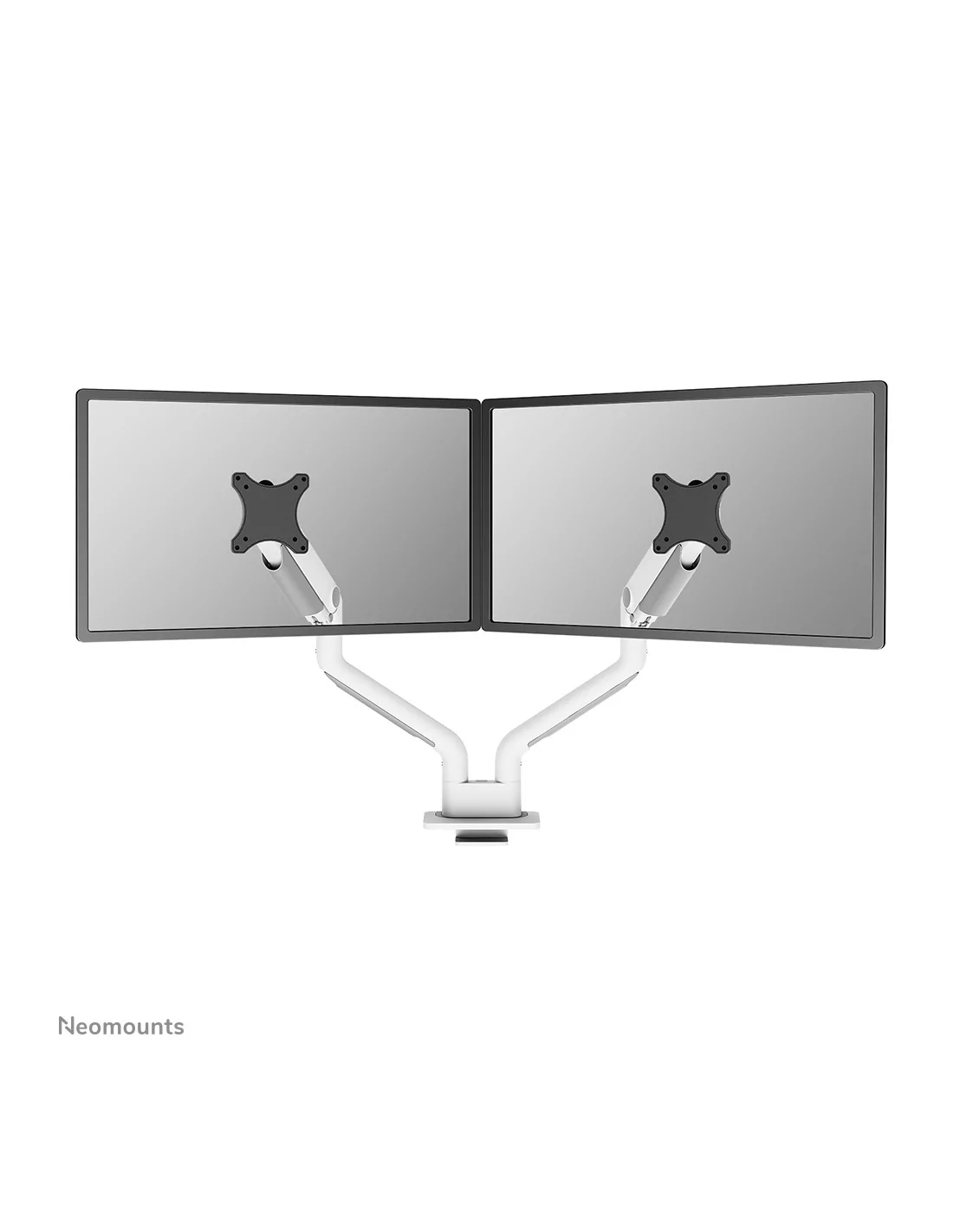

This is the white version of the Neomounts DS70S-950 gas spring dual monitor arm for screens between 17 and 35 inches.
Who it's for
Suitable for users wanting a white monitor arm that supports heavier monitors up to 18 kg each (15 kg for curved) and fits desks with thickness between 1 and 5.5 cm.
Why it's good
It has a convenient Topfix clamp, gas spring assisted movement, and a 180° stop feature for reliable positioning. VESA mounting supports 75x75 and 100x100 mm patterns.
When to choose it
Select this model if you need a neutral white colour for your workstation without compromising on flexibility and support for larger monitors.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 18 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5.5 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 11.9 cm |
| Distance to the wall (max) | 65.6 cm |
| Maximum weight capacity | 18 kg |
| Maximum screen size | 88.9 cm (35") |
| Clamp mount desk thickness (max) | 5 cm |
| Grommet mount desk thickness (max) | 5.5 cm |
| Maximum weight capacity (per curved/ultra-wide display) | 15 kg |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 88 - 625 mm |
| Height adjustment | Yes |
| Height adjustment range | 202 - 522 mm |
| Pivot angle | -180 - 180° |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -90 - 90° |
| Angle of rotation | 360° |
| Number of arms | 2 |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Width adjustment | 115.9 cm |
| Design | |
| Easy to install | Yes |
| Product colour | White |
| Housing material | Aluminium |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 1 kg |
| Distance to the wall (min) | 11.9 cm |
| Distance to the wall (max) | 65.6 cm |
| Product colour | White |
| Width adjustment range | 0 - 1159 mm |
| Cable management | Yes |
| Warranty period | 10 year(s) |
| Weight & dimensions | |
| Width | 186 mm |
| Depth | 656 mm |
| Height | 579 mm |
| Weight | 6.98 kg |
| Package width | 410 mm |
| Package depth | 124 mm |
| Package height | 496 mm |
| Package type | Box |
| Package weight | 7.9 kg |
| Package net weight | 7.9 kg |
| Packaging data | |
| Package width | 410 mm |
| Package depth | 124 mm |
| Package height | 496 mm |
| Package type | Box |
| Package weight | 7.9 kg |
| Package net weight | 7.9 kg |
| Other features | |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 1159 mm |
| Warranty period | 10 year(s) |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 505 mm |
| Master (outer) case gross weight | 16.3 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 48 pc(s) |
| Master (outer) case net weight | 14 kg |
| Harmonized System (HS) code | 7616991099 |
Get in touch with Creative Systems to verify if this white arm matches your monitors and desk setup.
