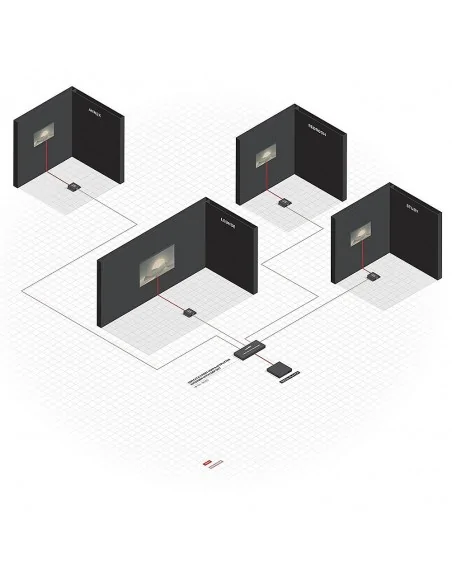

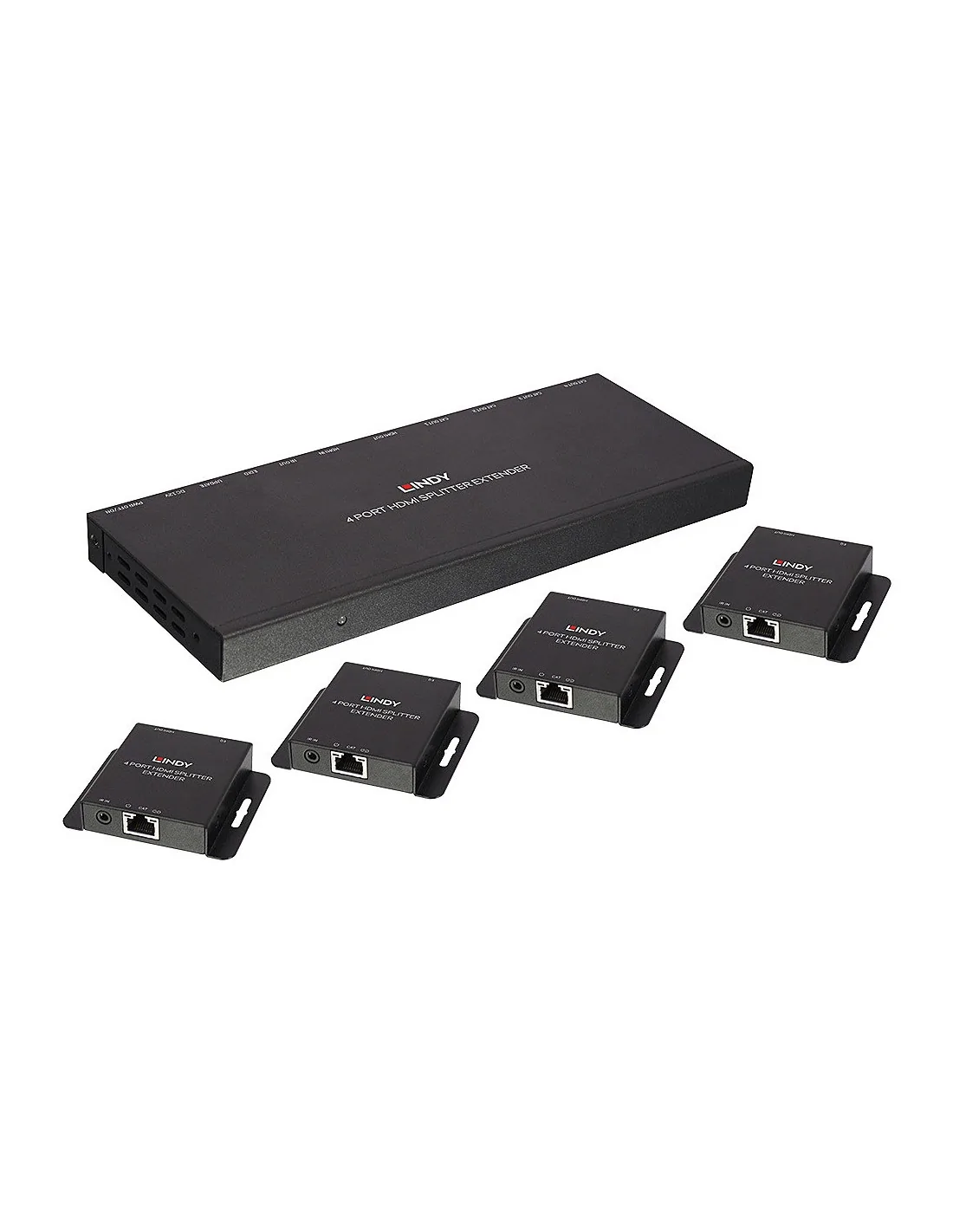

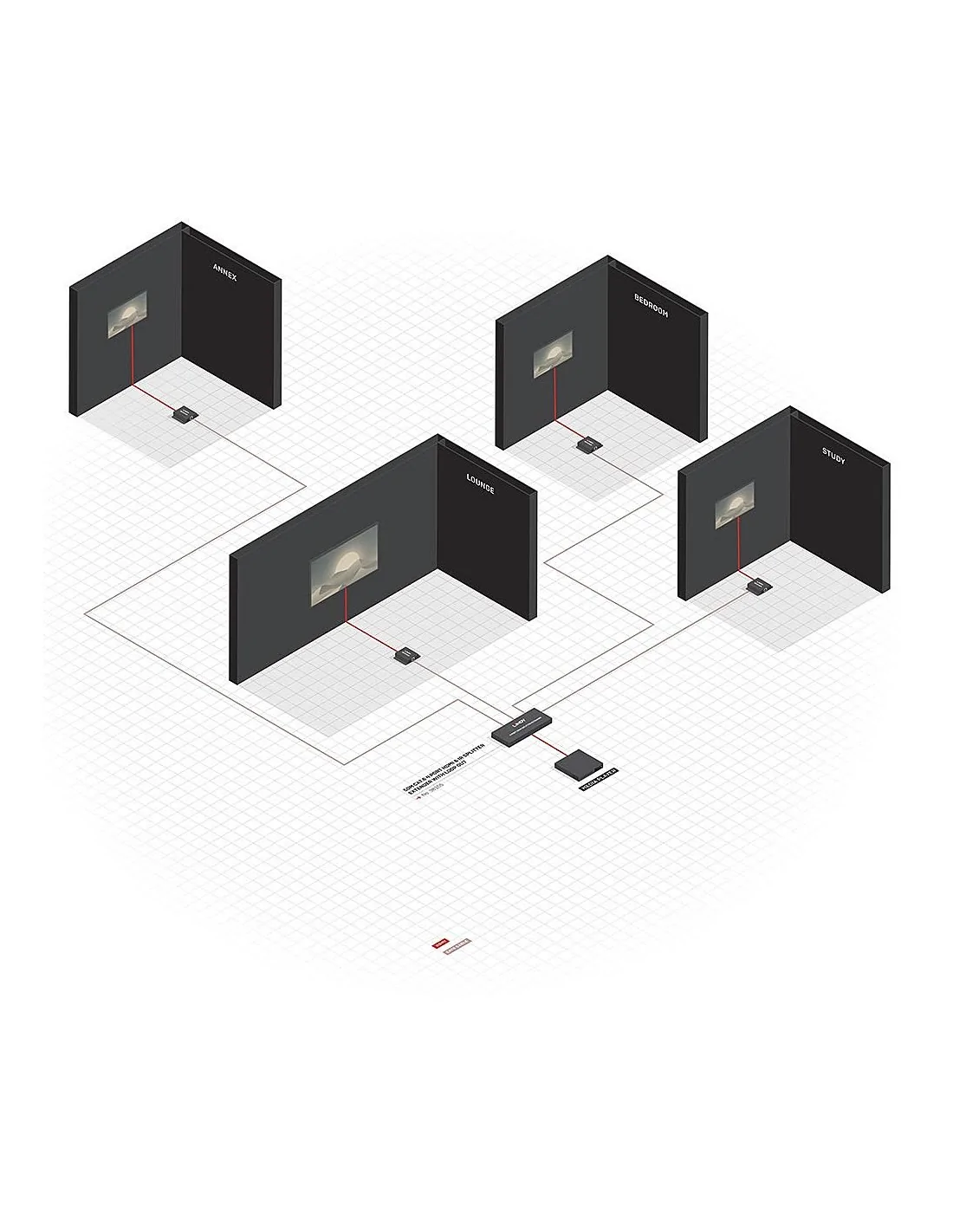

The Lindy 70m Cat.6 4 Port HDMI and IR Splitter Extender is a simple to use plug and play solution that allows users to extend an HDMI signal up to 70m and then distribute that signal to four displays using low cost Cat.6 UUTP cable (not included). For added convenience IR signals (20-60kHz) can also be extended using the supplied IR receiver and emitter cables.
Supporting resolutions up to 4K30, including 1080p 3D, the Splitter Extender is designed for use in AV and digital signage applications for a variety of settings such as home, education, business, retail and healthcare.
An integrated HDMI loop-through output on the transmitter unit enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone. For larger installations, the HDMI loop-through port can also be used to cascade up to 3 transmitters allowing up to 12 displays to be connected to a single source.
The HDMI loop-through port also allows the Splitter Extender to clone the EDID of a connected display. An integrated EDID emulation system provides 9 EDID presets for ultimate compatibility with a variety of EDID enabled devices.
Power over Cable (PoC) functionality provides power for the complete installation using only a single power supply connected to the transmitter - a perfect solution for retro fit installations where receivers may be located away from a mains power supply. The power supply is connected via a screw type DC jack, providing a secure and reliable connection, ideal for installations where accidental disconnections could occur. For added convenience the Splitter Extender's slim design and integrated mounting brackets make it easy to install in limited spaces behind modern flat screen displays.
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
Supporting resolutions up to 4K30, including 1080p 3D, the Splitter Extender is designed for use in AV and digital signage applications for a variety of settings such as home, education, business, retail and healthcare.
An integrated HDMI loop-through output on the transmitter unit enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone. For larger installations, the HDMI loop-through port can also be used to cascade up to 3 transmitters allowing up to 12 displays to be connected to a single source.
The HDMI loop-through port also allows the Splitter Extender to clone the EDID of a connected display. An integrated EDID emulation system provides 9 EDID presets for ultimate compatibility with a variety of EDID enabled devices.
Power over Cable (PoC) functionality provides power for the complete installation using only a single power supply connected to the transmitter - a perfect solution for retro fit installations where receivers may be located away from a mains power supply. The power supply is connected via a screw type DC jack, providing a secure and reliable connection, ideal for installations where accidental disconnections could occur. For added convenience the Splitter Extender's slim design and integrated mounting brackets make it easy to install in limited spaces behind modern flat screen displays.
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 50 m |
| Cable types supported | Cat6 |
| Maximum digital resolution | 1920 x 1080 pixels |
| Product colour | Black |
| Certification | CE, FCC, RoHS, REACH |
| LED indicators | Yes |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Number of displays supported | 4 |
| RJ-45 ports quantity (transmitter) | 4 |

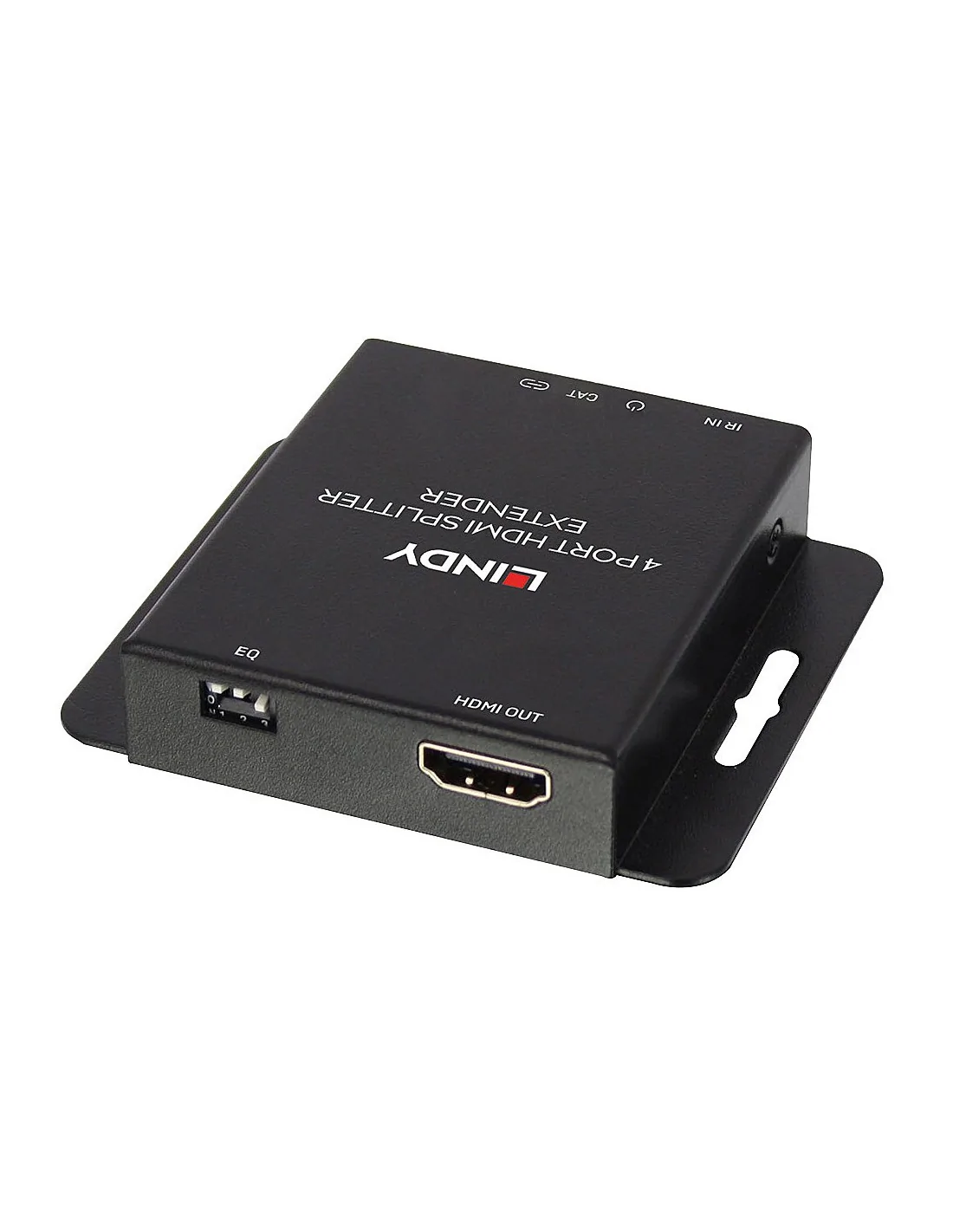

| Receiver | |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2.5 A |
| Weight & dimensions | |
| Transmitter width | 11.8 cm |
| Transmitter depth | 25 cm |
| Transmitter height | 3.2 cm |
| Transmitter weight | 443 g |
| Receiver width | 4.9 cm |
| Receiver depth | 8.1 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 131 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Packaging data | |
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
