What it is

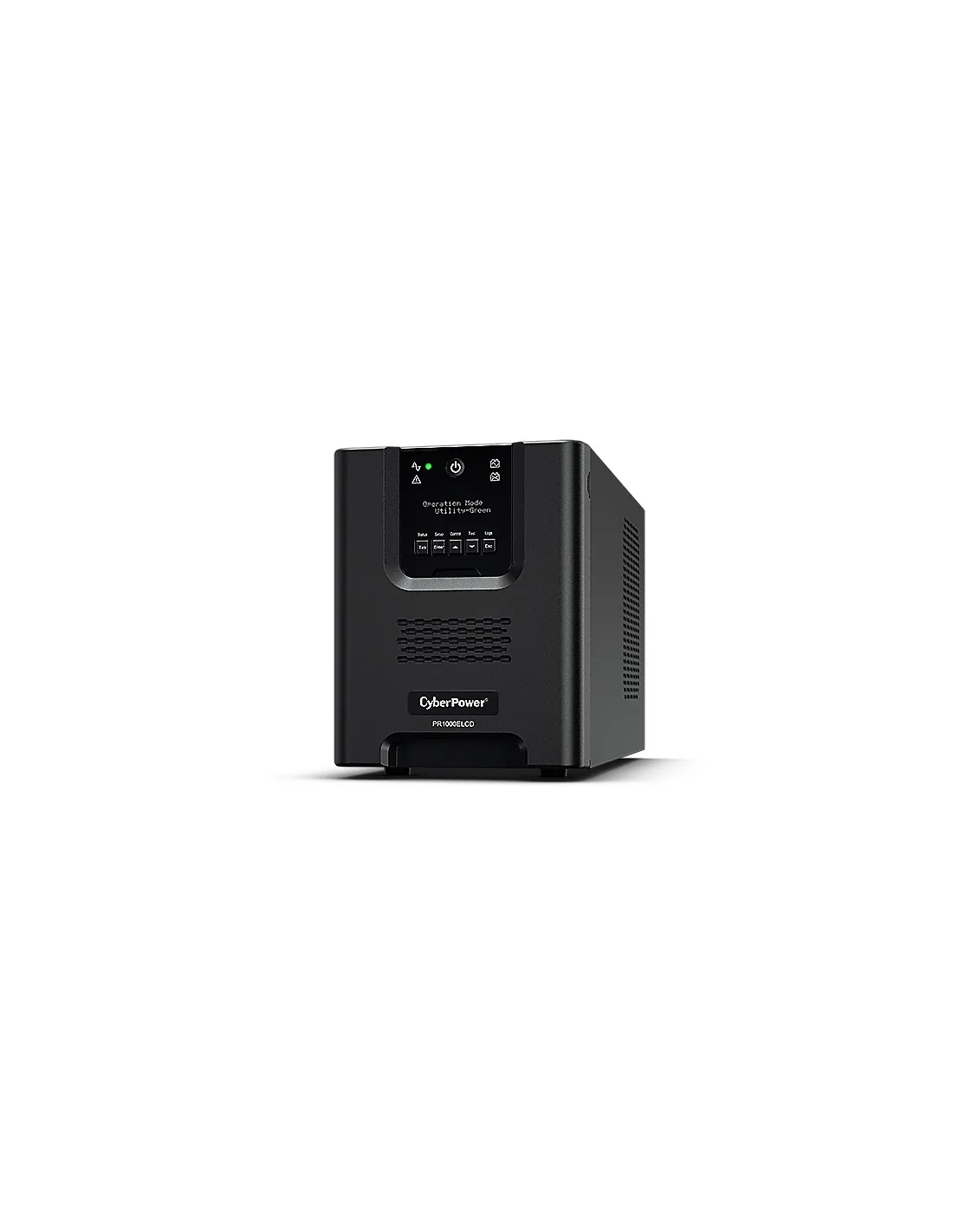

The CyberPower PR1000ELCD is a 1 kVA / 900 W line-interactive UPS in a tower form factor. It delivers pure sine wave output, Automatic Voltage Regulation (AVR), and 8 IEC C13 outlets — all managed through a clear front-panel LCD display. A USB port and serial port allow software monitoring and automated shutdown.
Who it's for
IT managers and installers protecting servers, network switches, NAS devices, or other sensitive equipment in small server rooms, comms rooms, or office data closets. It suits anyone who needs clean, regulated power — not just basic battery backup.
Why it's good
Pure sine wave output matters when you're protecting active PFC power supplies found in modern servers — a simulated sine wave can cause problems. The PR1000ELCD handles that correctly. AVR corrects under- and over-voltage without switching to battery, which extends battery life and keeps equipment stable. The wide input voltage range (151–301 V) gives it good tolerance for variable mains quality. Hot-swap batteries mean you can replace the internal battery without powering down your equipment. At half load, you get around 16 minutes of runtime — enough to execute a clean shutdown or ride out a short outage.
When to choose it
Choose the PR1000ELCD when you need a proven, pure sine wave UPS for a small server or comms room and want AVR, LCD monitoring, and hot-swap batteries in one unit. If your load is under 900 W and you're working with IEC C13-connected equipment, this covers the brief well.
Specifications
| Power | |
|---|---|
| Output power | 900 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 301 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 405 J |
| Power factor | 0.9 |
| Output power capacity | 1 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 4 ms |
| LED indicators | Error, Operation |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Features | |
| Output frequency | 50/60 Hz |
| Country of origin | China |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 4 ms |
| Output power | 900 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 301 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 405 J |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Power factor | 0.9 |
| Output power capacity | 1 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Number of output IEC jumpers | 1 |
| Battery | |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 8 h |
| Typical backup time at half load | 16 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Design | |
| Country of origin | China |
| Form factor | Tower |
| LED indicators | Error, Operation |
| Product colour | Black |
| Certification | CE, EAC, RCM, RoHS |
| Housing material | Metal |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 8504408590 |
| Certificates | |
| Certification | CE, EAC, RCM, RoHS |
| Packaging content | |
| Cables included | USB cable |
| Weight & dimensions | |
| Package width | 316 mm |
| Package depth | 579 mm |
| Package height | 360 mm |
| Weight | 18.9 kg |
| Width | 170 mm |
| Package weight | 21.3 kg |
| Height | 221 mm |
| Depth | 432 mm |
| Packaging data | |
| Cables included | USB cable |
| Package width | 316 mm |
| Package depth | 579 mm |
| Package height | 360 mm |
| Package weight | 21.3 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8504408590 |
| Other features | |
| Overload protection | Yes |
| Compatible operating systems | Windows 7 / Vista / XP / 2000, Server 2003 / 2008, Linux |
Ready to protect your critical equipment? Request a Quote or Talk to an AV Specialist to confirm this is the right fit for your setup.
