What it is

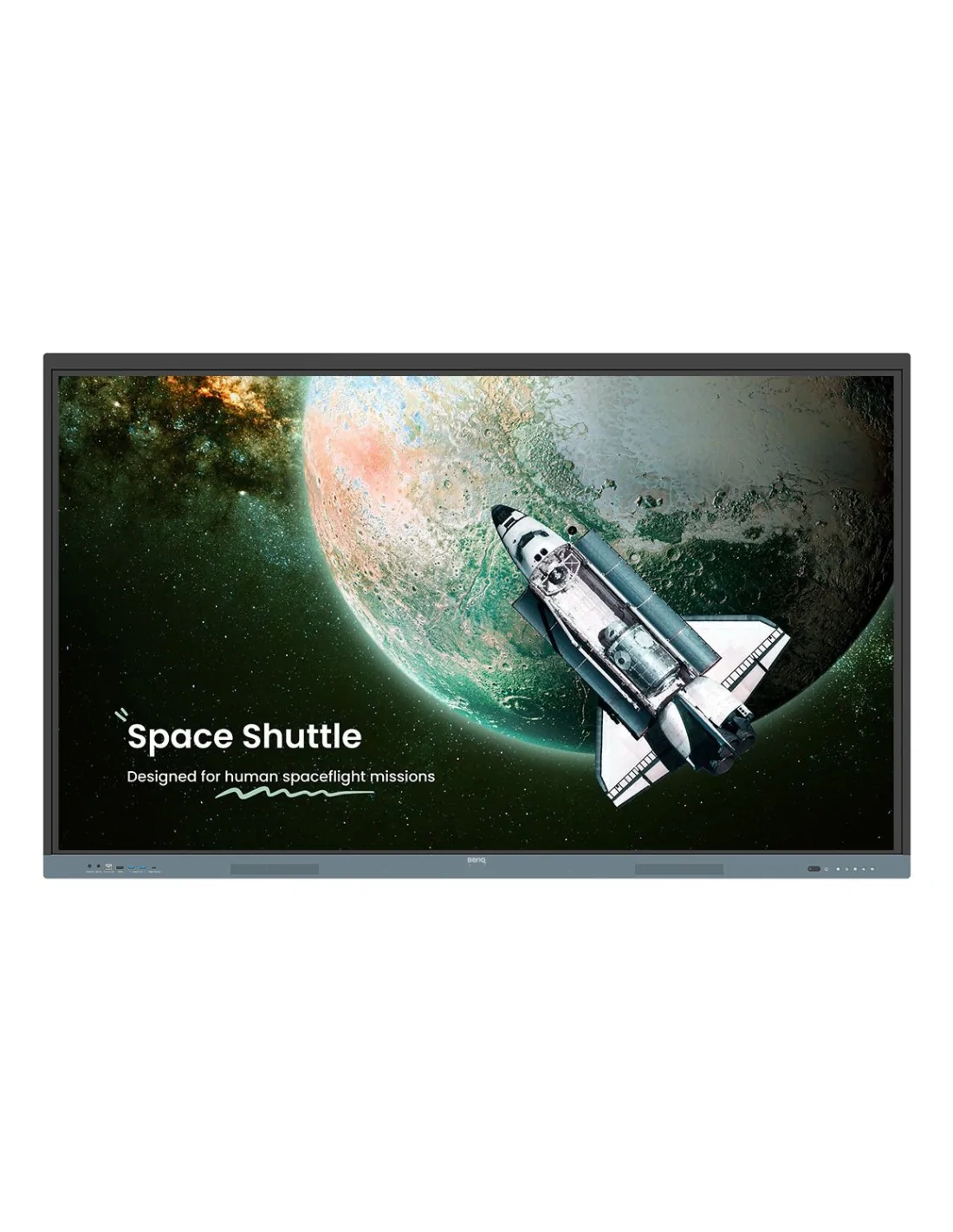

The BenQ RE8604 is an 86-inch interactive flat panel featuring an IPS display and 4K UHD resolution (3840 x 2160 pixels). It runs Android 13 and includes 8GB RAM and 32GB storage, with a pair of 20W speakers integrated.
Who it's for
This display is aimed at educational and meeting room environments requiring a large touchscreen surface supporting up to 40 simultaneous touch points, ideal for collaborative workspaces or classrooms.
Why it's good
The panel’s anti-glare and low blue light coatings help reduce eye strain over extended use. HDMI, USB-C, and USB 2.0 ports provide useful connectivity options, while the built-in Android OS supports a range of apps without needing a separate PC.
When to choose it
Consider this panel when you need a large, high-resolution interactive display that supports extensive multi-touch interaction and integrates eye-care features for frequent use in group settings.
Specifications
| Display | |
|---|---|
| Panel type | IPS |
| Number of simultaneous touchpoints | 40 |
| Touchscreen | Yes |
| Active display area (W x H) | 1895 x 1096 mm |
| Display diagonal | 2.18 m (86") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 30000:1 |
| Panel life | 50000 h |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Touchscreen technology | Infrared |
| Surface hardness | 9H |
| RGB colour space | NTSC |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| DisplayPort version | 1.2 |
| USB port | Yes |
| DisplayPorts in | 1 |
| HDMI version | 2.0 |
| Wi-Fi | No |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 interface | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 8 |
| OPS module slot | Yes |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 40 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black, Grey |
| Panel mounting interface | 800 x 400 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Performance | |
| Purpose | Education |
| Ambient light sensor | Yes |
| Wi-Fi | No |
| Panel life | 50000 h |
| Power | |
| Power consumption (typical) | 106.8 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Computer system | Yes |
| Processor cores | 4 |
| Operating system installed | Android |
| Internal memory | 8 GB |
| Internal storage capacity | 64 GB |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Operating system version | Android 13.0 |
| Weight & dimensions | |
| Display width | 1961.8 mm |
| Display depth | 87.7 mm |
| Display height | 1179.7 mm |
| Display weight | 63 kg |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 2100 mm |
| Package height | 1060 mm |
| Package weight | 80 kg |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | HDMI, USB, VGA |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| Packaging content | |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | HDMI, USB, VGA |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Panel type | IPS |
| DisplayPort version | 1.2 |
| DisplayPorts in | 1 |
| Number of simultaneous touchpoints | 40 |
| Ambient light sensor | Yes |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Thin Client | |
| Operating system installed | Android |
| Internal memory | 8 GB |
| Internal storage capacity | 64 GB |
| Sensors | |
| Ambient light sensor | Yes |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8528521000 |
| Features | |
| Harmonized System (HS) code | 8528521000 |
| Other features | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Panel type | IPS |
| DisplayPort version | 1.2 |
| DisplayPorts in | 1 |
| Number of simultaneous touchpoints | 40 |
| Wi-Fi | No |
| Microphone in | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| OPS module slot | Yes |
Reach out to Creative Systems to verify this panel’s compatibility with your setup and check current availability before placing an order.
