What it is

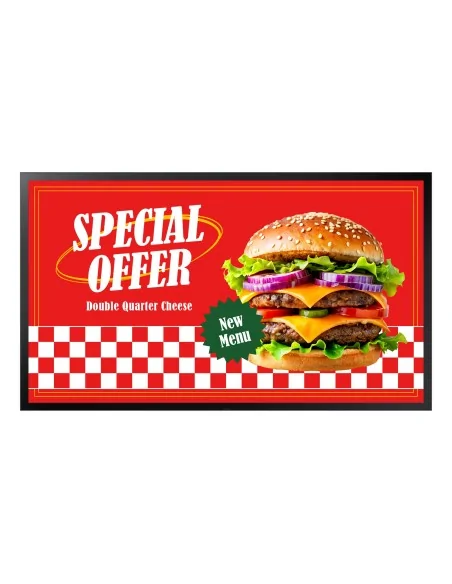

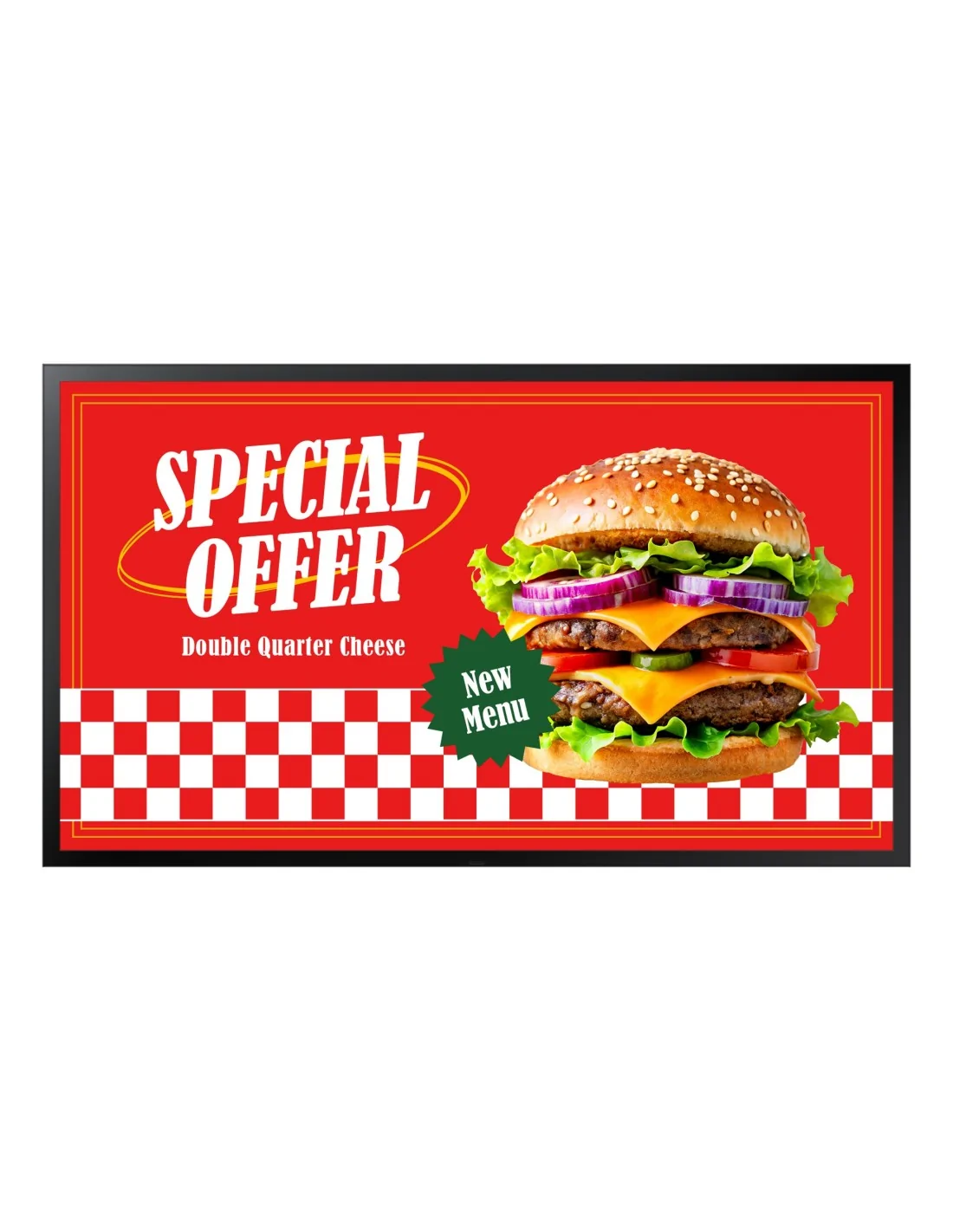

The Samsung OH46DX is a 46-inch digital signage flat panel featuring an LCD display with full HD resolution of 1920 x 1080 pixels. It includes Wi-Fi connectivity and is rated for continuous 24/7 operation.
Who it's for
This display suits businesses or venues needing reliable digital advertising or information screens that operate outdoors or in areas requiring persistent uptime. Its size and outdoor-ready design target professional public or retail environments.
Why it's good
With a VA panel providing good contrast and a 72% color gamut, the OH46DX balances image quality with power consumption. Its robust build supports nonstop use and remote content updates via Wi-Fi, making it practical for digital signage demands.
When to choose it
Pick this screen for outdoor digital signage where 46 inches is an appropriate size and full HD resolution meets your visual needs. Confirm installation conditions suit this panel’s specifications and verify stock as it may be limited.
Specifications
| Display | |
|---|---|
| Panel type | VA |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Touchscreen | No |
| Display technology | LCD |
| Colour gamut | 72% |
| Display diagonal | 116.8 cm (46") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 3500 cd/m² |
| HD type | Full HD |
| Response time | 6 ms |
| Contrast ratio (typical) | 6000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.53 x 0.53 mm |
| Vertical scan range | 24 - 75 Hz |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 15 - 135 kHz |
| Display brightness (peak) | 4000 cd/m² |
| Haze rate | 0% |
| Pixel frequency (max) | 594 MHz |
| Glass thickness | 3 mm |
| Glass film | AG/AR Film |
| Ports & interfaces | |
| USB port | Yes |
| HDMI version | 2.0 |
| Wi-Fi | Yes |
| DisplayPorts quantity | 0 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 interface | Yes |
| USB ports quantity | 2 |
| HDBaseT input ports | 1 |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Outdoor |
| Bezel width (top) | 2.49 cm |
| Bezel width (side) | 2.49 cm |
| Bezel width (bottom) | 2.49 cm |
| Product colour | Black |
| Panel mounting interface | 995 x 500 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Performance | |
| Purpose | Retail |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP56 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Wi-Fi | Yes |
| Power | |
| Power consumption (typical) | 480 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Computer system | No |
| Operating system installed | Tizen |
| Built-in processor | No |
| Operating system version | 8.0 |
| Weight & dimensions | |
| Display width | 1069 mm |
| Display depth | 69 mm |
| Display height | 623.6 mm |
| Display weight | 28.2 kg |
| Packaging data | |
| Package width | 1190 mm |
| Package depth | 186 mm |
| Package height | 735 mm |
| Package weight | 33.7 kg |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Technical details | |
| VESA mounting | Yes |
| Panel type | VA |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Audio out (mini jack) | 1 |
| Compliance certificates | Electromagnetic Compatibility (EMC) |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Thin Client | |
| Operating system installed | Tizen |
| Other features | |
| Panel type | VA |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Wi-Fi | Yes |
| Flash memory | 8000 MB |
| Display technology | LCD |
| Bluetooth | Yes |
| Bezel width (top) | 2.49 cm |
| Bezel width (side) | 2.49 cm |
| Bezel width (bottom) | 2.49 cm |
| Display brightness (peak) | 4000 cd/m² |
Please ask Creative Systems to confirm suitability for your signage setup and availability before ordering.
