Digital Advertising Display
What it is

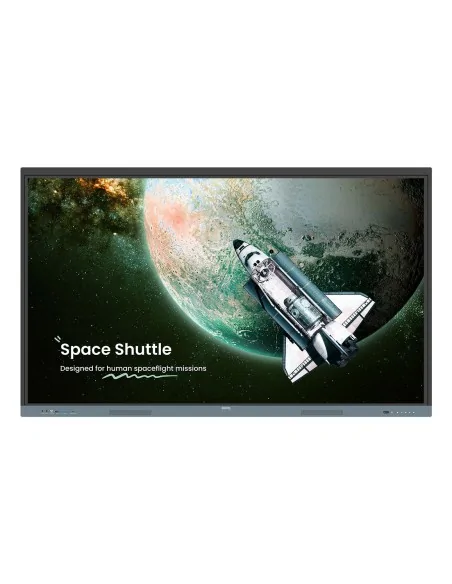

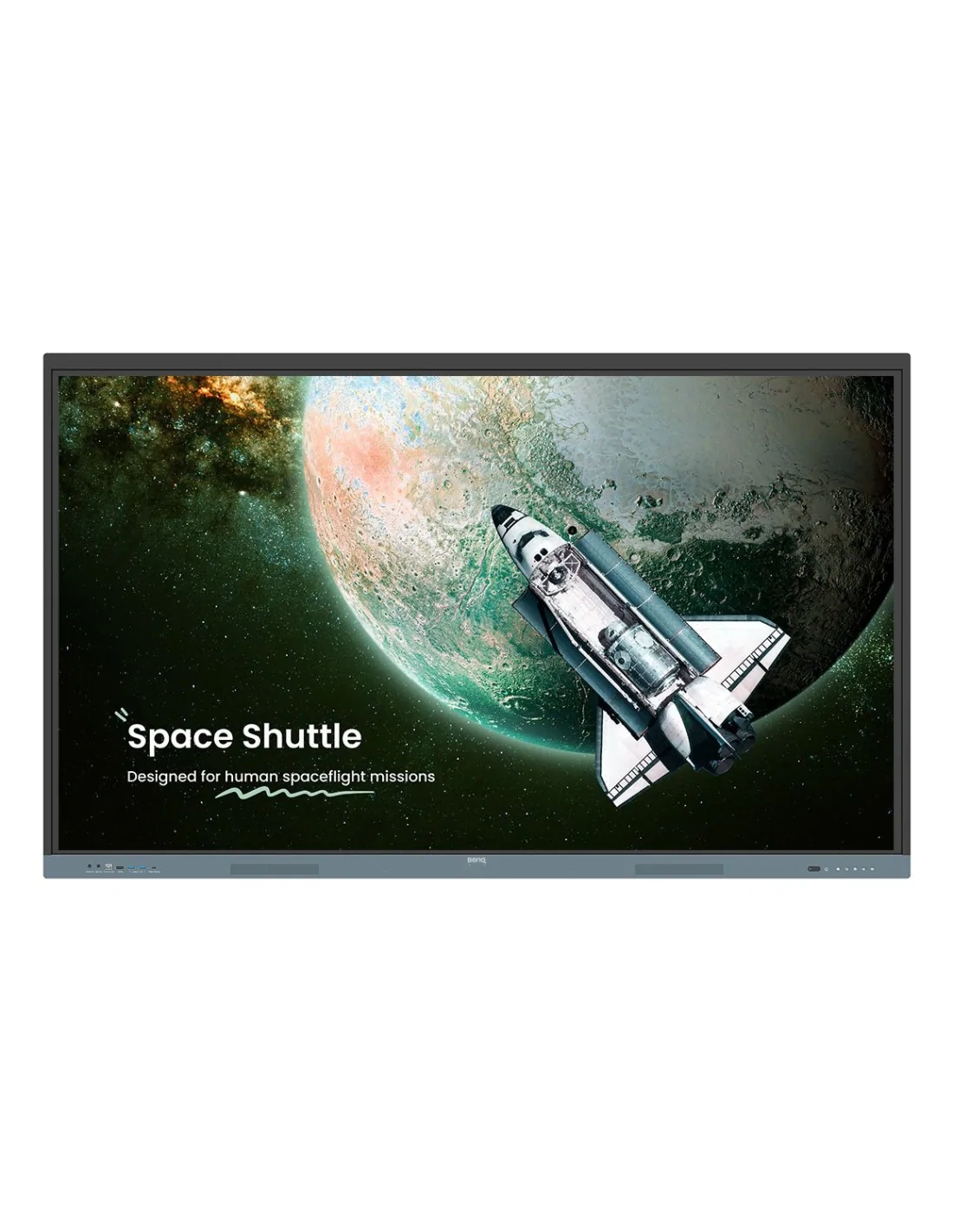

The BenQ RE7504 is a 75-inch interactive flat panel equipped with a 4K Ultra HD IPS touchscreen. It runs Android 13.0, has 8GB RAM, 64GB storage, and supports 40 touch points.
Who it's for
Designed for meeting rooms, classrooms, or digital signage applications where a large interactive display is required. It suits users wanting Android-based control and multiple inputs.
Why it's good
The IPS panel ensures wide viewing angles and consistent colour, while the 450 cd/m² brightness supports visibility in varied lighting. Multiple HDMI and USB ports expand connectivity.
When to choose it
Consider this model if you want a sizeable, responsive touchscreen with Android OS for collaboration or presentation. For smaller setups, smaller displays may be more practical.
Specifications
| Display | |
|---|---|
| Panel type | IPS |
| Number of simultaneous touchpoints | 40 |
| Touchscreen | Yes |
| Active display area (W x H) | 1649.7 x 927.9 mm |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 30000:1 |
| Panel life | 50000 h |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Touchscreen technology | Infrared |
| Surface hardness | 9H |
| RGB colour space | NTSC |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| DisplayPort version | 1.2 |
| USB port | Yes |
| DisplayPorts in | 1 |
| HDMI version | 2.0 |
| Wi-Fi | No |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 interface | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 8 |
| OPS module slot | Yes |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 40 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black, Grey |
| Panel mounting interface | 800 x 400 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Performance | |
| Purpose | Education |
| Ambient light sensor | Yes |
| Wi-Fi | No |
| Panel life | 50000 h |
| Power | |
| Power consumption (typical) | 73.9 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Computer system | Yes |
| Processor cores | 4 |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 64 GB |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Operating system version | Android 13.0 |
| Weight & dimensions | |
| Display width | 1716.5 mm |
| Display depth | 87.7 mm |
| Display height | 1041.6 mm |
| Display weight | 50 kg |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 1860 mm |
| Package height | 1120 mm |
| Package weight | 65 kg |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | HDMI, USB, VGA |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| Packaging content | |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | HDMI, USB, VGA |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Panel type | IPS |
| DisplayPort version | 1.2 |
| DisplayPorts in | 1 |
| Number of simultaneous touchpoints | 40 |
| Ambient light sensor | Yes |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Thin Client | |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 64 GB |
| Sensors | |
| Ambient light sensor | Yes |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8528521000 |
| Features | |
| Harmonized System (HS) code | 8528521000 |
| Other features | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Panel type | IPS |
| DisplayPort version | 1.2 |
| DisplayPorts in | 1 |
| Number of simultaneous touchpoints | 40 |
| Wi-Fi | No |
| Microphone in | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| OPS module slot | Yes |
