What it is

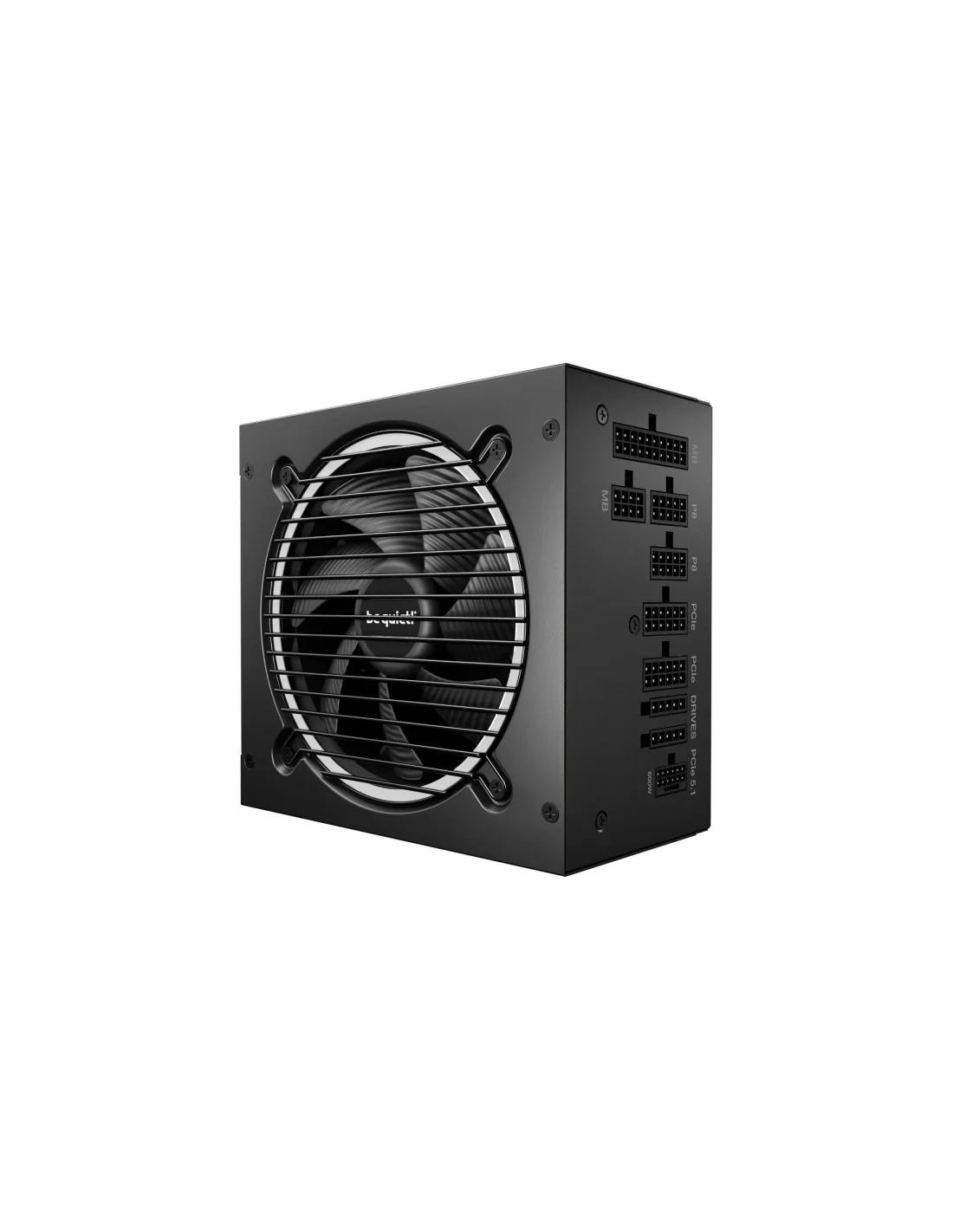

The be quiet! Pure Power 13 M 1000W is a high-capacity modular ATX power supply with 80 PLUS Gold certification, suitable for demanding desktop systems.
Who it's for
This PSU targets users with power-hungry builds such as gaming rigs or workstations requiring up to 1000W of reliable power and modular cable management.
Why it's good
It features active cooling with a 12 cm fan reaching up to 2000 RPM to maintain low temperatures, plus an on/off switch for easy control. Its compact size fits standard ATX cases comfortably.
When to choose it
Opt for this model when your system's power draw approaches or exceeds 750W, and you want a quality PSU that manages heat quietly and efficiently.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2000 RPM |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 30.3 dB |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | Rifle |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2000 RPM |
| Cooling type | Active |
| Power | |
| Total power | 1000 W |
| Maximum input current (@220V) | 6 A |
| Peak power | 1050 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 12 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 83.4 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Hold time | 21.09 ms |
| Efficiency | 92.5% |
| Number of +12V rail(s) | 1 |
| Ports & interfaces | |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 500,650,800,950 mm |
| Peripheral (Molex) power cable length | 800,950 mm |
| CPU power cable length | 65 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
| PCI Express power connectors (12-pin) | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case length | 58 cm |
| Shipping (inner) case height | 23.3 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Sustainability certificates | ENERGY STAR, ErP |
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| Certificates | |
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| 80 PLUS certification | 80 PLUS Gold |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Screws included | Yes |
| Cable ties included | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.64 kg |
| Packaging data | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Screws included | Yes |
| Cable ties included | Yes |
| Package depth | 320 mm |
| Package width | 210 mm |
| Package height | 133 mm |
| Package weight | 3.4 kg |
| Logistics data | |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case length | 58 cm |
| Shipping (inner) case height | 23.3 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case gross weight | 22.7 kg |
| Other features | |
| Screws included | Yes |
| Cable ties included | Yes |
Before ordering, confirm with Creative Systems that this 1000W PSU fits your system requirements and case space.
