What it is

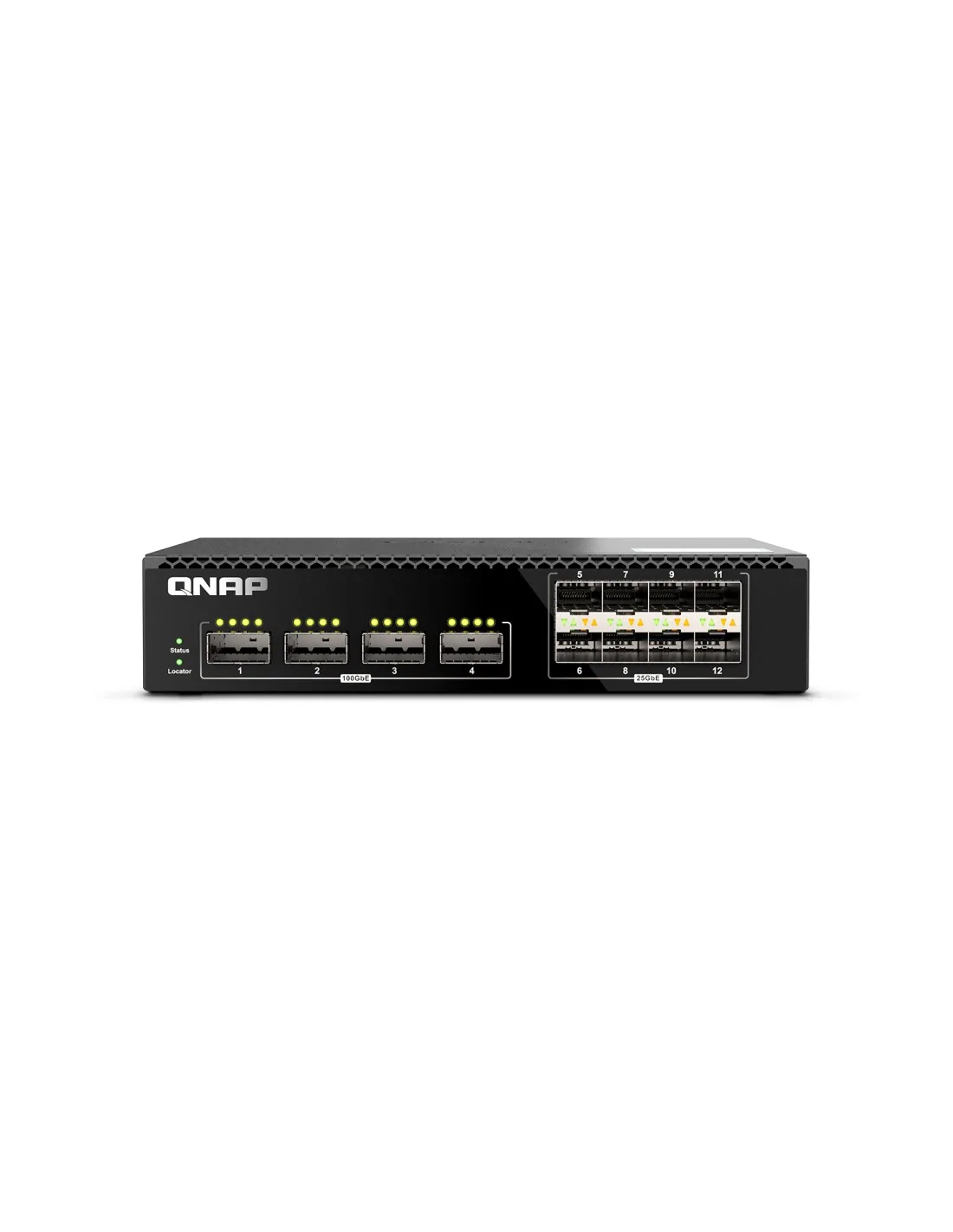

The QNAP QSW-M7308R-4X is a managed Layer 3 switch featuring 4x100GbE QSFP28 and 8x25GbE SFP28 ports, intended for high-density data centre or advanced network setups.
Who it's for
Designed for network professionals needing advanced switching capacity and management in data centres or high-throughput enterprise environments.
Why it's good
This switch supports layer 3 routing and web-based management, with a 1200Gbps switching capacity and a console port, facilitating detailed traffic control and scalability.
When to choose it
Select this model when your infrastructure demands high-speed 100GbE and 25GbE ports with managed L3 features, suitable for bandwidth-intensive applications.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45 |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 8 |
| Number of management ports | 1 pc(s) |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 32000 entries |
| Switching capacity | 1200 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Throughput | 600 Gbit/s |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Country of origin | Taiwan |
| Performance | |
| Firmware upgradeable | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 100 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Other features | |
| Warranty period | 2 year(s) |
| Country of origin | Taiwan |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 207 mm |
| Depth | 248.8 mm |
| Height | 43.3 mm |
| Weight | 1.78 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Package width | 324 mm |
| Package depth | 282 mm |
| Package height | 88 mm |
| Package weight | 2.63 kg |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Warranty period | 2 year(s) |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), VCCI |
| Certificates | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), VCCI |
| Logistics data | |
| Country of origin | Taiwan |
| Products per master (outer) case | 8 pc(s) |
Contact Creative Systems to discuss integration details and check current availability.
