What it is

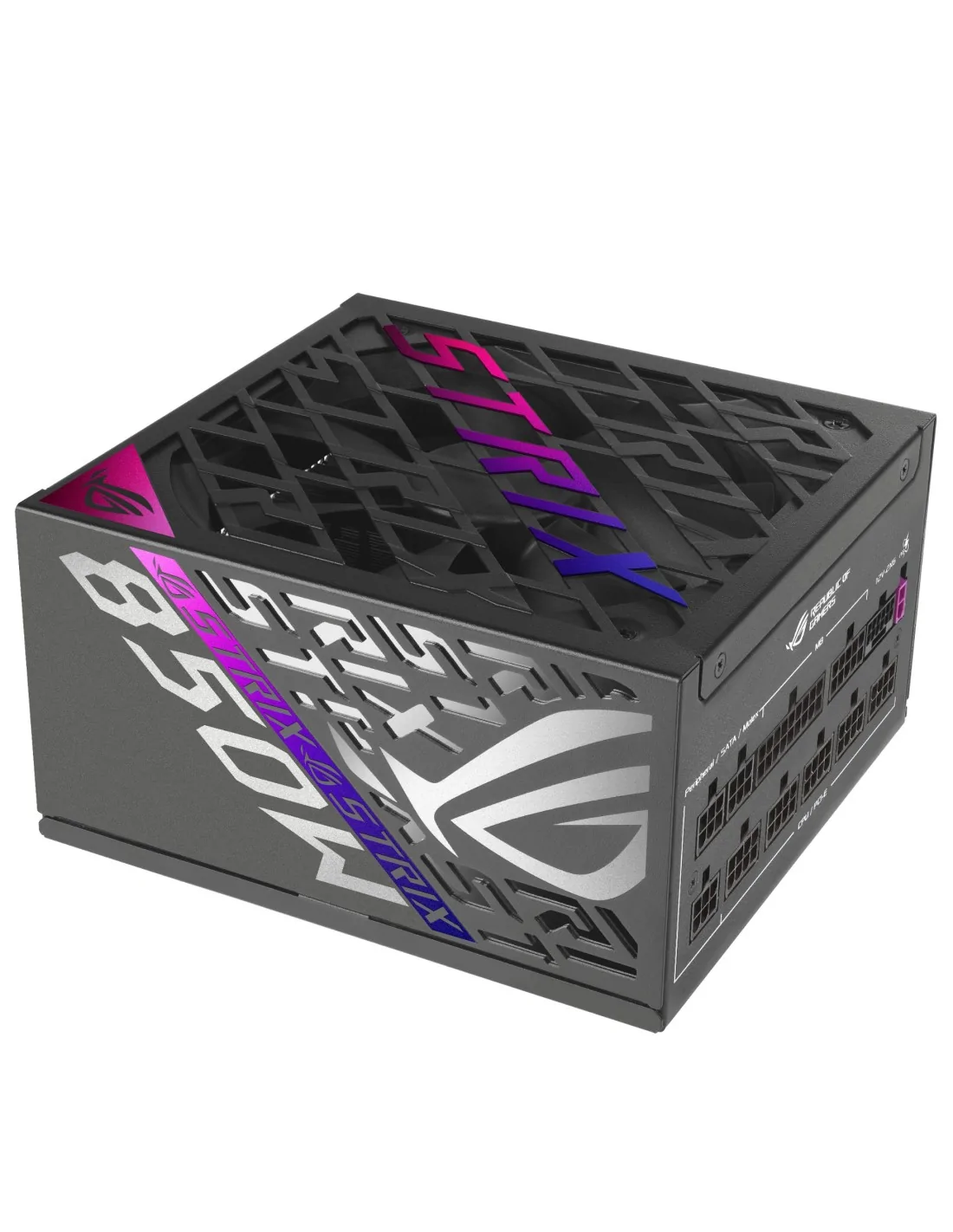

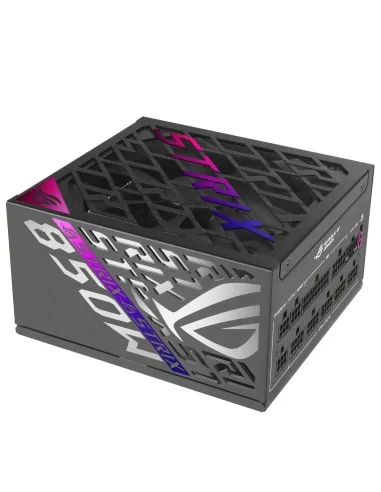

The ASUS ROG Strix 850P is an 850W ATX power supply unit with 80 PLUS Platinum certification and semi-passive cooling.
Who it's for
Suitable for gamers and power users who want a quiet, efficient PSU with reliable power delivery.
Why it's good
It has a top-mounted fan operating in semi-passive mode, a black finish, and incorporates GaN MOSFET technology for enhanced efficiency.
When to choose it
Choose this PSU if you need stable power for a mid to high-end gaming PC with noise-sensitive environments.
Specifications
| Cooling | |
|---|---|
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Semi-passive |
| Design | |
| 80 PLUS certification | 80 PLUS Platinum |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Semi-passive |
| Power | |
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 400,120 mm |
| Peripheral (Molex) power cable length | 400,150 mm |
| PCI Express power cable length | 75 cm |
| CPU power cable length | 100 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
| PCI Express power connectors (16-pin) | 1 |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| Silent mode | Yes |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 120000 h |
| Packaging content | |
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.78 kg |
| Packaging data | |
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Package depth | 200 mm |
| Package width | 320 mm |
| Package height | 108 mm |
| Package type | Box |
| Package weight | 2.8 kg |
| Technical details | |
| Compliance certificates | RoHS |
| Certificates | |
| 80 PLUS certification | 80 PLUS Platinum |
Talk to Creative Systems before ordering to confirm this unit meets your build requirements and check stock.
