What it is

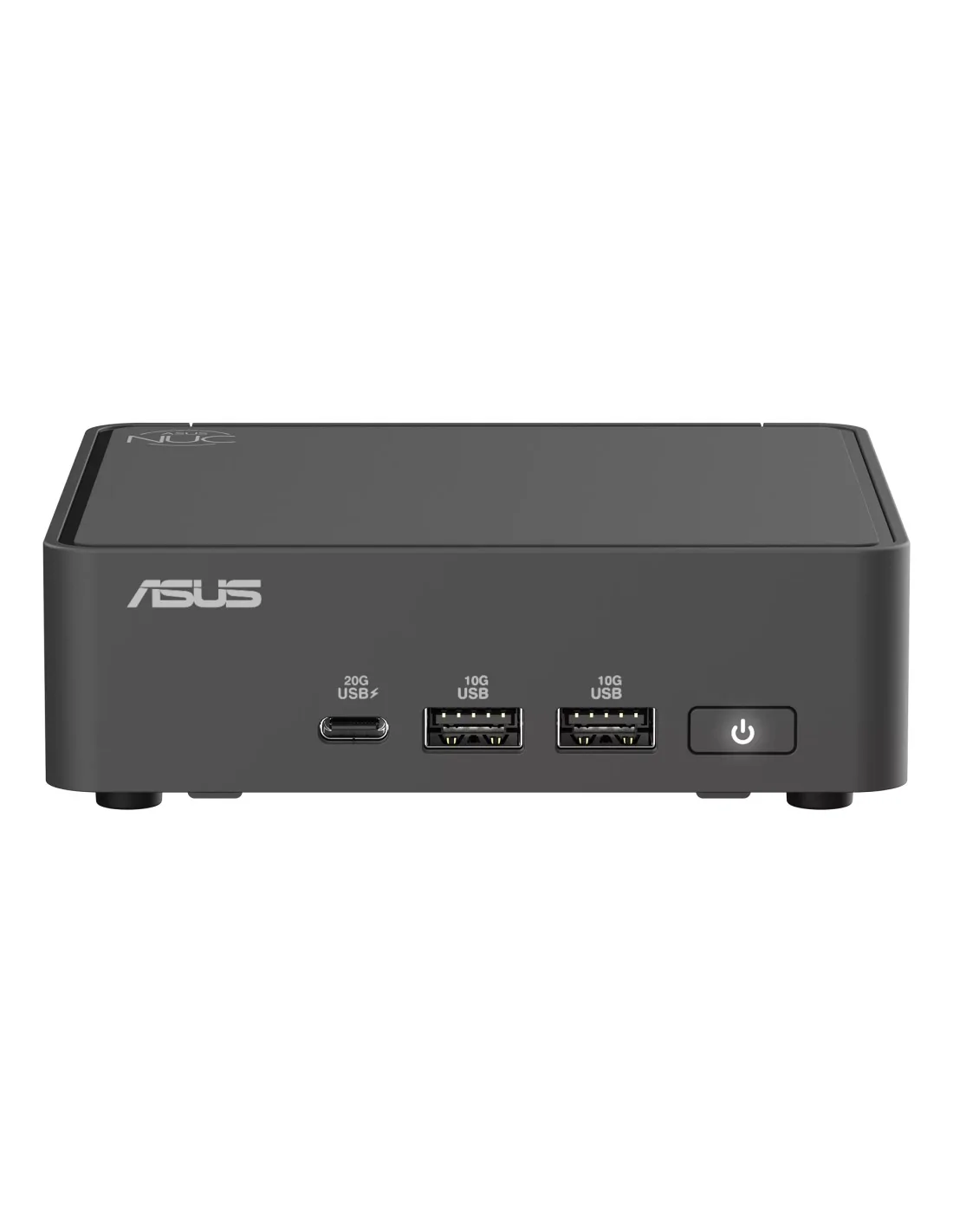

The ASUS NUC 15 Pro is a barebone mini PC powered by an Intel Core Ultra 7 240H processor, supporting up to 16 threads and 16 cores, with DDR5 memory using two SO-DIMM slots.
Who it's for
This barebone is aimed at those assembling compact but powerful workstations, suitable for multi-threaded tasks, requiring recent CPU architecture and fast RAM options.
Why it's good
With a max CPU boost of 5.2 GHz and DDR5 support, it offers modern performance while allowing flexibility in RAM and storage selection to build to your needs.
When to choose it
Select this if you need a higher-core count mini PC foundation for demanding applications and wish to supply your own memory and storage.
Specifications
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor model | 240H |
| Processor boost frequency | 5.2 GHz |
| Processor threads | 16 |
| Processor cores | 10 |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Processor cache | 24 MB |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor generation | Intel Core Ultra (Series 2) |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 5600,6400 MHz |
| Maximum internal memory | 96 GB |
| Internal memory installed | No |
| Video | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | M.2 |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 8 TB |
| SSD form factor | M.2 |
| Storage drives installed | No |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc 140T |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ports & interfaces | |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Design | |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Performance | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | No |
| Colour | |
| Product colour | Black |
| Technical details | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Processor cores | 10 |
| Cooling type | Active |
| Software | |
| Operating system installed | No |
| Management features | |
| On/off switch | Yes |
| Power | |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 36.8 mm |
Please contact us to confirm component compatibility and current stock before ordering this barebone unit.
