What it is

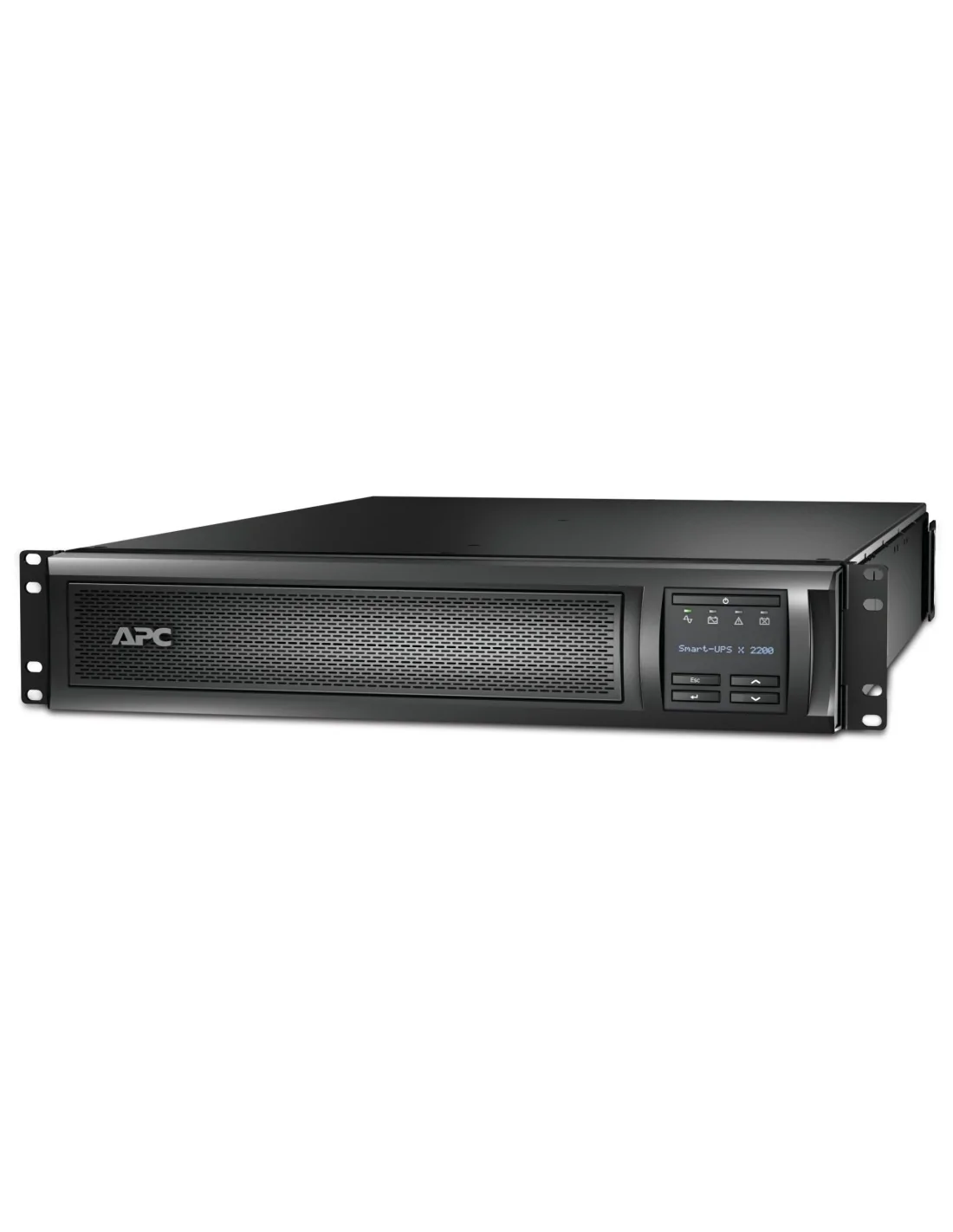

The APC Smart-UPS X SMX2200R2HVNC is a high-capacity 2200VA rack UPS designed for more demanding power backup scenarios. It has eight C13 and one C19 outlet, USB interface, and supports runtime extension.
Who it's for
This UPS fits installations where higher power output close to 1980W is needed, such as larger racks with server clusters or networking equipment needing additional outlets and runtime flexibility.
Why it's good
Voltage regulation keeps output stable between 230V and 240V with a frequency regulation of ±3Hz. The surge protection rating is 645J, which helps with transient voltage spikes. Emergency Power Off (EPO) is included for safe shutdowns.
When to choose it
Choose this model if your setup demands higher power capacity and more outlets, plus the option to add extra runtime modules to prolong backup during outages.
Specifications
| Power | |
|---|---|
| Output voltage regulation | 5% |
| Output frequency regulation | +/- 3 Hz |
| Output power | 1980 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 230 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 645 J |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 2.2 kVA |
| Performance | |
| Audible alarm modes | Battery replacement |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Response time | 10 ms |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Web-based management | Yes |
| Audible alarm modes | Battery replacement |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output voltage regulation | 5% |
| Output frequency regulation | +/- 3 Hz |
| Auto-restart | Yes |
| Response time | 10 ms |
| Output power | 1980 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 230 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 645 J |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 2.2 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| SmartSlot | Yes |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartConnect port | No |
| Battery | |
| Battery capacity | 702 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output voltage | 230 V |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 3167.15 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
| Compliance certificates | RoHS |
| Management features | |
| Web-based management | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable, USB cable |
| Rack mount kit | Yes |
| Management card included | Yes |
| Resource CD | Yes |
| Weight & dimensions | |
| Package width | 596 mm |
| Package depth | 869 mm |
| Package height | 243 mm |
| Weight | 37.4 kg |
| Width | 432 mm |
| Package weight | 45.3 kg |
| Height | 85 mm |
| Depth | 667 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable, USB cable |
| Resource CD | Yes |
| Rack mount kit | Yes |
| Package width | 596 mm |
| Package depth | 869 mm |
| Package height | 243 mm |
| Package weight | 45.3 kg |
| Management card included | Yes |
| Logistics data | |
| Products per pallet | 8 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 3167.15 |
| Other features | |
| Output voltage | 230 V |
