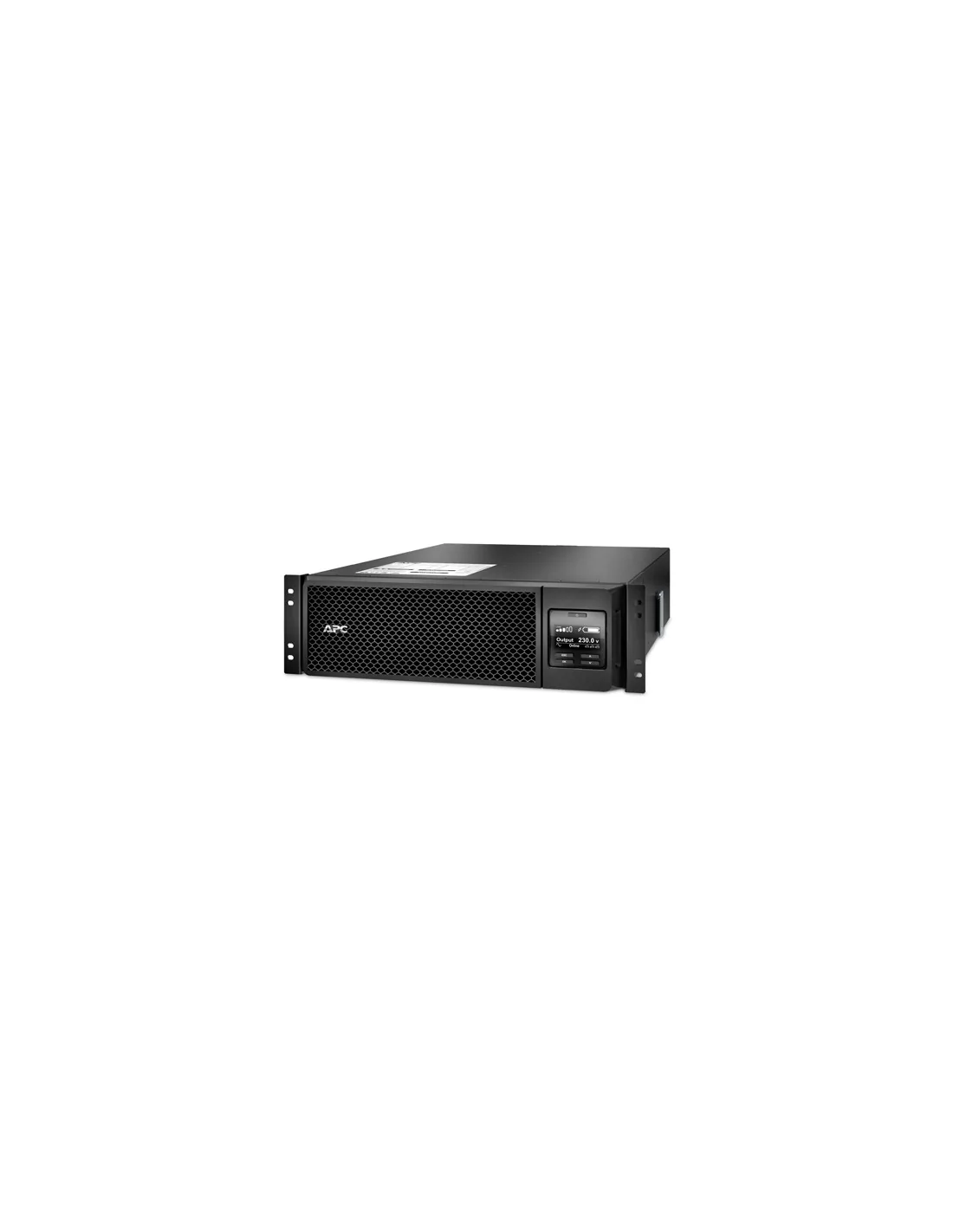

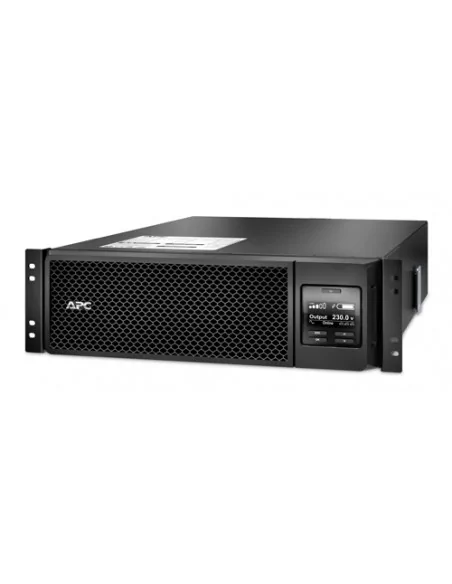

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hard Wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 6-year warranty and comes with a built-in lead-acid battery.
| Power | |
|---|---|
| Output frequency regulation | 50/60 Hz |
| Output power | 4500 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 94.1% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 5 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Auto-restart | Yes |
| Output power | 4500 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 94.1% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 5 kVA |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| Number of output IEC jumpers | 2 |
| SmartConnect port | No |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 845 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1.5 h |
| Typical backup time at half load | 11.8 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Replacement battery cartridge | APCRBC140 |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 3U |
| Form factor | Rackmount |
| Product colour | Black |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE |

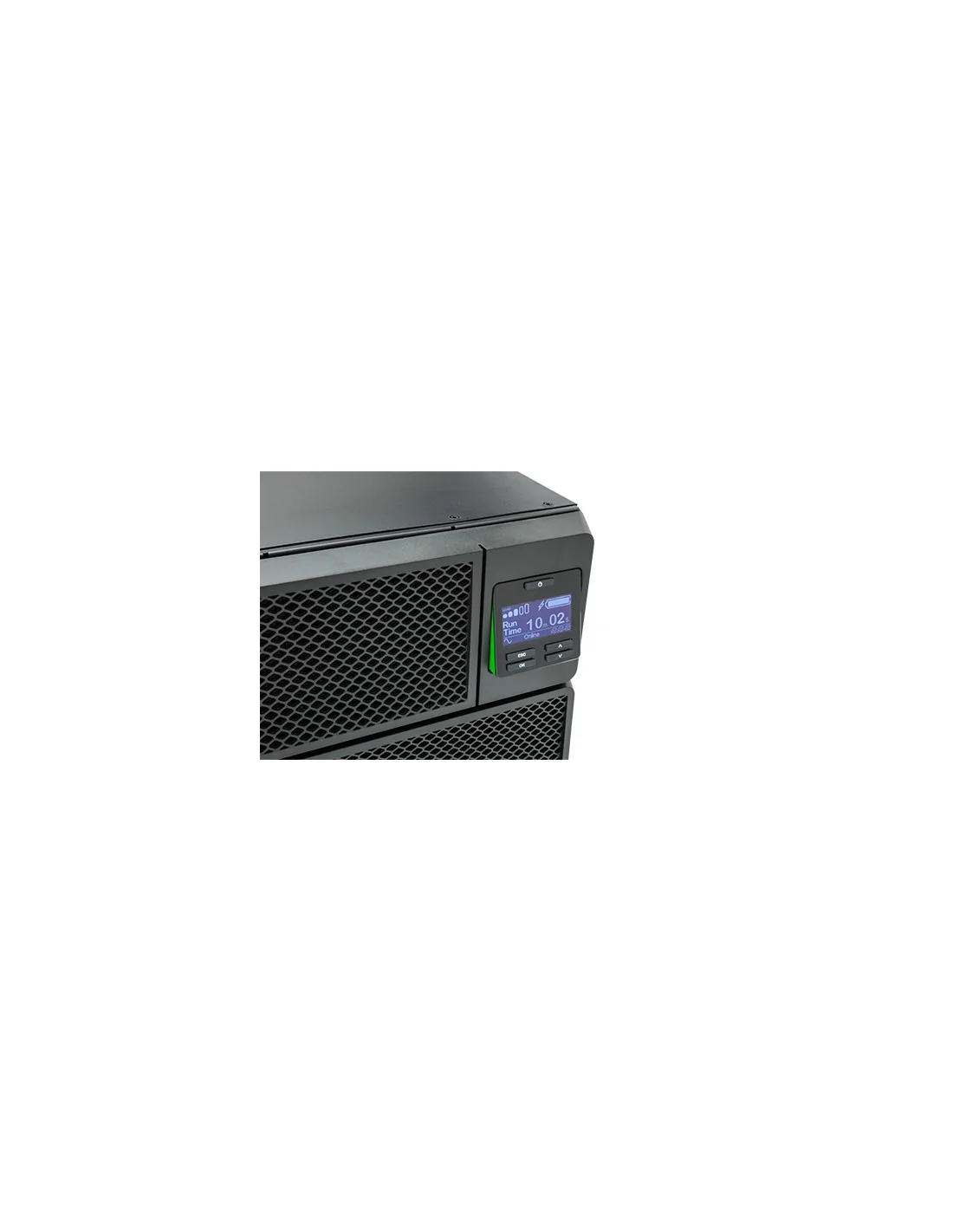

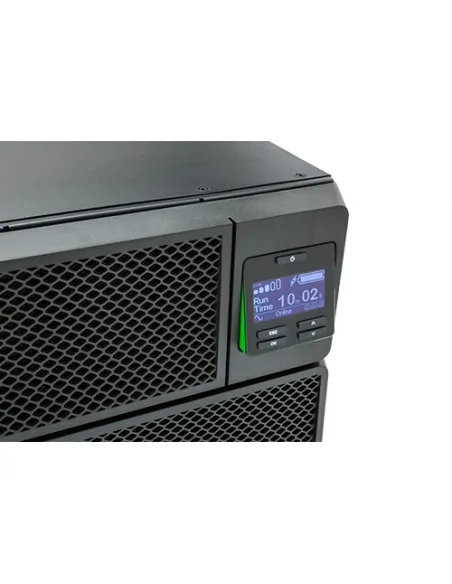

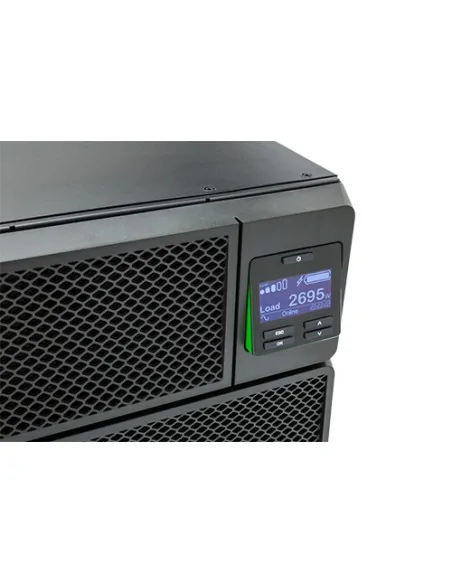

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 8408.59 |
| Compliance certificates | RoHS |
| Packaging data | |
| Packaging content | Web/SNMP Management Card |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Bracket | Yes |
| Warranty card | Yes |
| Temperature sensor | Yes |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Package weight | 66.9 kg |
| Management card included | Yes |
| Certificates | |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE |
| Compliance certificates | RoHS |
| Packaging content | |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Management card included | Yes |
| Bracket | Yes |
| Warranty card | Yes |
| Temperature sensor | Yes |
| Packaging content | Web/SNMP Management Card |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Weight | 54.4 kg |
| Width | 432 mm |
| Package weight | 66.9 kg |
| Height | 130 mm |
| Depth | 719 mm |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 8408.59 |
| Other features | |
| Packaging content | Web/SNMP Management Card |
