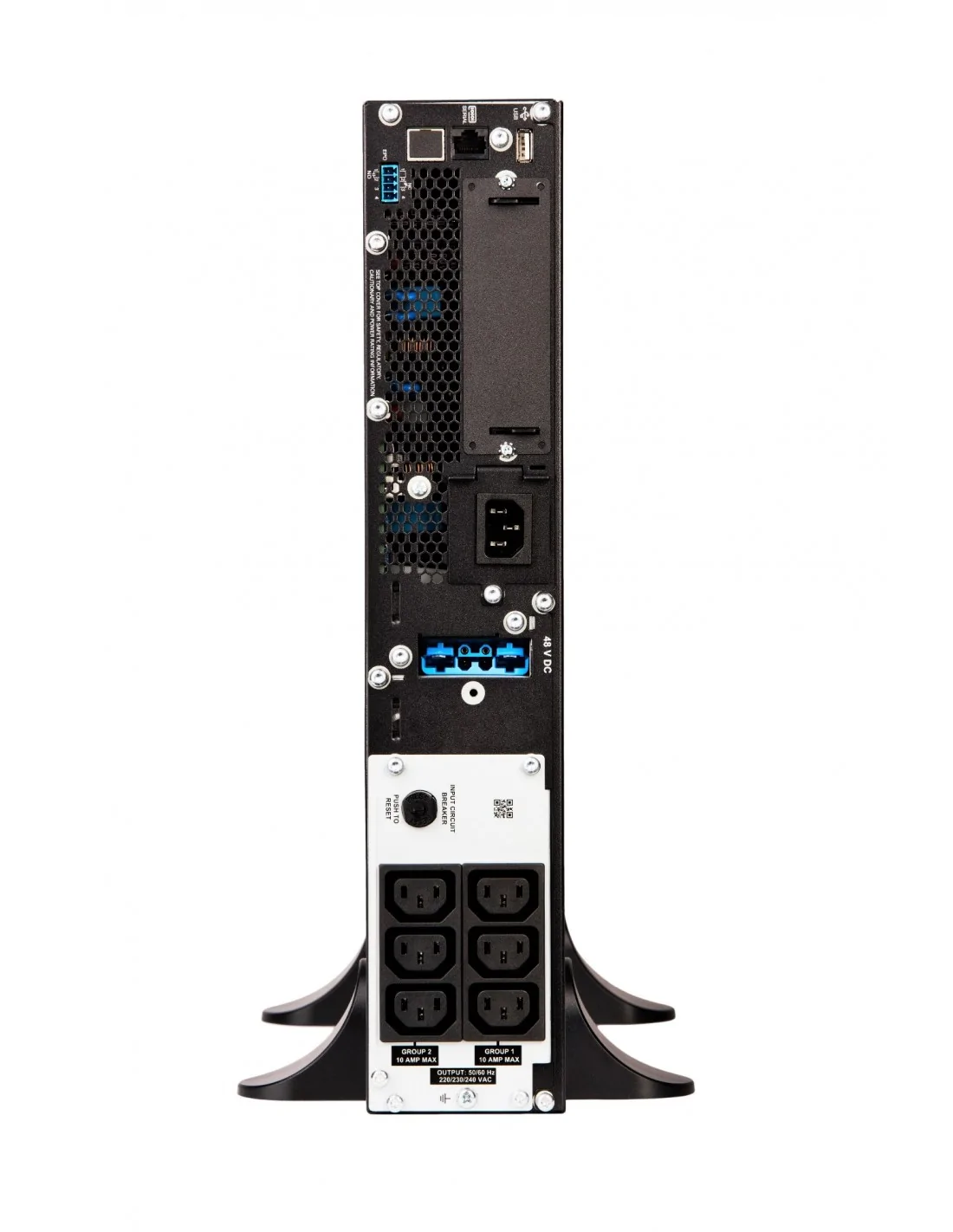

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
| Power | |
|---|---|
| Output power | 1000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 50 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 432 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Output power capacity | 1 kVA |
| ECO mode | Yes |
| Ports & interfaces | |
| Cable length | 1.8 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Serial ports quantity | 1 |
| SmartConnect port | No |
| Performance | |
| Audible alarm modes | Alarm when on battery, Battery replacement |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Yes |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Battery replacement |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| Output power | 1000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 50 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 432 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 50 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 1 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery voltage | 48 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 21 min |
| Typical backup time at full load | 8 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Battery weight | 29.6 kg |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Cooling type | Active |
| Certification | CE, EAC |
| Cable length | 1.8 m |
| Built-in fan | Yes |

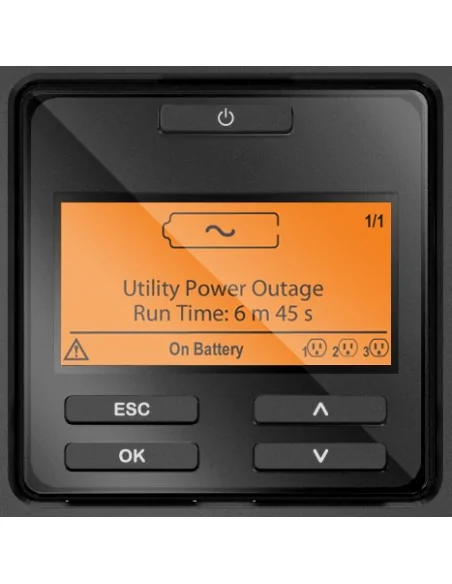

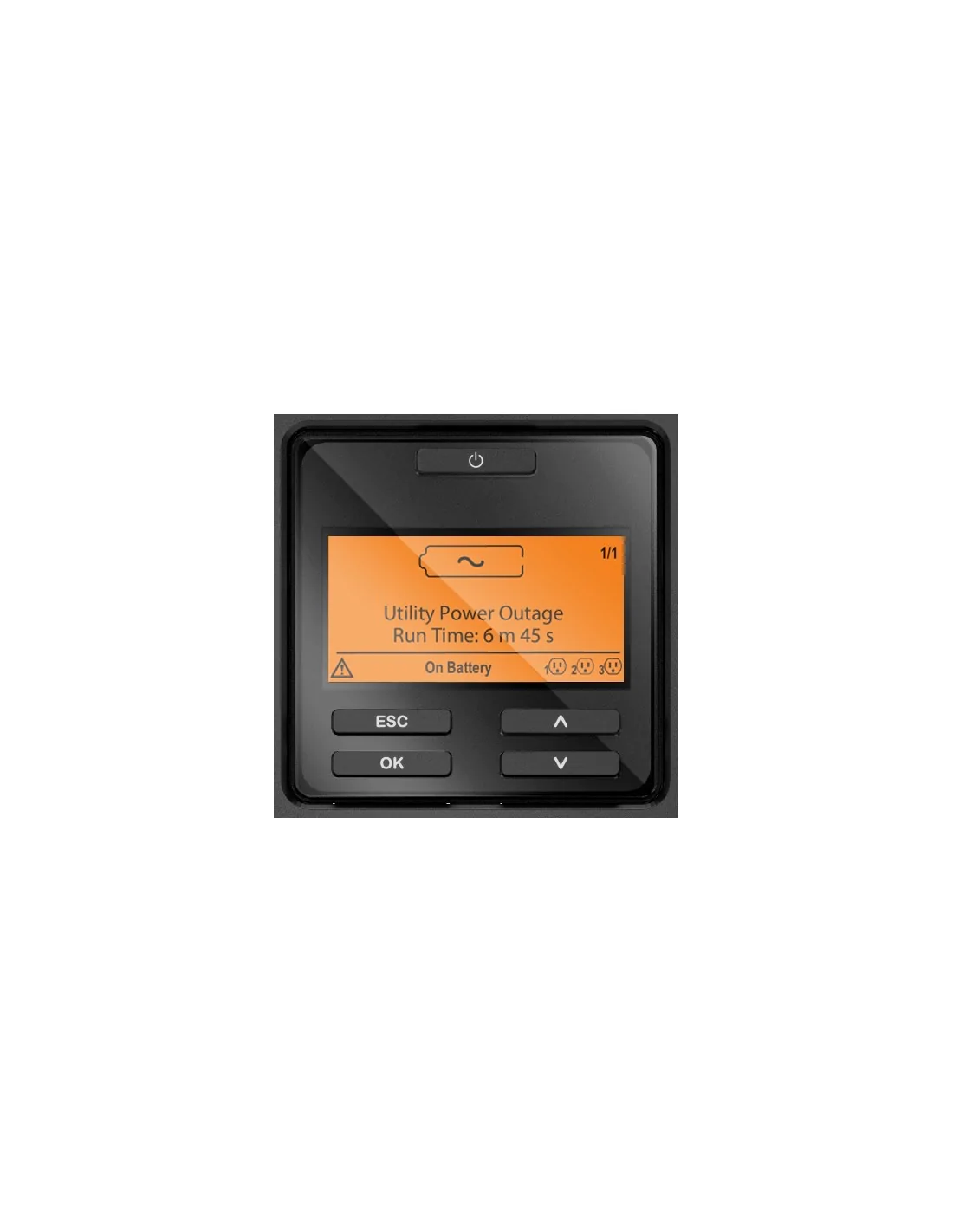

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Sustainability certificates | Green Premium |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 1839.69 |
| Compliance certificates | CE |
| Certificates | |
| Certification | CE, EAC |
| Compliance certificates | CE |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Management card included | No |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | Green Premium |
| Weight & dimensions | |
| Weight | 20.5 kg |
| Width | 85 mm |
| Height | 432 mm |
| Depth | 505 mm |
| Battery width | 59.4 cm |
| Battery depth | 74.9 cm |
| Battery height | 24.6 cm |
| Battery weight | 29.6 kg |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Management card included | No |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 1839.69 |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
