What it is

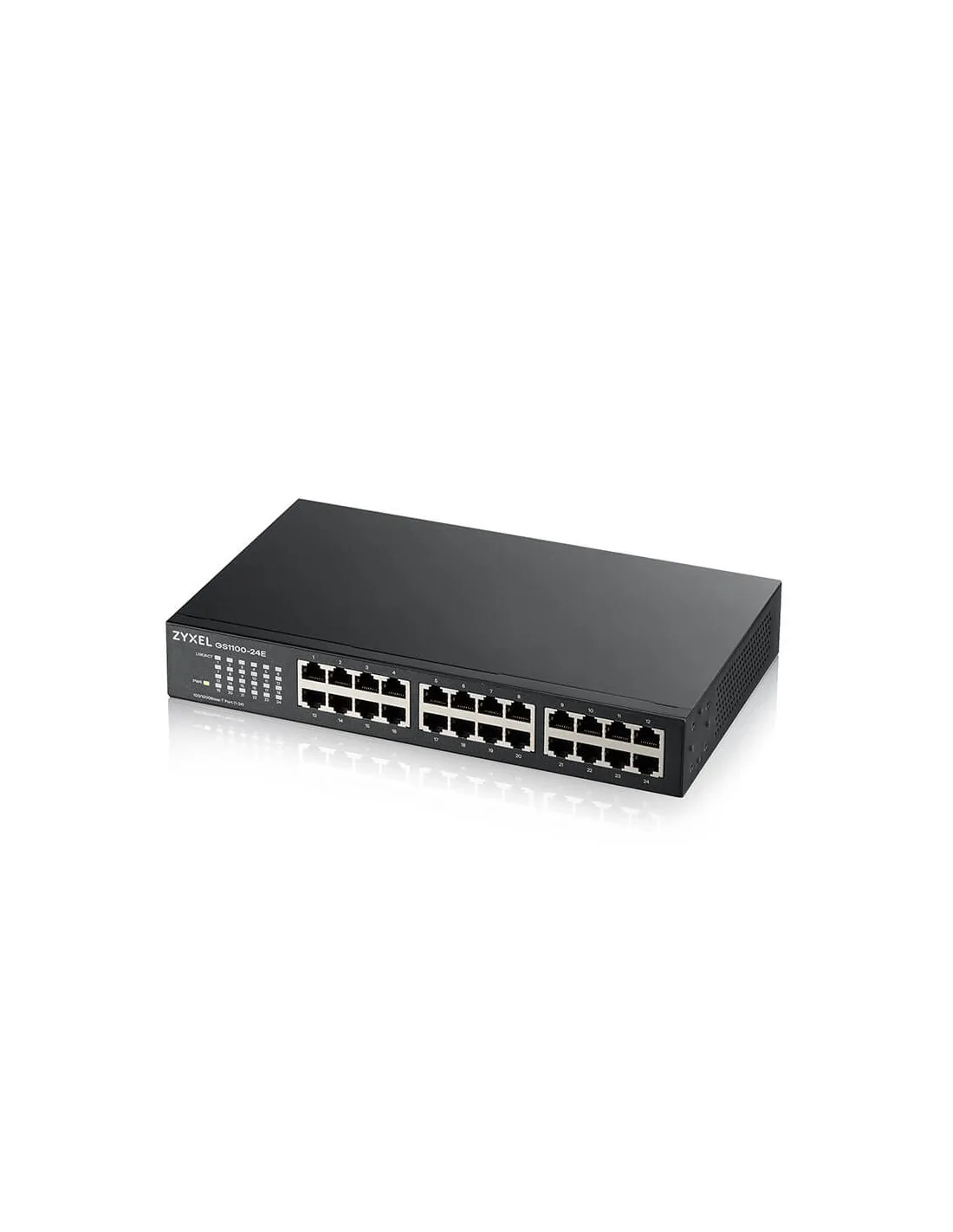

This Zyxel GS1100-24E is a 24-port unmanaged gigabit Ethernet switch offering 48 Gbps switching capacity for reliable network expansion.
Who it's for
Designed for businesses or offices needing more ports without the complexity of managed switches. It works well where straightforward network extension is the goal.
Why it's good
The switch provides consistent gigabit speeds across 24 copper ports. Being unmanaged means there are no settings to configure, simplifying deployment and maintenance.
When to choose it
If you require more ports than smaller switches and prefer easy installation over advanced management features, this model fits well. It supports standard gigabit Ethernet connections over typical network cables.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.525 MB |
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Certification | LVD, BSMI, EMC Class A, CE, FCC, RCM, ICES-003, BSMI, RoHS, REACH |
| Performance | |
| Mean time between failures (MTBF) | 366919 h |
| Fanless | Yes |
| Packet buffer memory | 0.525 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 13 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Heat dissipation | 43.53 BTU/h |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 162 mm |
| Height | 42 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 366919 h |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 0.525 MB |
| Certificates | |
| Certification | LVD, BSMI, EMC Class A, CE, FCC, RCM, ICES-003, BSMI, RoHS, REACH |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Reach out to Creative Systems to verify this model matches your port and network demands before purchase.
