What it is

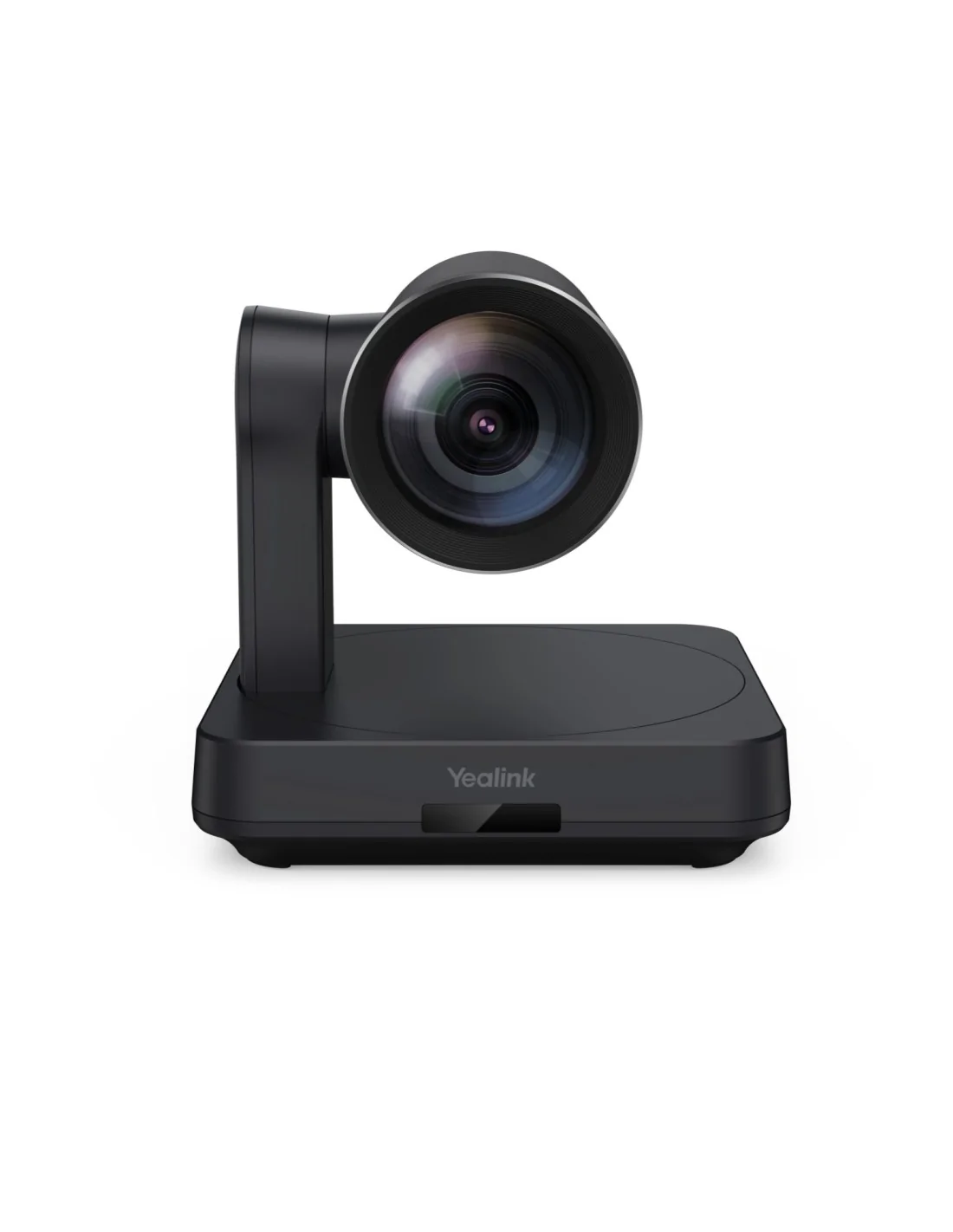

The Yealink UVC84 is a USB PTZ camera capable of 4K resolution video. It features a 12x optical zoom and supports combined zoom up to 36x, with a field of view ranging from 3.9 to 46.8 mm focal length. The camera’s minimum illumination is 0.1 lx, making it suitable for various lighting conditions.
Who it's for
This camera fits meeting rooms or conferencing spaces requiring sharp, flexible video capture with remote pan, tilt, and zoom controls. It supports USB connectivity, making it a straightforward addition to PCs or video conferencing systems.
Why it's good
The UVC84 delivers detailed imagery with 4K clarity and strong optical zoom, enabling focused views without losing video quality. Its low light sensitivity and adjustable zoom range help accommodate different room sizes and lighting.
When to choose it
Choose this camera if you need high-quality video with flexible framing in a USB interface for small to medium conference rooms. Consider alternatives if you need integrated audio or wireless features.
Specifications
| Camera | |
|---|---|
| Optical zoom | 12x |
| Digital zoom | 3x |
| Combined zoom | 36x |
| Focal length range | 3.9 - 46.8 mm |
| Field of view (FOV) angle | 80° |
| Minimum illumination | 0.1 lx |
| White balance | ATW, Auto, Manual |
| Horizontal field of view | 73° |
| Signal-to-Noise Ratio (SNR) | 63 dB |
| Aperture range (F-F) | 1.6 - 2.8 |
| Slowest camera shutter speed | 0.01667 s |
| Fastest camera shutter speed | 1/10000 s |
| Light exposure modes | Auto, Manual |
| Vertical field of view | 45° |
| Camera type | Single camera |
| Zoom capability | Yes |
| Video | |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| Resolution at capture speed | 1280x720@30fps, 1920x1080@30fps, 3840x2160@30fps |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| HD type | 4K Ultra HD |
| Design | |
| Product colour | Black |
| Mounting type | Stand |
| Tilt angle range | -90 - 40° |
| Pan range | -100 - 100° |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Line-out | Yes |
| Headphone out | Yes |
| Power | |
| DC input voltage | 48 V |
| Input current | 0.7 A |
| Power source type | AC, DC |
| AC input voltage | 100-240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85258900 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Packaging content | |
| Remote control included | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| USB cable length | 7 m |
| Mounting brackets included | Yes |
| Packaging content | VC84 Camera VCR20 remote control Power adapter Wall bracket and accessories 7m USB cable |
| Performance | |
| Remote control function | Yes |
| Cable lock slot | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Weight & dimensions | |
| Width | 156 mm |
| Depth | 156 mm |
| Height | 183 mm |
| Weight | 2.9 kg |
| Height (max) | 19.2 cm |
Please get in touch with Creative Systems to verify it fits your conferencing setup and technical needs before purchase.
