What it is

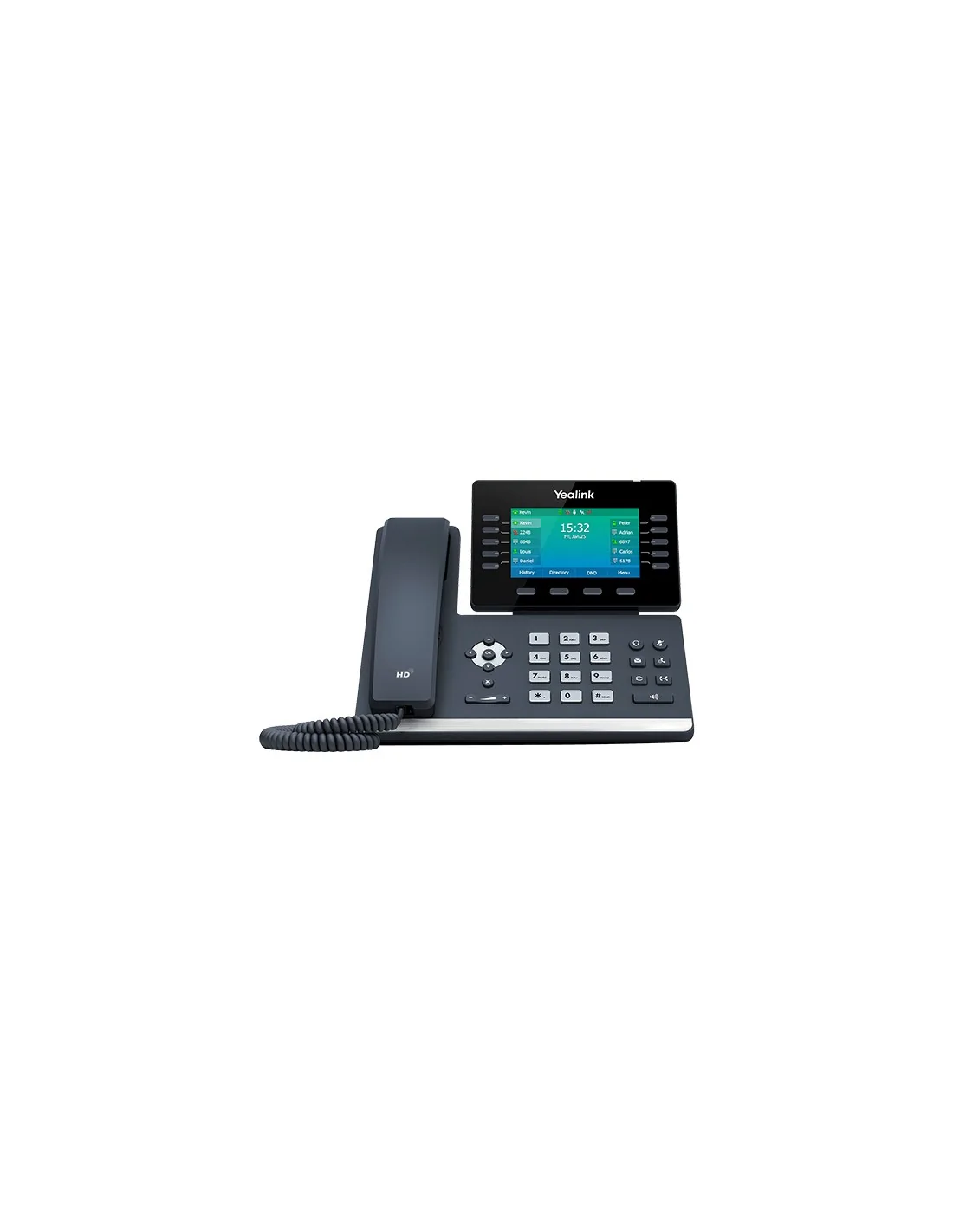

The Yealink SIP-T54W is a Wi-Fi enabled IP phone featuring a 4.3" colour LCD (480 x 272), supporting up to 16 VoIP accounts and multiple connectivity options including USB 2.0, Bluetooth 4.2, and dual RJ-45 ports.
Who it's for
This device fits office users requiring a flexible IP phone with wireless and wired network support, multiple accounts, and basic call features like voicemail and phonebook sharing.
Why it's good
It provides decent screen size for easy navigation, plus versatile connectivity including Wi-Fi and Bluetooth. Mounting options for desk or wall add installation flexibility.
When to choose it
Choose this phone if you want a mid-range IP phone with Wi-Fi and Bluetooth for a modern office environment, supporting multiple VoIP lines and good call management features.
Specifications
| Features | |
|---|---|
| Number of programmable keys | 10 |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Phonebook sharing | Yes |
| Integrated voicemail | Yes |
| Handset type | Wired handset |
| Mounting | Desk/Wall |
| Device lock | Yes |
| Wall mountable | Yes |
| Volume control | Buttons |
| Handset | Yes |
| Ethernet cable | Yes |
| Product colour | Black |
| Technical details | |
| Number of programmable keys | 10 |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Phonebook sharing | Yes |
| Integrated voicemail | Yes |
| Answering machine | Yes |
| Handset type | Wired handset |
| Mounting | Desk/Wall |
| Device lock | Yes |
| Volume control | Buttons |
| Speakerphone | Yes |
| Quick start guide | Yes |
| Handset | Yes |
| Ethernet cable | Yes |
| Direct call | Yes |
| Security | |
| Security algorithms | AES, HTTPS, SIPS |
| Design | |
| Product type | IP Phone |
| Handset type | Wired handset |
| Mounting | Desk/Wall |
| Device lock | Yes |
| Wall mountable | Yes |
| Product colour | Black |
| Performance | |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Phone features | |
| Call transfer | Yes |
| Call return | Yes |
| Phonebook sharing | Yes |
| Number of VoIP accounts | 16 |
| Answering machine | Yes |
| Short Message Service (SMS) | Yes |
| Lines quantity | 10 lines |
| Speed dialling | Yes |
| Redialing | Yes |
| Phonebook capacity | 1000 entries |
| Full duplex | Yes |
| Do not disturb function | Yes |
| Direct call | Yes |
| Conference call | Yes |
| Caller ID | Yes |
| Call waiting | Yes |
| Call pick up | Yes |
| Call park | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
| Anonymous call rejection | Yes |
| Anonymous call | Yes |
| Call history | Yes |
| Emergency call | Yes |
| Management features | |
| Number of programmable keys | 10 |
| Integrated voicemail | Yes |
| Volume control | Buttons |
| Display | |
| Touchscreen | No |
| Display resolution | 480 x 272 pixels |
| Display diagonal | 10.9 cm (4.3") |
| Display | LCD |
| Backlight display | Yes |
| Camera | |
| Front camera | No |
| Audio | |
| Comfort noise generation (CNG) | Yes |
| Automatic gain control | Yes |
| Voice codecs | G.722, G.723.1, G.726, G.729A, G.729B, OPUS, iLBC |
| Voice activity detection | Yes |
| Speakerphone | Yes |
| Microphone mute | Yes |
| Adaptive jitter buffers | Yes |
| Packet loss concealment (PLC) | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN interface type | Gigabit Ethernet |
| Bluetooth version | 4.2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Supported network protocols | FTP/TFTP/HTTP/HTTPS |
| Security algorithms | AES, HTTPS, SIPS |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Maximum data transfer rate | 433 Mbit/s |
| Colour | |
| Product colour | Black |
| Microphone | |
| Microphone mute | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RJ-9 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| AC adapter output current | 2 A |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 4.3 W |
| AC adapter output voltage | 5 V |
| AC adapter input voltage | 100 - 240 V |
| Power consumption (Power over Ethernet (PoE)) | 5.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 233 mm |
| Depth | 222.6 mm |
| Height | 186.1 mm |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Number of handles included | 1 pc(s) |
| Quick start guide | Yes |
| Handset | Yes |
| Ethernet cable | Yes |
| Stand included | Yes |
