In stock — ready to ship
What it is

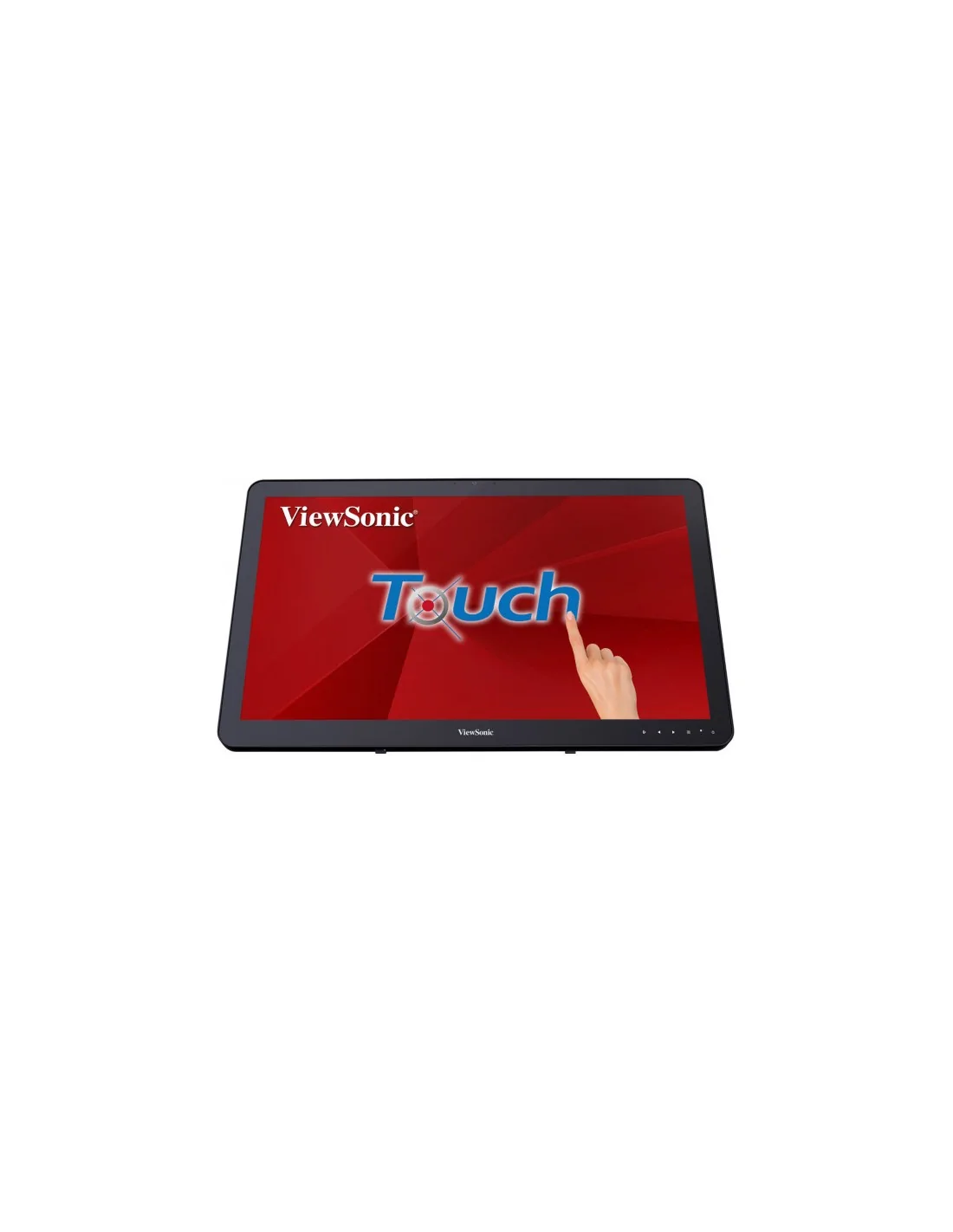

The ViewSonic TD2430 is a 23.6-inch touchscreen monitor featuring a Full HD 1920x1080 resolution and an MVA panel technology. It includes built-in speakers rated at 5 watts, but no microphone.
Who it's for
This monitor suits users needing a mid-sized touchscreen for interactive applications like point of sale, kiosks, or collaborative work. Its Full HD display and touch capabilities fit environments where direct screen interaction is helpful.
Why it's good
The MVA panel provides solid viewing angles and good contrast with a 3000:1 ratio, resulting in clear images and vibrant colours. Having integrated speakers adds convenience for multimedia tasks without extra peripherals.
When to choose it
Opt for this model if you need a responsive touchscreen around 24 inches with decent audio output for general interactive displays. It’s a practical choice without over-specifying beyond its Full HD resolution.
Specifications
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Display | |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 76 Hz |
| HD type | Full HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 50000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2715 x 0.2715 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 59.9 cm (23.6") |
| Contrast ratio (typical) | 3000:1 |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | VA |
| Display diagonal (metric) | 60 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 200 cd/m² |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP |
| Product colour | Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| Headphone out | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Number of USB Type-B upstream ports quantity | 1 |
| Technical details | |
| Mobile operating systems supported | Android |
| HDMI | Yes |
| Display viewable area (HxV) | 521.28 x 293.22 mm |
| Built-in microphone | No |
| Product colour | Black |
| Sustainability certificates | ENERGY STAR, ErP |
| Compliance certificates | CE, REACH, RoHS |
| Power supply type | AC |
| Weight (with stand) | 5.51 kg |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 20 - 53° |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 25 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 404623 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width (with stand) | 573 mm |
| Depth (with stand) | 47 mm |
| Height (with stand) | 353 mm |
| Weight (with stand) | 5.51 kg |
| Package width | 643 mm |
| Package depth | 140 mm |
| Package height | 435 mm |
| Package weight | 7.1 kg |
| Weight | 5.5 kg |
| Packaging data | |
| Package width | 643 mm |
| Package depth | 140 mm |
| Package height | 435 mm |
| Package weight | 7.1 kg |
| Cables included | AC, Audio (3.5mm), HDMI, USB |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), HDMI, USB |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 404623 |
| Sustainability certificates | ENERGY STAR, ErP |
| Other features | |
| Mobile operating systems supported | Android |
| Display viewable area (HxV) | 521.28 x 293.22 mm |
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP |
| Weight | 5.5 kg |
| Compliance certificates | CE, REACH, RoHS |
| HDMI | Yes |
| Power supply type | AC |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Certificates | |
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP |
| Logistics data | |
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 189 cm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528521000 |
Contact Creative Systems to confirm this monitor’s suitability and stock before purchasing.
