Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for PtMP (point-to-multipoint) environments like hotels and MDUs.
One Fiber, Multiple Services
Connect a fiber optic cable to the EAP625GP-Wall to connect cameras, PCs, and TVs to carry data, voice, wired and wireless internet, HD video, and VoIP services.
Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.
Omada Mesh and 802.11k/v roaming ensure a consistently smooth and reliable connection.
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for PtMP (point-to-multipoint) environments like hotels and MDUs.
One Fiber, Multiple Services
Connect a fiber optic cable to the EAP625GP-Wall to connect cameras, PCs, and TVs to carry data, voice, wired and wireless internet, HD video, and VoIP services.
Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.
Omada Mesh and 802.11k/v roaming ensure a consistently smooth and reliable connection.
| Data transmission | |
|---|---|
| Maximum data transfer rate | 1201 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Frequency band | 2.4 - 5 GHz |
| Number of users | 120 user(s) |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 1201 Mbit/s |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 5 GHz |
| Network | |
| Number of users | 120 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4 - 5 GHz |
| Number of users | 120 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 1201 Mbit/s |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Coverage area | 50 m² |
| Wireless meshing | Yes |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| Ports & interfaces | |

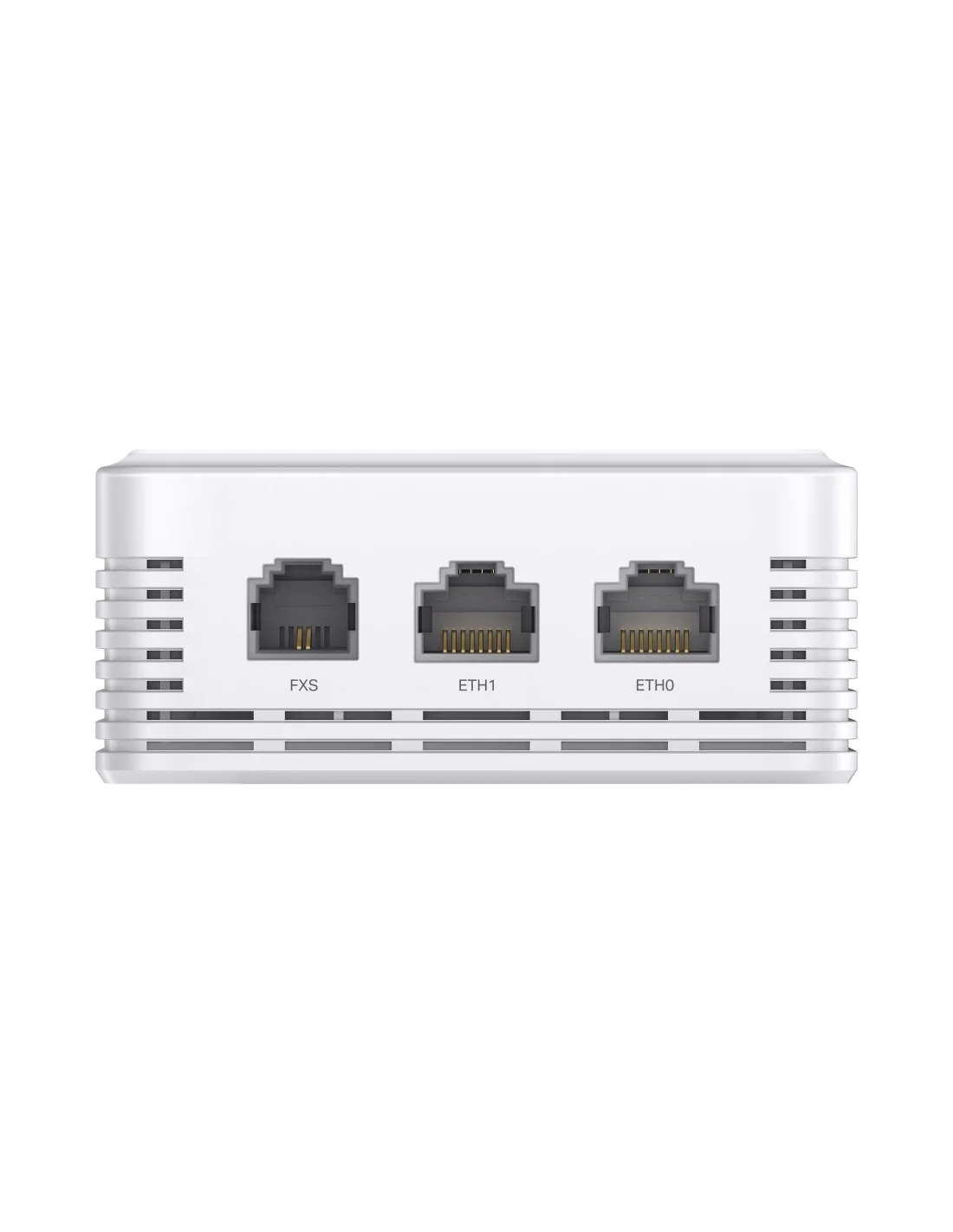

| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Design | |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| Technical details | |
| Reset button | Yes |
| Weight & dimensions | |
| Width | 143 mm |
| Depth | 86 mm |
| Weight | 350 g |
| Height | 44.6 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
