Networking & Data Centre
What it is

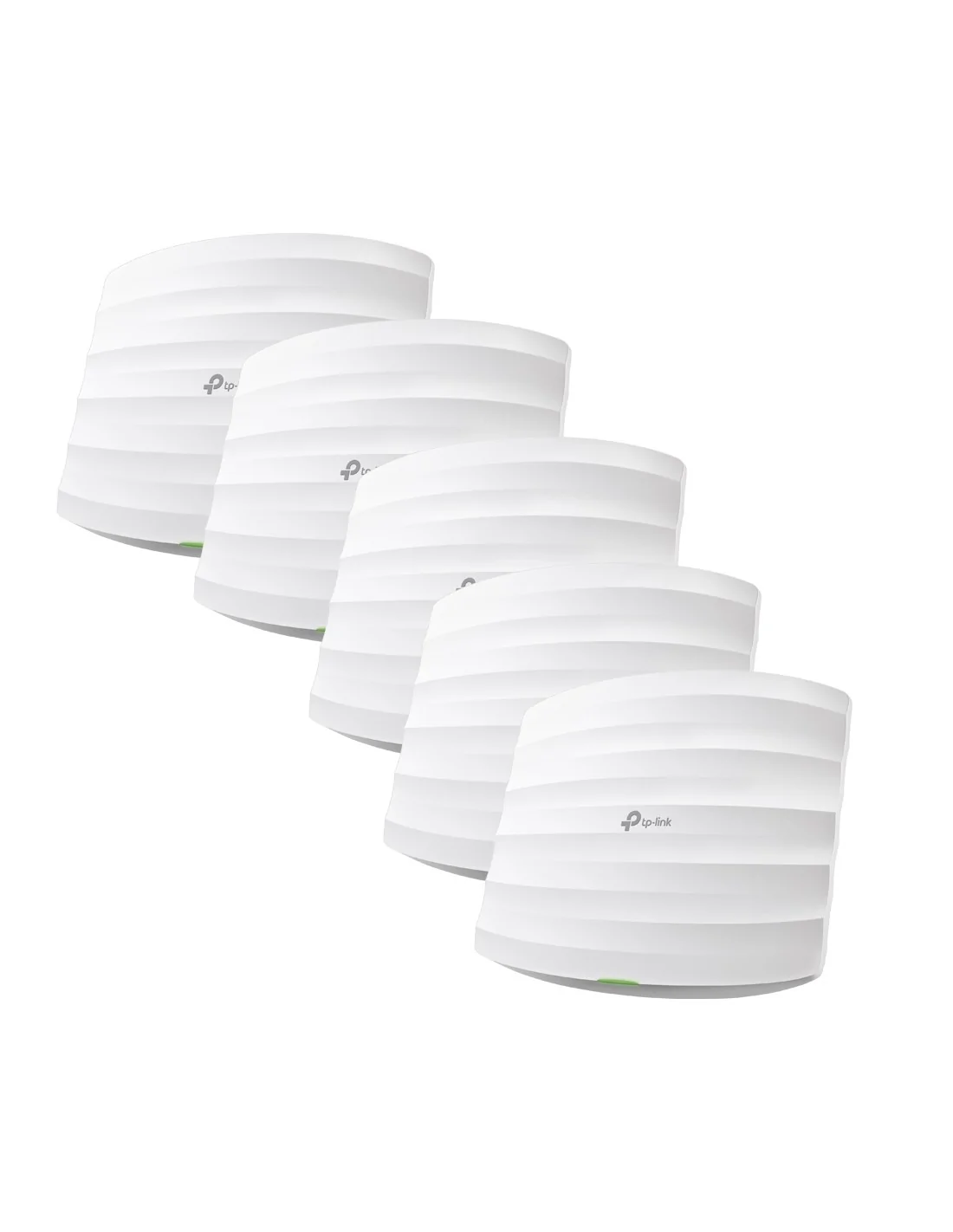

The TP-Link Omada EAP245 (5-Pack) is a set of five dual-band AC1750 wireless access points designed for ceiling or wall mounting. Each unit delivers up to 1750 Mbit/s combined — 450 Mbit/s on 2.4 GHz and 1300 Mbit/s on 5 GHz — and is powered via PoE (802.3af), so no separate power runs are needed. All five are managed centrally through the Omada SDN controller, either hardware-based or via the cloud.
Who it's for
This pack suits businesses, schools, hotels, or any multi-room environment that needs reliable, consistent Wi-Fi across a wider area. It's a practical choice for installers rolling out a managed wireless network across a single site, where buying five units together keeps costs and deployment time down.
Why it's good
- AC1750 dual-band with MU-MIMO handles multiple devices simultaneously without the slowdown you get on older single-user MIMO units.
- Band steering automatically moves capable devices to 5 GHz, keeping the 2.4 GHz band clear for older hardware.
- Airtime Fairness stops slower devices from hogging bandwidth and dragging down the whole network.
- Supports up to 16 SSIDs per AP — useful for separating staff, guest, and IoT traffic with VLAN assignment per SSID.
- 27 dBm transmit power with beamforming gives solid coverage in larger rooms without needing additional units.
- PoE-powered at just 12.3 W per unit — clean installs with no wall adapters.
When to choose it
Choose this when you're covering a medium-to-large site and want a properly managed wireless network rather than a collection of standalone APs. It works best when paired with an Omada controller — if you have no controller in your setup and just need a simple AP, a standalone unit makes more sense. The 5-pack price point at €530 ex VAT makes it a strong option for project-based deployments where consistent coverage and central control are the priority.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1750 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Transmitting power | 27 dBmW |
| Reset button | Yes |
| Frequency band | 2.4, 5 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1750 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Compatible operating systems | Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 |
| Wireless LAN features | |
| Frequency band | 2.4, 5 GHz |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Web-based management | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Transmitting power | 27 dBmW |
| Frequency band | 2.4, 5 GHz |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum data transfer rate | 1750 Mbit/s |
| Transmitting power (FCC) | 24 dBm |
| Transmitting power (CE) | 20 - 23 dBm |
| Automatic channel scanning | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| Virtual LAN features | SSID-based VLAN assignment |
| BeamForming | Yes |
| Compatible operating systems | Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 |
| Protocols | |
| Management protocols | HTTP/HTTPS |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (typical) | 12.3 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| AC input voltage | 48 V |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Transmitting power | 27 dBmW |
| Reset button | Yes |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Indication | |
| LED indicators | Yes |
| Software | |
| Automatic channel scanning | Yes |
| Access Control List (ACL) | Yes |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 47.5 mm |
| Package width | 257.5 mm |
| Package depth | 285.5 mm |
| Package height | 283.5 mm |
| Package weight | 3.54 kg |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Package width | 257.5 mm |
| Package depth | 285.5 mm |
| Package height | 283.5 mm |
| Package weight | 3.54 kg |
| Cables included | AC |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Cables included | AC |
| Quantity per pack | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Compatible operating systems | Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Quantity per pack | 5 pc(s) |
| Harmonized System (HS) code | 85176990 |
Ready to spec this into your project? Get an Installation Price or Talk to an AV Specialist about the right controller and switch setup to go with it.
