What This Product Does

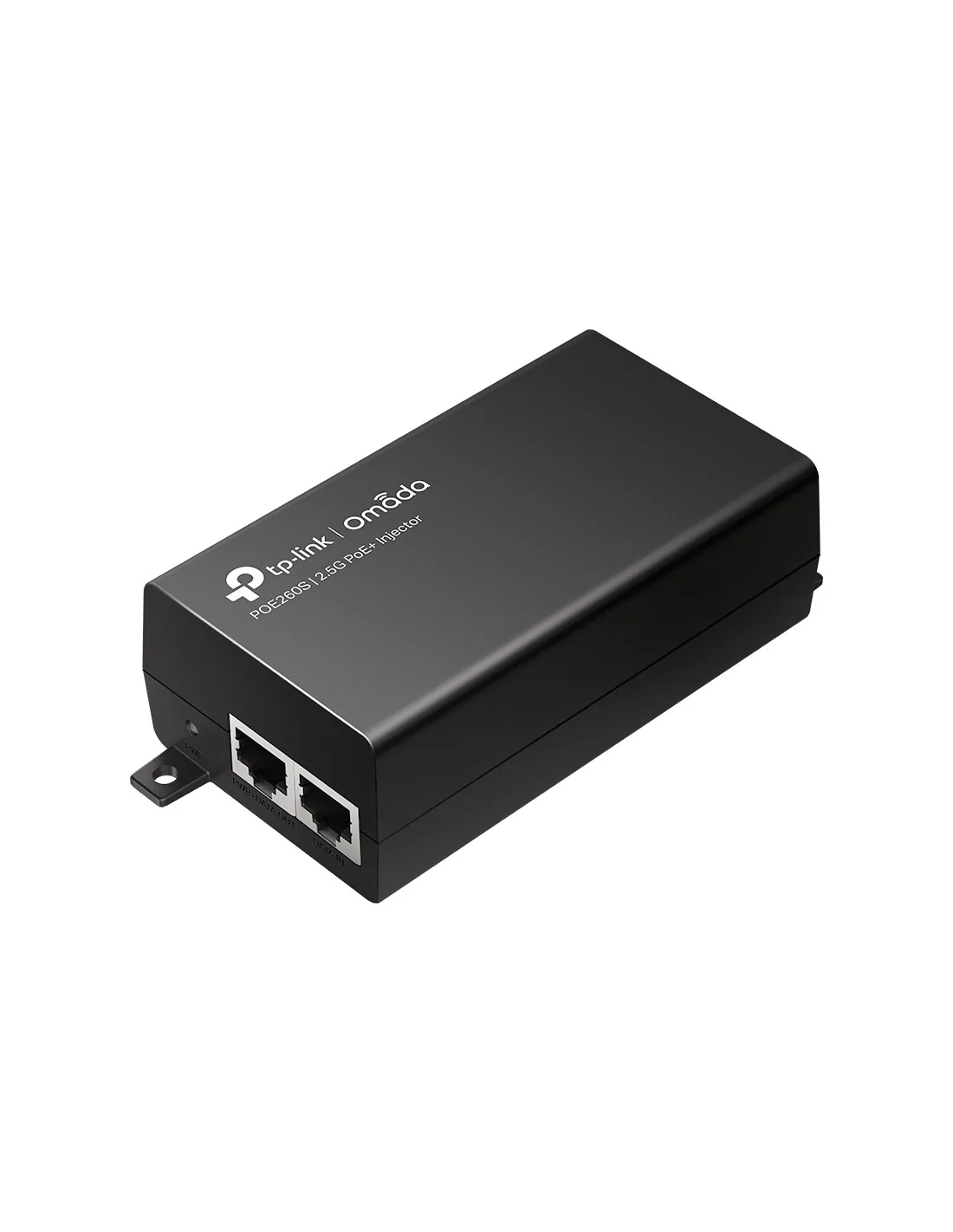

The 2.5G PoE+ Injector POE260S (TL-POE260S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or other equivalent products, to expand your network to where there are no power line or outlet, where you wish to fix device such as 2.5G AP, HD IP Camera or IP Phone, etc.
The 2.5G PoE+ Injector POE260S (TL-POE260S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or other equivalent products, to expand your network to where there are no power line or outlet, where you wish to fix device such as 2.5G AP, HD IP Camera or IP Phone, etc.
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | |
| Wall mountable | Yes |
| Easy to install | Yes |
| Maximum operating distance | 100 m |
| Product colour | Black |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Package type | Box |
| Certification | FCC, CE, RoHS |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Output power | 30 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 59.4 mm |
| Height | 36.8 mm |
| Package weight | 500 g |
| Package depth | 230 mm |
| Package width | 170 mm |
| Package height | 80 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Number of products included | 1 pc(s) |
| Wall mounting kit | Yes |
| Package type | Box |
| Packaging data | |
| Package weight | 500 g |
| Package type | Box |
| Package depth | 230 mm |
| Package width | 170 mm |
| Package height | 80 mm |
| Technical details | |
| Number of products included | 1 pc(s) |
| Package width | 170 mm |
| Package height | 80 mm |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
