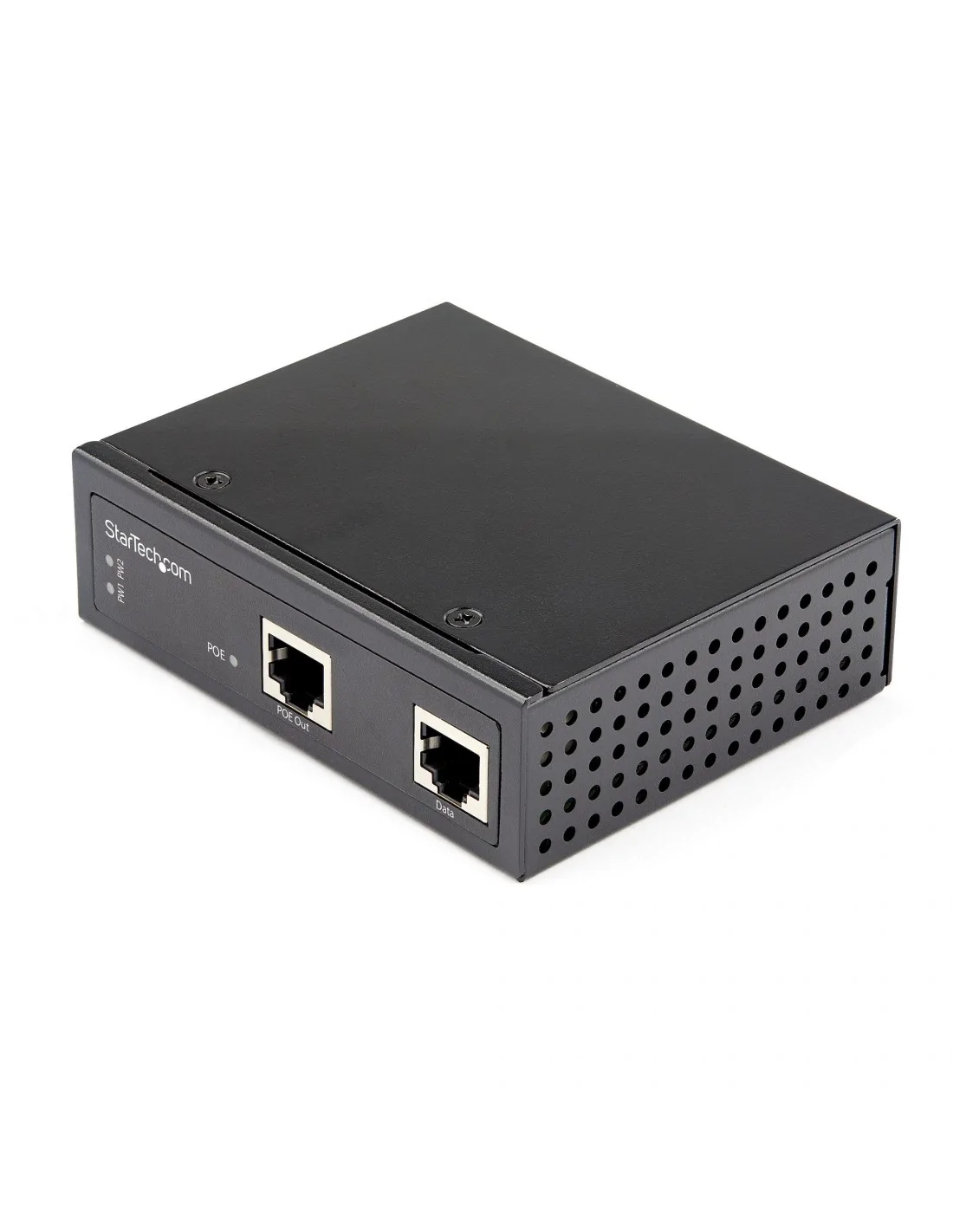

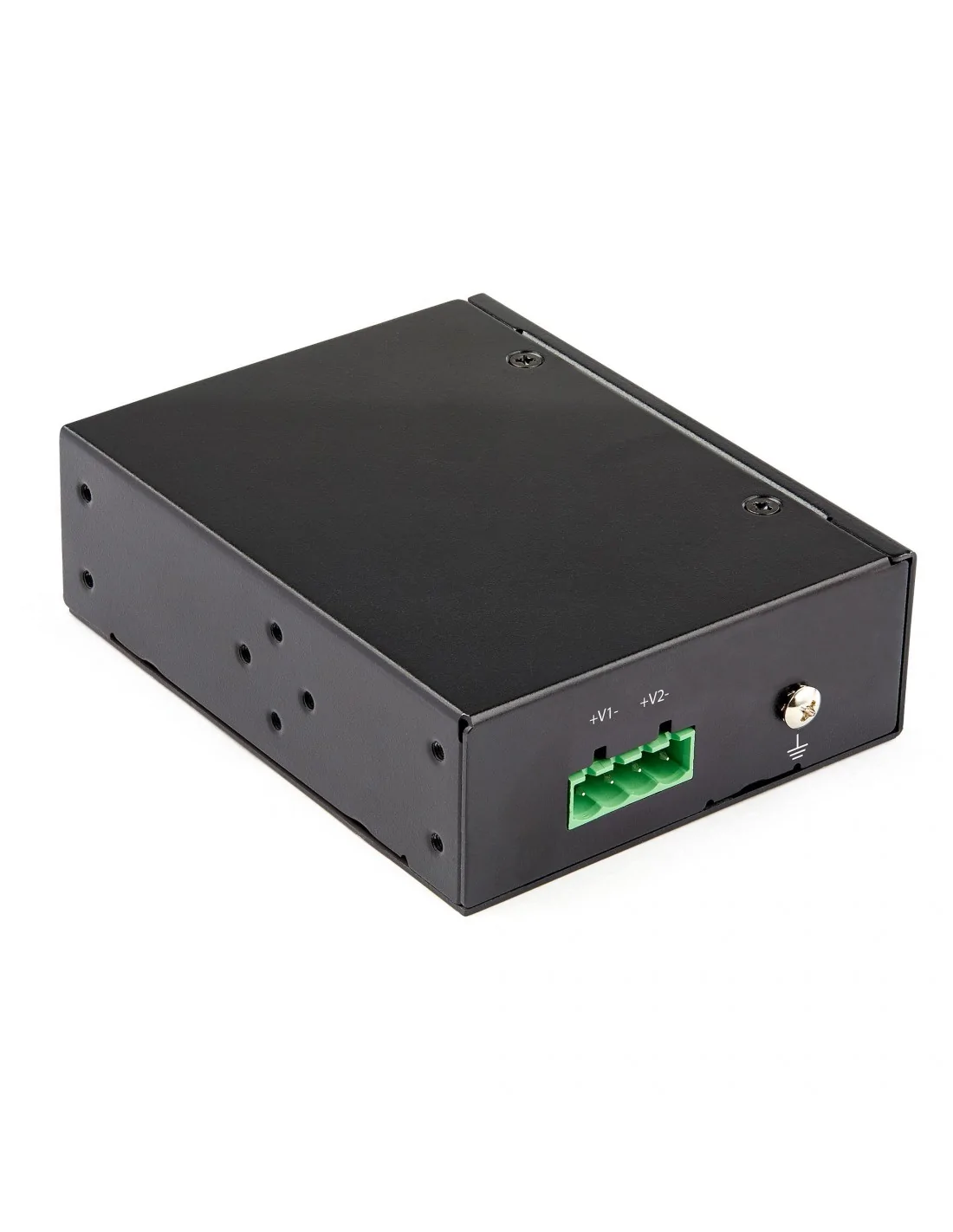

Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
Flexible Configurations for a Variety of Applications

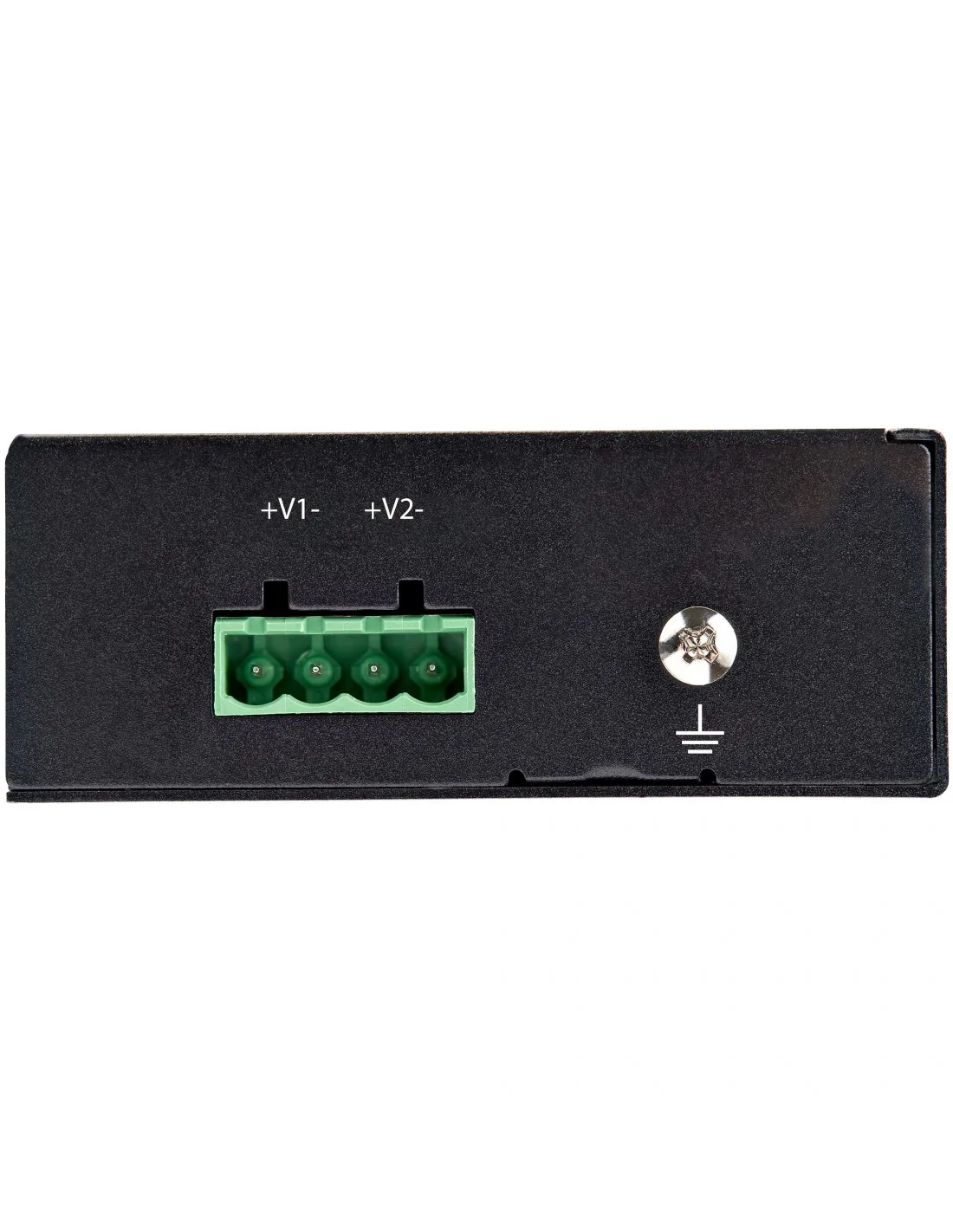

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
Flexible Configurations for a Variety of Applications
Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
| Performance | |
|---|---|
| Jumbo frames support | Yes |
| Duplex system | Full |
| International Protection (IP) code | IP30 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Type | Network repeater |
| Maximum transfer distance | 100 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 1000 Mbit/s |
| Chipset | Microsemi PD69204 |
| Mean time between failures (MTBF) | 540891 h |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 2 |
| Terminal block port | Yes |
| Design | |
| Housing material | Aluminium |
| LED indicators | Yes |
| Certification | CE, FCC, UL |
| Product colour | Black |
| Management features | |
| Supported network protocols (IPv4) | CSMA/CD |
| Power | |
| Power plug type | Type N |
| Power over Ethernet (PoE) voltage range | 48 - 56 V |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 32 mm |
| Depth | 82 mm |
| Height | 104 mm |
| Weight | 174 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 169 mm |
| Package depth | 214 mm |
| Package height | 67 mm |
| Package weight | 416 g |
| Technical details | |
| Jumbo frames support | Yes |
| Duplex system | Full |
| International Protection (IP) code | IP30 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LED indicators | Yes |
| Type | Network repeater |
| Maximum transfer distance | 100 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 1000 Mbit/s |
| Chipset | Microsemi PD69204 |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | CE, RoHS |
| Colour | |
| Product colour | Black |
| Endurance | |
| Mean time between failures (MTBF) | 540891 h |
| Certificates | |
| Certification | CE, FCC, UL |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 248 mm |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85176990 |
