Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber

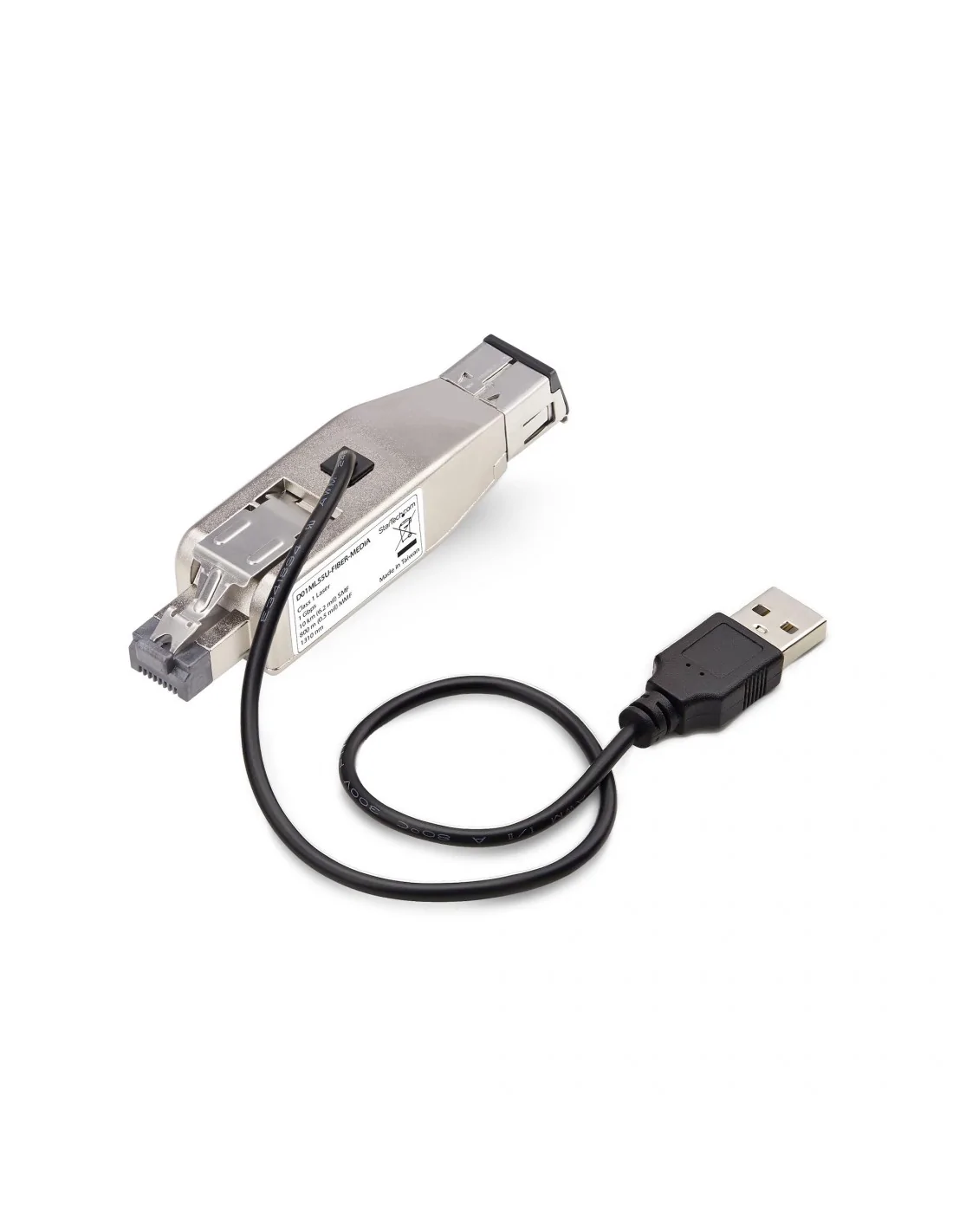

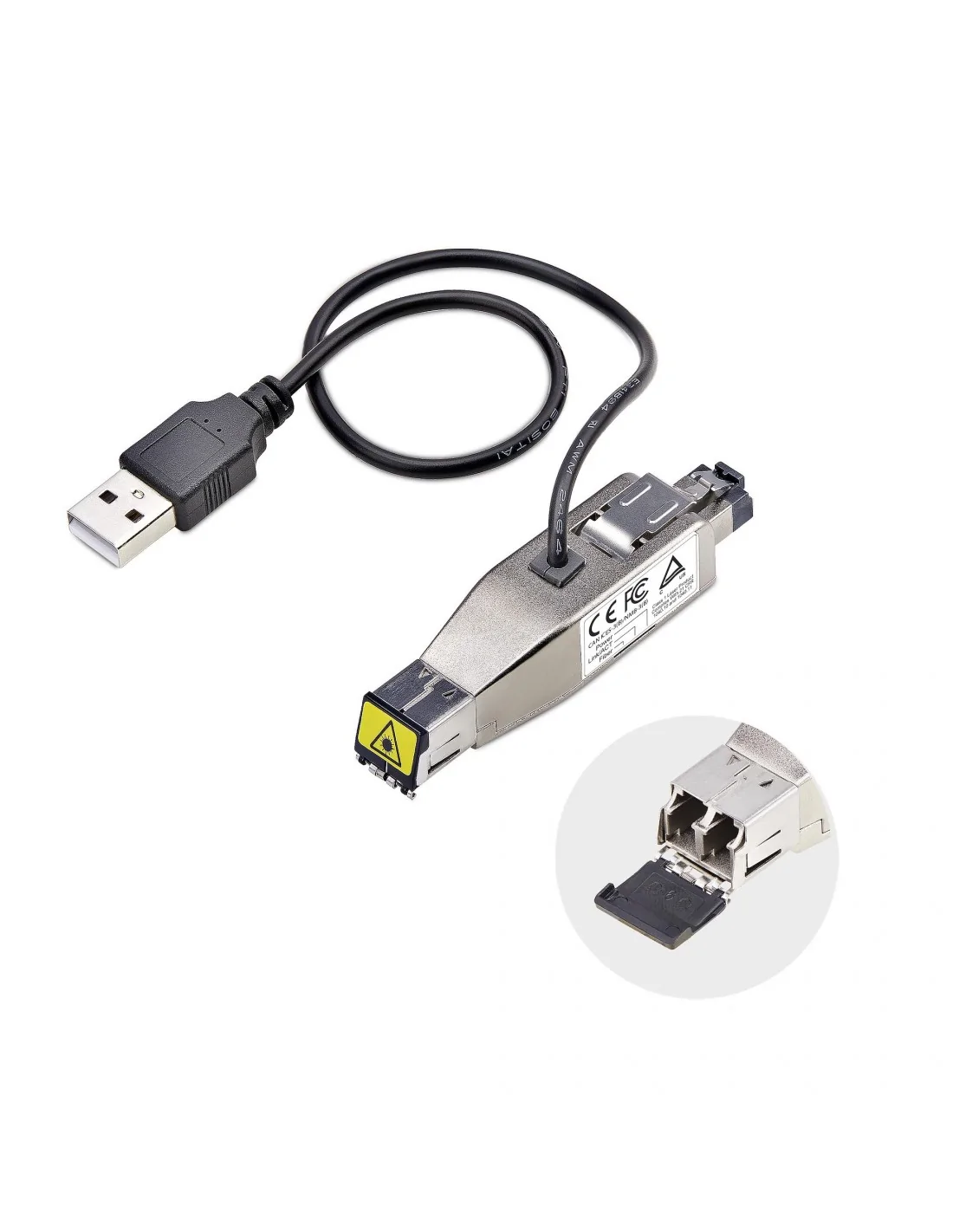

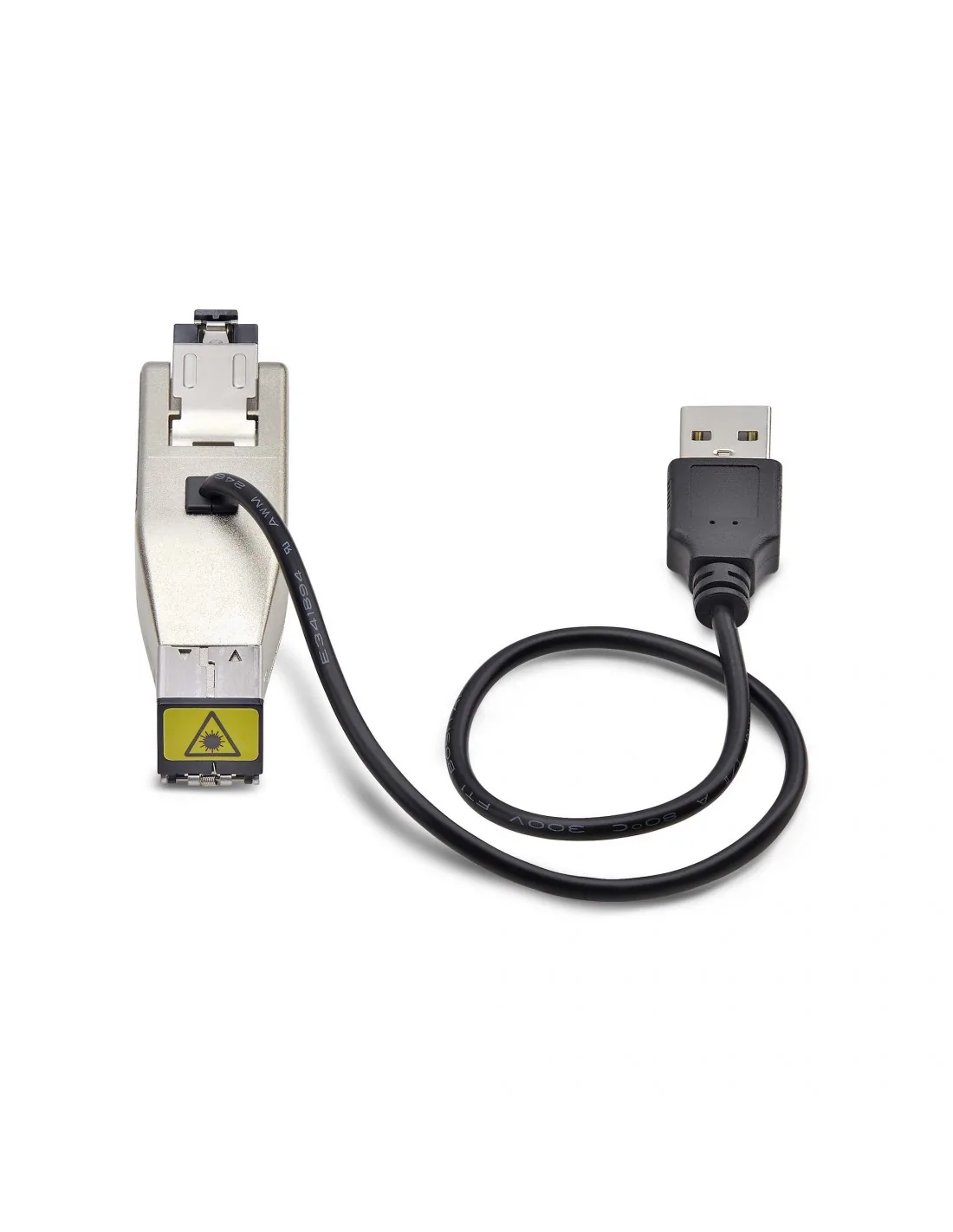

This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.
Simplified Installation
The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Network Features
The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility
This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.
Simplified Installation
The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Network Features
The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility
This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
| Network | |
|---|---|
| Auto-negotiation | Yes |
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 1000Base-LX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Chipset | Marvell - 88E1512 |
| Fiber optic connector | LC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1000 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Auto-negotiation | Yes |
| Features | |
| International Protection (IP) code | IP20 |
| Housing material | Metal, Plastic |
| LED indicators | Activity, Link, Power |
| Product colour | Black, Silver |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| Power | |
| Power consumption (max) | 2.5 W |
| Power over Ethernet (PoE) | No |
| Weight & dimensions | |
| Width | 82 mm |
| Depth | 20 mm |
| Weight | 49 g |
| Height | 18 mm |
| Package depth | 139 mm |
| Package width | 80 mm |
| Package height | 35 mm |
| Package weight | 80 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Packaging content | |
| User guide | Yes |
| Packaging data | |
| Package depth | 139 mm |
| Package width | 80 mm |
| Package height | 35 mm |
| Package weight | 80 g |
| Technical details | |
| International Protection (IP) code | IP20 |
| Housing material | Metal, Plastic |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1000 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Internal | No |
| Compliance certificates | Trade Agreements Act (TAA) |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| International Protection (IP) code | IP20 |
| Housing material | Metal, Plastic |
| LED indicators | Activity, Link, Power |
| Product colour | Black, Silver |
| Internal | No |
| Colour | |
| Product colour | Black, Silver |
| Certificates | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 126 mm |
| Products per master (outer) case | 24 pc(s) |
