Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

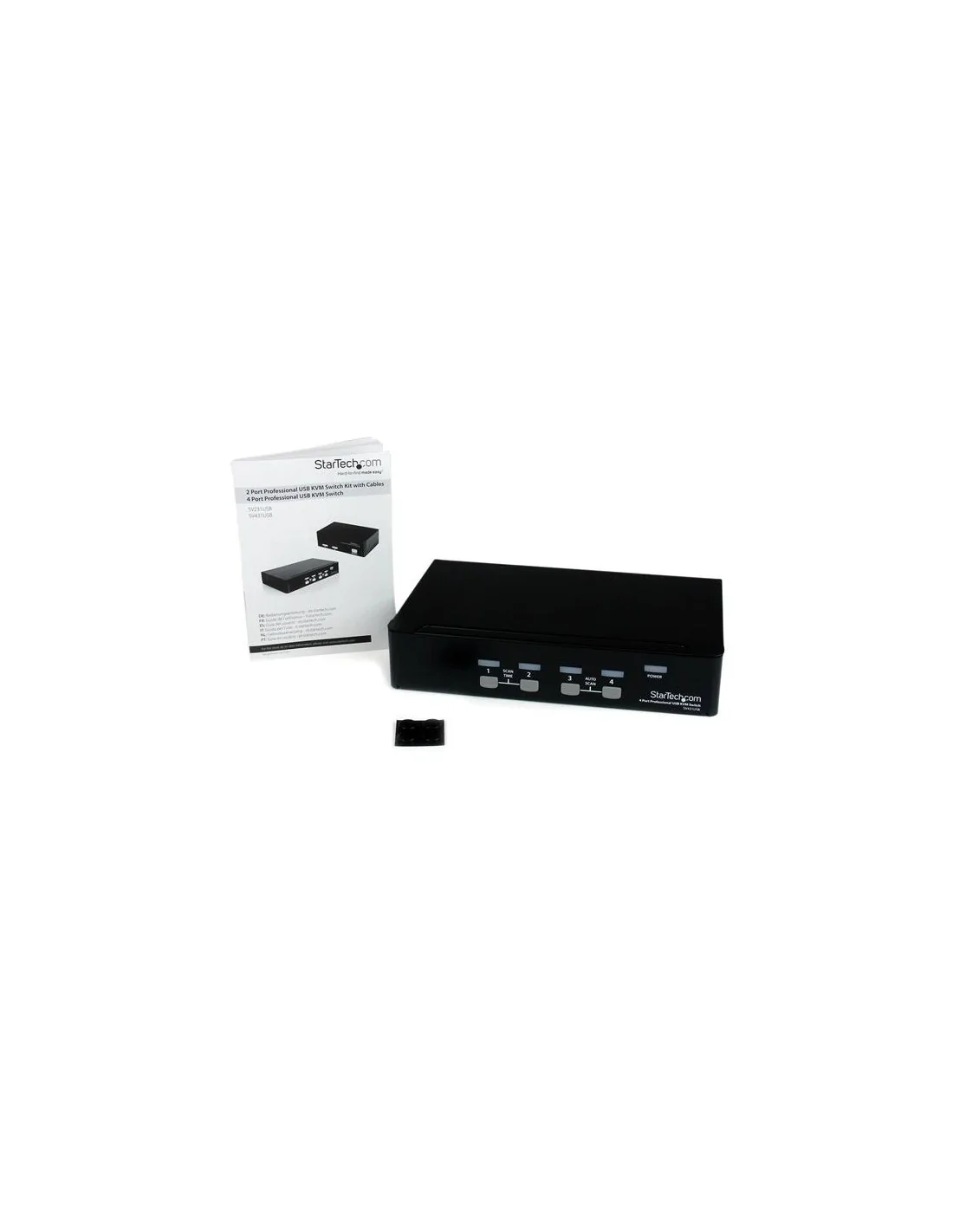

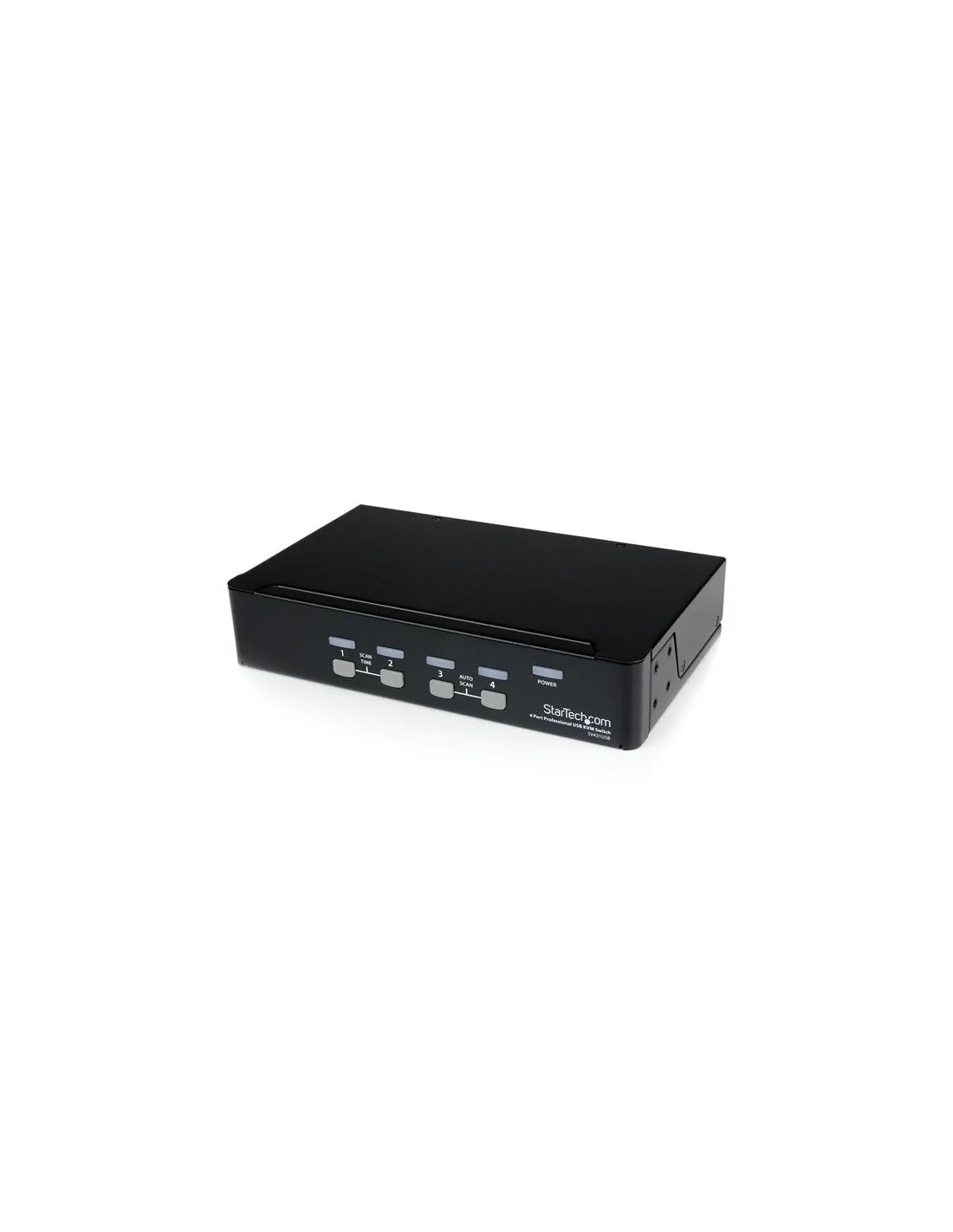

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | USB A, VGA (D-Sub) |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | No |
| DC-in jack | Yes |
| Performance | |
| Daisy chain | No |
| Maximum resolution | 1920 x 1440 pixels |
| Scan interval | 3,8,15,30 s |
| Number of users | 1 user(s) |
| Maximum cable length | 5 m |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Scan interval | 3,8,15,30 s |
| On Screen Display (OSD) | No |
| Number of users | 1 user(s) |
| Hot keys | No |
| IP control | No |
| Compliance certificates | RoHS |
| Design | |
| Mean time between failures (MTBF) | 82506 h |
| Maximum cable length | 5 m |
| Product colour | Black |
| Rack mounting | Yes |
| Hot keys | No |
| Certification | CE, FCC, REACH, TAA, cUR |
| Rack capacity | 1U |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 0.4 A |
| Output current | 2 A |
| Power plug type | Type N |
| Output voltage | 5 V |
| Input voltage | 110-240 V |
| Video | |
| Maximum resolution | 1920 x 1440 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 988 g |
| Package width | 195 mm |
| Package depth | 296 mm |
| Package height | 74 mm |
| Package weight | 1.3 kg |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 296 mm |
| Package height | 74 mm |
| Package weight | 1.3 kg |
| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, REACH, TAA, cUR |
| Other features | |
| IP control | No |
| Hot keys | No |
| Logistics data | |
| Master (outer) case width | 455 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 330 mm |
| Products per master (outer) case | 12 pc(s) |
| Harmonized System (HS) code | 85176200 |
