DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant
This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.
4K 60Hz Resolution
This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Analog and Digital Audio
This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.
Intuitive Control

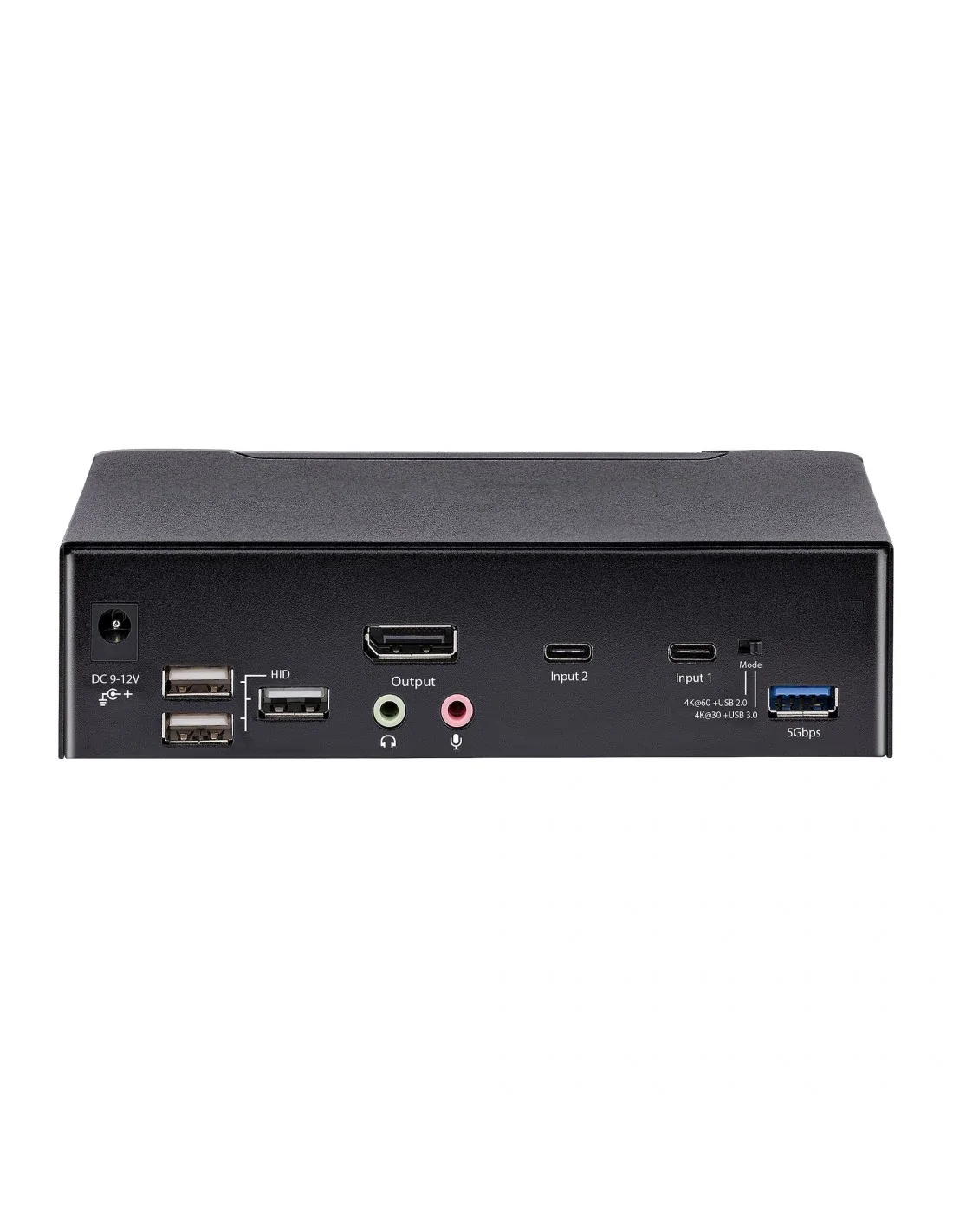

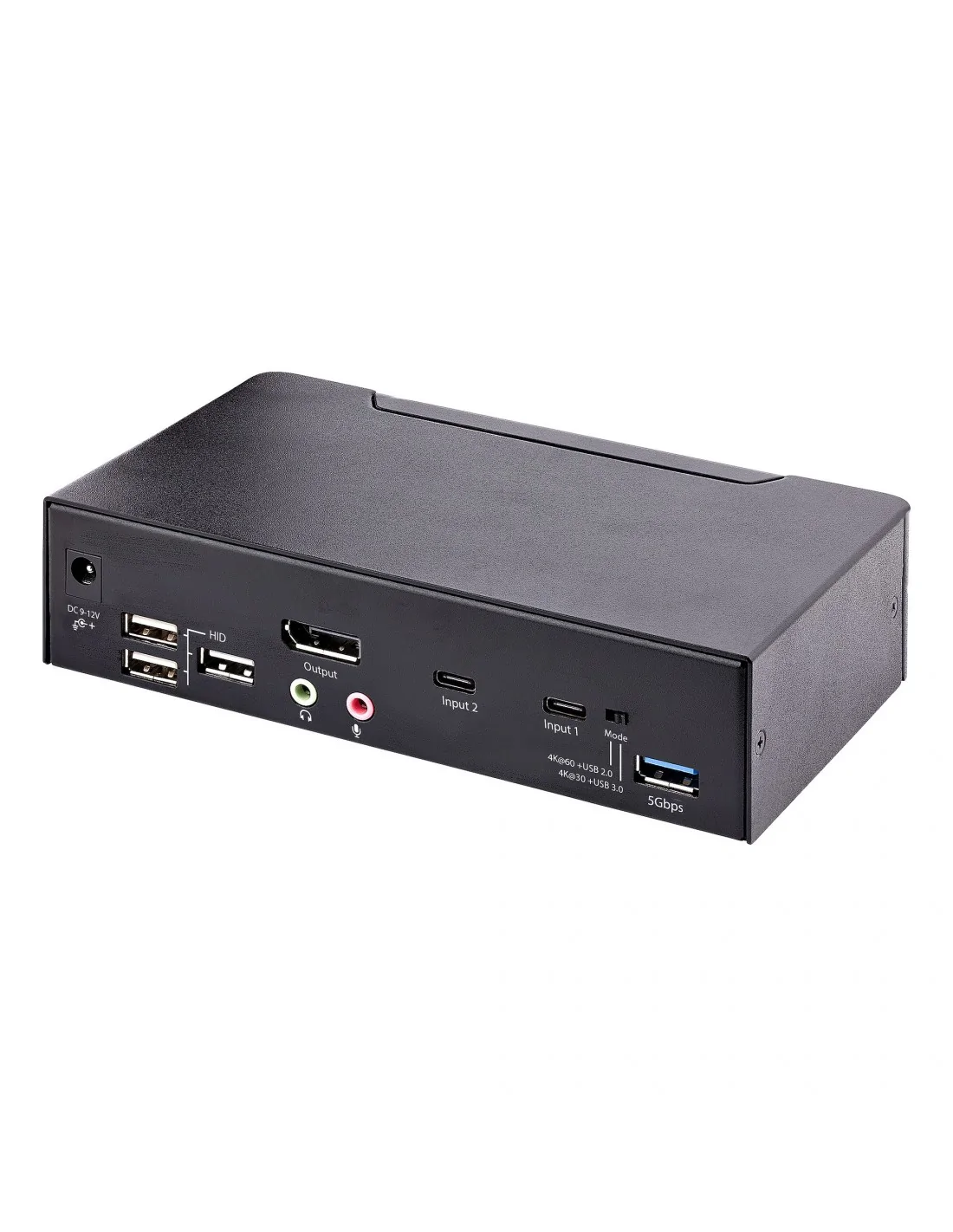

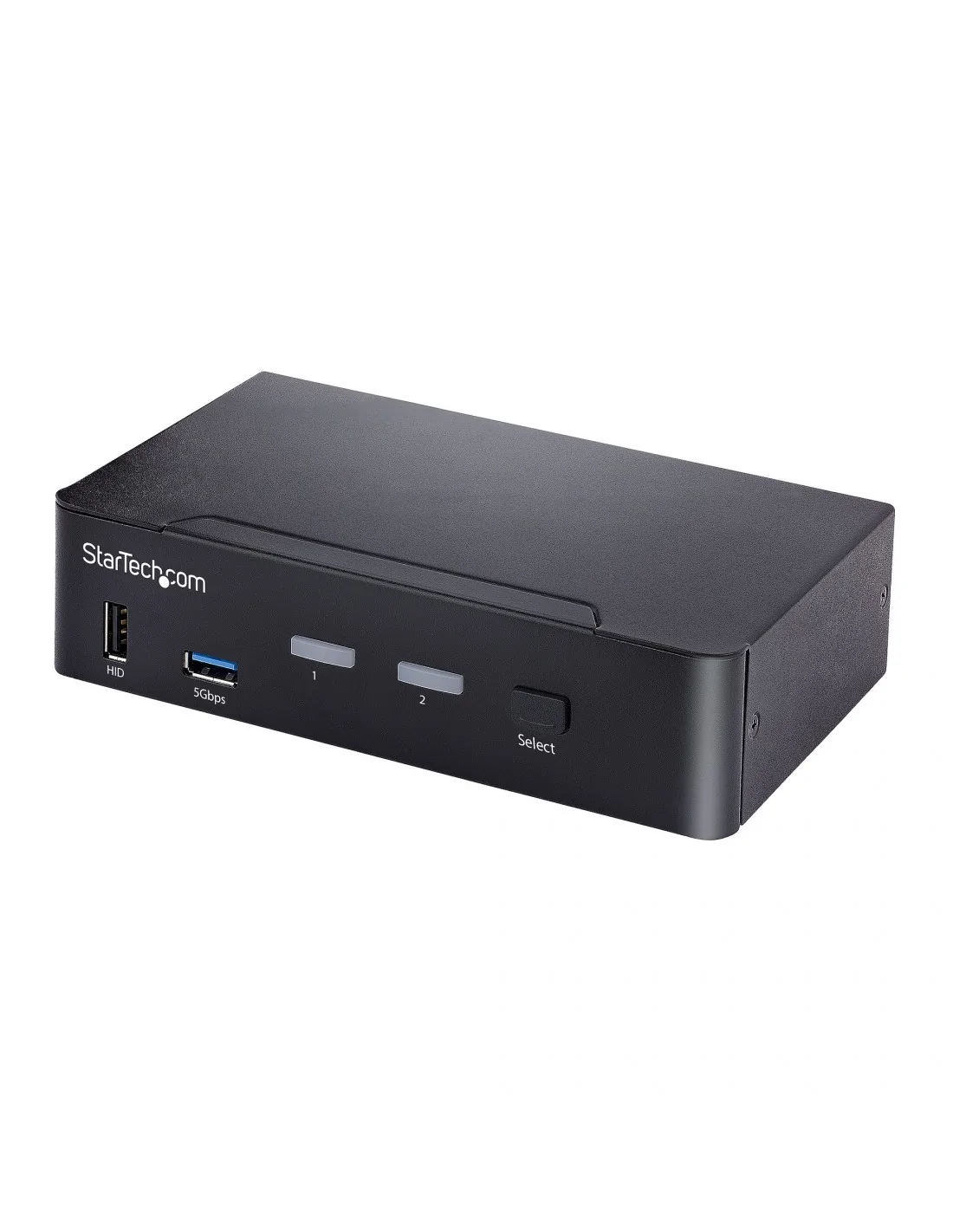

The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.
4K 60Hz Resolution
This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Analog and Digital Audio
This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.
Intuitive Control
The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 6 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort |
| Number of microphone inputs | 1 |
| DisplayPort version | 1.2 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Headphone outputs | 1 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Console DisplayPorts ports quantity | 1 |
| HDCP | Yes |
| Performance | |
| Chipset | Parade - PS8461, Etron - EJ899I |
| HDCP | Yes |
| Data transfer rate (max) | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 5120 x 1440 pixels |
| Scan interval | 3,8,15,30 s |
| Audio channels | 2.0 |
| Number of displays supported | 1 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Scan interval | 3,8,15,30 s |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| USB hub | Yes |
| Design | |
| Mean time between failures (MTBF) | 158000 h |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Input current | 1.2 A |
| Output current | 3 A |
| Power plug type | Type M |
| Output voltage | 12 V |
| Power source | AC |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 5120 x 1440 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 160 mm |
| Height | 40 mm |
| Weight | 600 g |
| Package width | 186 mm |
| Package depth | 240 mm |
| Package height | 94 mm |
| Package weight | 1 kg |
| Packaging data | |
| Package width | 186 mm |
| Package depth | 240 mm |
| Package height | 94 mm |
| Package weight | 1 kg |
| Packaging content | |
| Rubber feet | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Other features | |
| IP control | No |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 397 mm |
| Master (outer) case height | 257 mm |
| Products per master (outer) case | 6 pc(s) |
