StarTech.com 10GbE Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-X SFP+, Single-Mode / Multi-

Connect a Gigabit copper network to a Gigabit fiber network using an SFP+ transceiver of your choice.

High-Speed Copper-to-Fiber Conversion

This compact 10G media converter enables seamless copper-to-fiber connectivity for high-speed network upgrades and extended reach. Featuring an open SFP+ slot, it converts 10GBASE-T (RJ-45) to 10G fiber and supports multi-mode or single-mode transceivers (e.g., 10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.

Versatile Mounting and Deployment

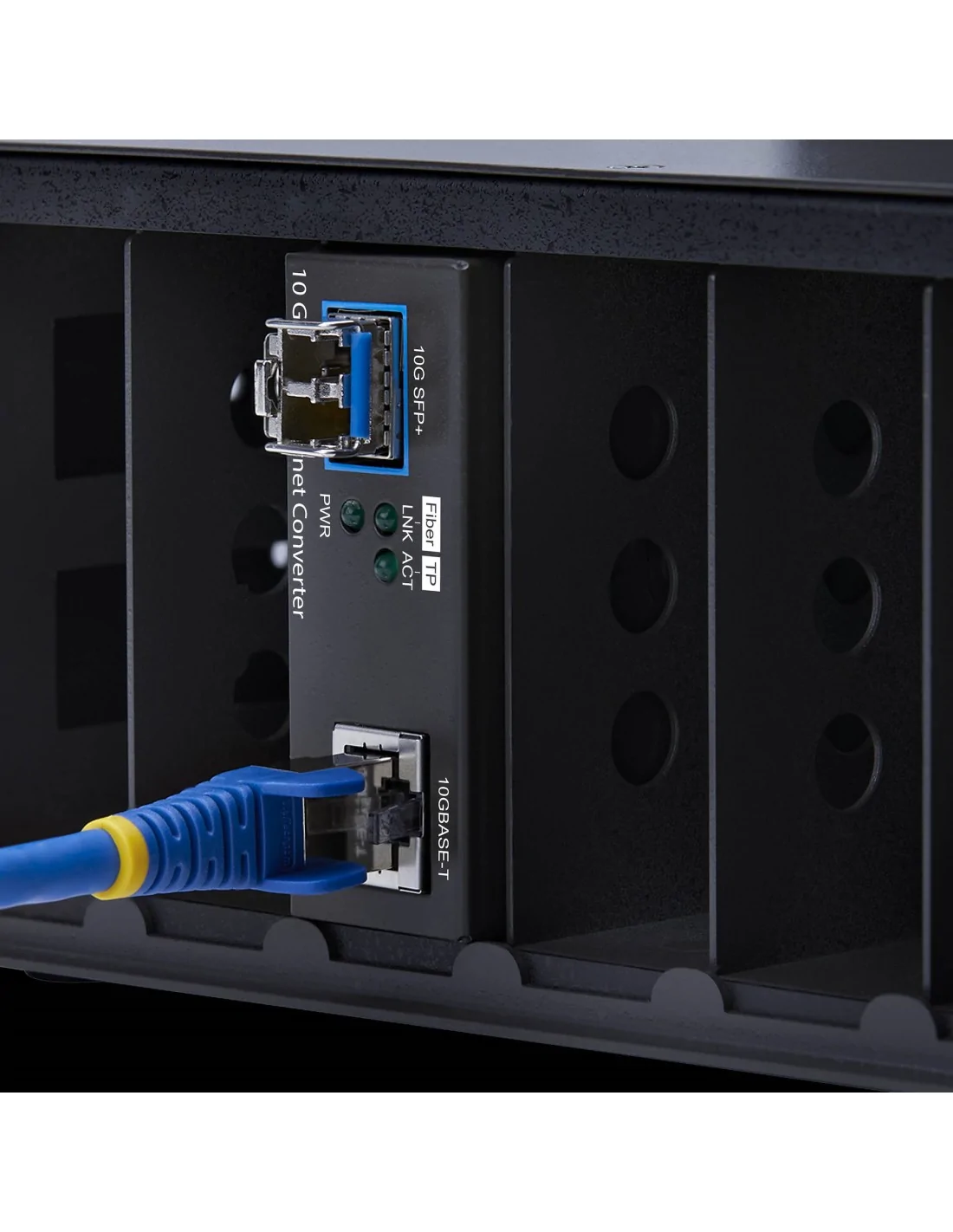

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.

Optimized for 10Gbps Networks

Built for 10G speeds, the converter supports 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across 10G links.

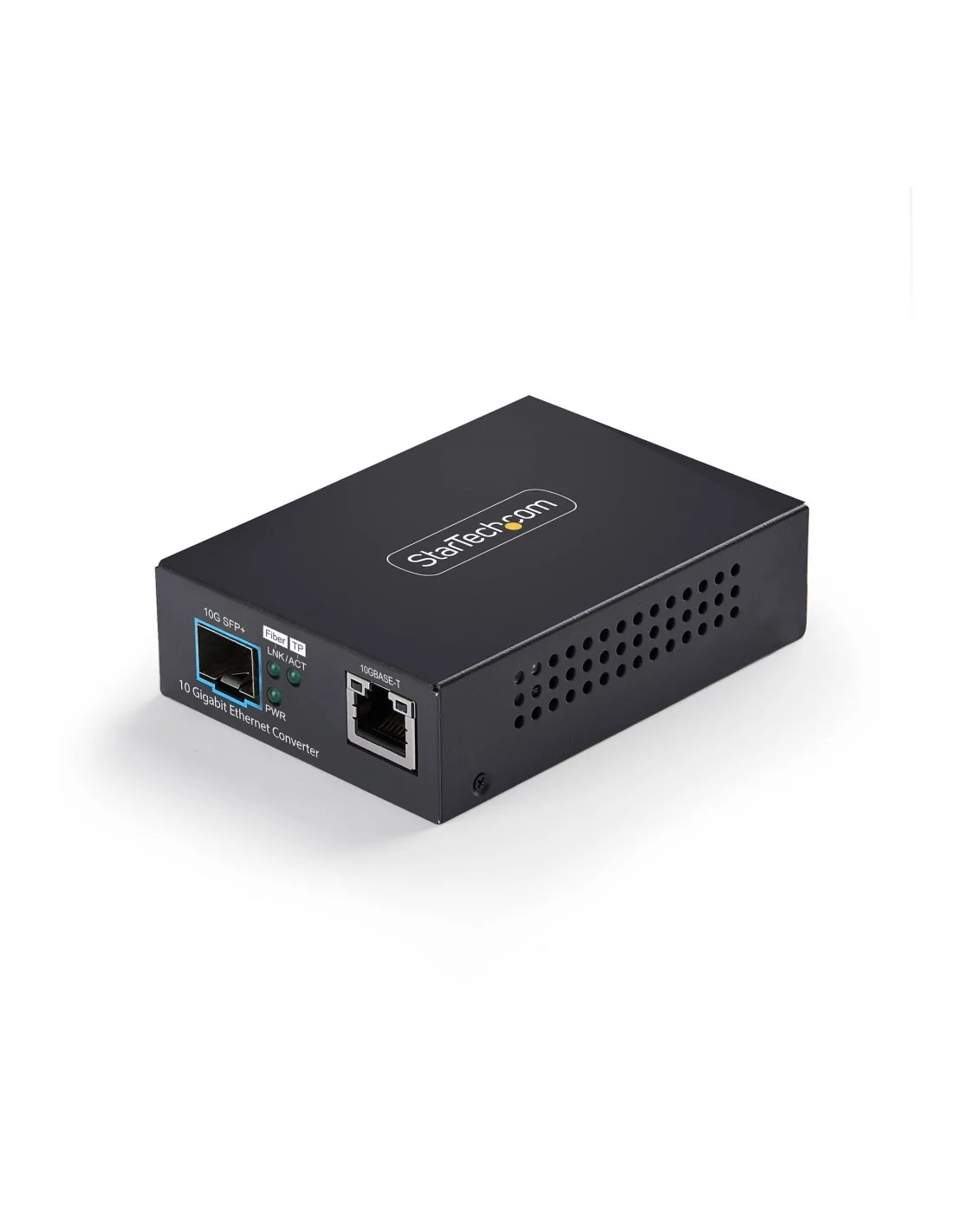

Efficient, Compact Design

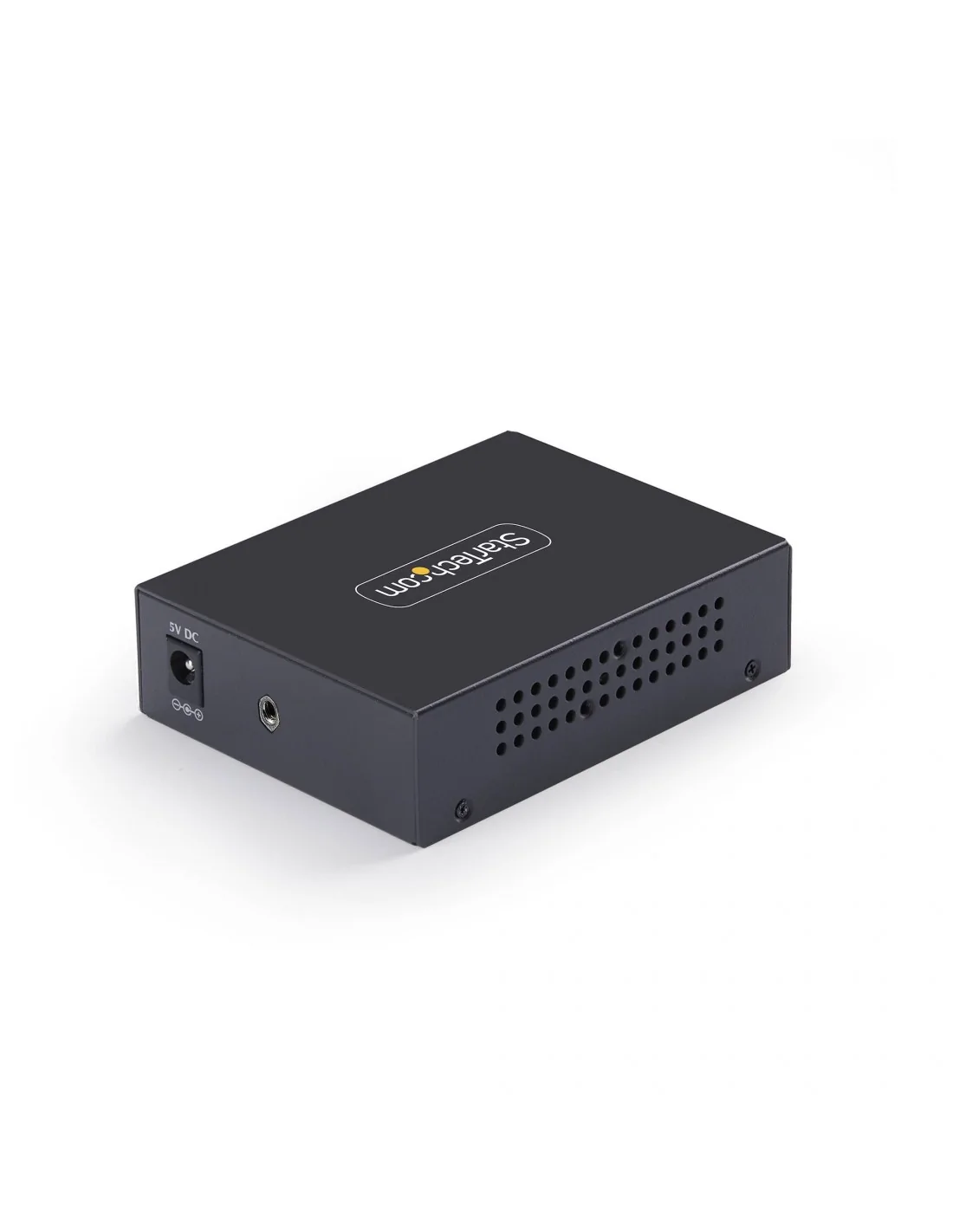

With low 5.3W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.

Network
Jumbo frames support	Yes
Flow control support	Yes
Auto-negotiation	Yes
Jumbo frames	16000
Converter input interface	10GBase-T
Networking standards	IEEE 802.3
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Duplex system	Full
Converter output interface	10GBase-X
Auto MDI/MDI-X	Yes
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	SFP+
Performance
Fiber mode structure	Multi-mode, Single-mode
Mean time between failures (MTBF)	50000 h
Jumbo frames support	Yes
Flow control support	Yes
Auto-negotiation	Yes
Plug and Play	Yes
Features
Plug and Play	Yes
LED indicators	Activity, Link, Power
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP+
DC-in jack	Yes
Power
Input voltage	100 - 240 V
Input current	0.4 A
Output voltage	5 V
Output current	2 A
External power adapter	Yes
Weight & dimensions
Width	93.5 mm
Depth	70 mm
Weight	216 g
Height	26 mm
Package depth	149 mm
Package width	95 mm
Package height	92 mm
Package weight	398 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
AC adapter included	Yes
User guide	Yes
Packaging data
Package depth	149 mm
Package width	95 mm
Package height	92 mm
Package weight	398 g
Technical details
Fiber mode structure	Multi-mode, Single-mode
Plug and Play	Yes
Internal	No
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Indication
LED indicators	Activity, Link, Power
Design
LED indicators	Activity, Link, Power
Product colour	Black
Internal	No
Endurance
Mean time between failures (MTBF)	50000 h
Management features
Plug and Play	Yes
Colour
Product colour	Black
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width	405 mm
Master (outer) case length	490 mm
Master (outer) case height	330 mm
Products per master (outer) case	20 pc(s)
