What it is

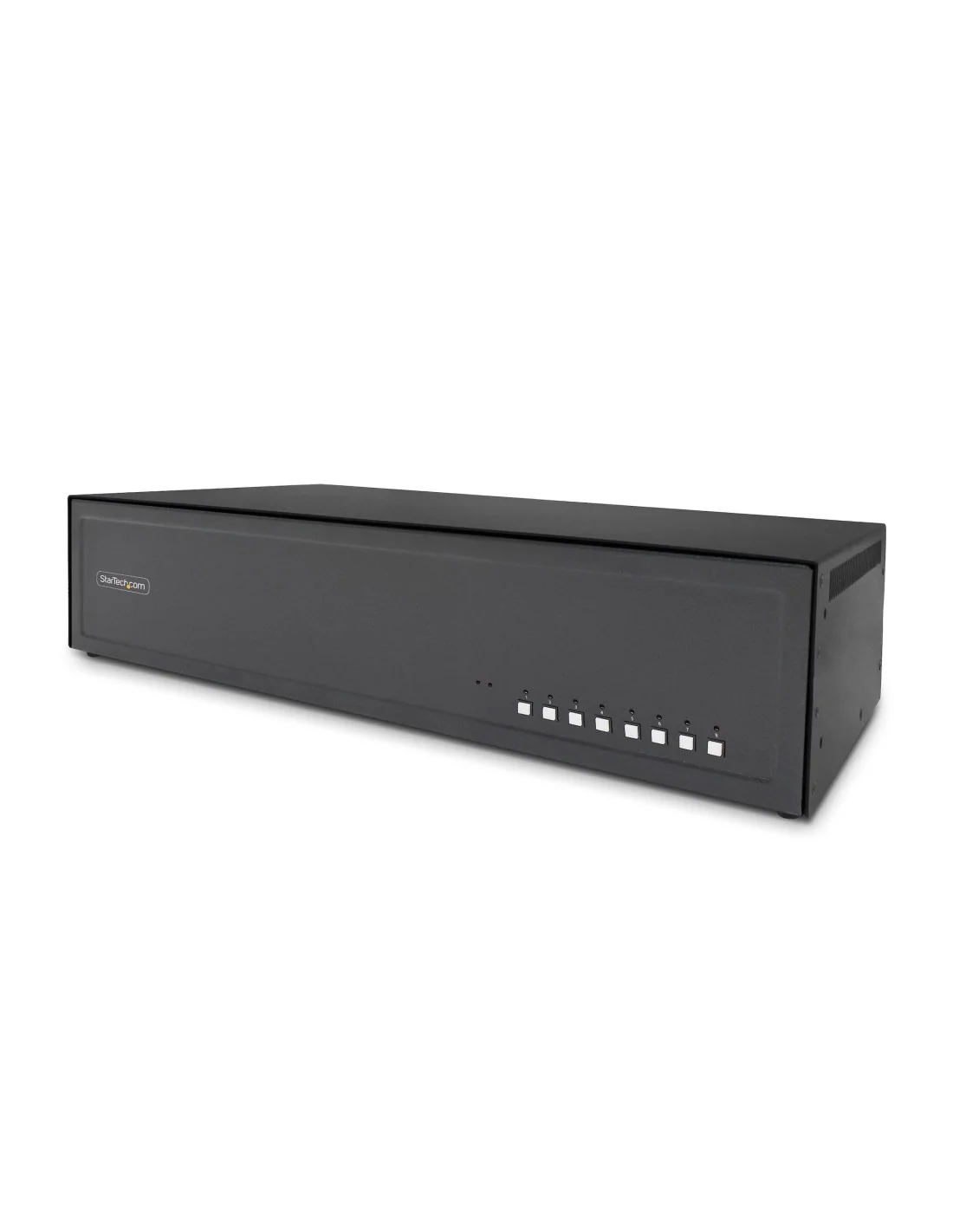

The StarTech.com CK4-P208 is a secure 8-port KVM switch designed for controlling up to 16 computers through dual DisplayPort connections. It supports 4K resolution at 30Hz, using USB and DisplayPort interfaces, in a sturdy metal housing.
Who it's for
This switch fits IT administrators and operators managing multiple computers who need dual-monitor support with secure access and high-resolution video capabilities on a desktop setup.
Why it's good
It streamlines control with two console ports and accommodates 8 DisplayPort monitors. The NIAP 4.0 certification indicates compliance with security standards, while audio inputs and outputs are included for a complete workstation experience.
When to choose it
Choose this model if you require secure, high-resolution dual-monitor management for a sizable number of computers from a single workstation in an office that values physical security.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Number of microphone inputs | 8 |
| DisplayPorts quantity | 16 |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| USB 2.0 Type-B ports quantity | 8 |
| Console DisplayPorts ports quantity | 2 |
| Performance | |
| Daisy chain | No |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Audio channels | 2.0 |
| Number of displays supported | 2 |
| Maximum refresh rate | 30 Hz |
| Maximum cable length | 6 m |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| On Screen Display (OSD) | No |
| LED indicators | Yes |
| Hot keys | No |
| IP control | No |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Design | |
| Maximum cable length | 6 m |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | No |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Sustainability | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 220.7 mm |
| Depth | 431.8 mm |
| Height | 220.7 mm |
| Weight | 3.1 kg |
| Other features | |
| IP control | No |
| Push button | Yes |
| Hot keys | No |
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
Please contact Creative Systems to verify your setup compatibility and confirm stock details before purchase.
