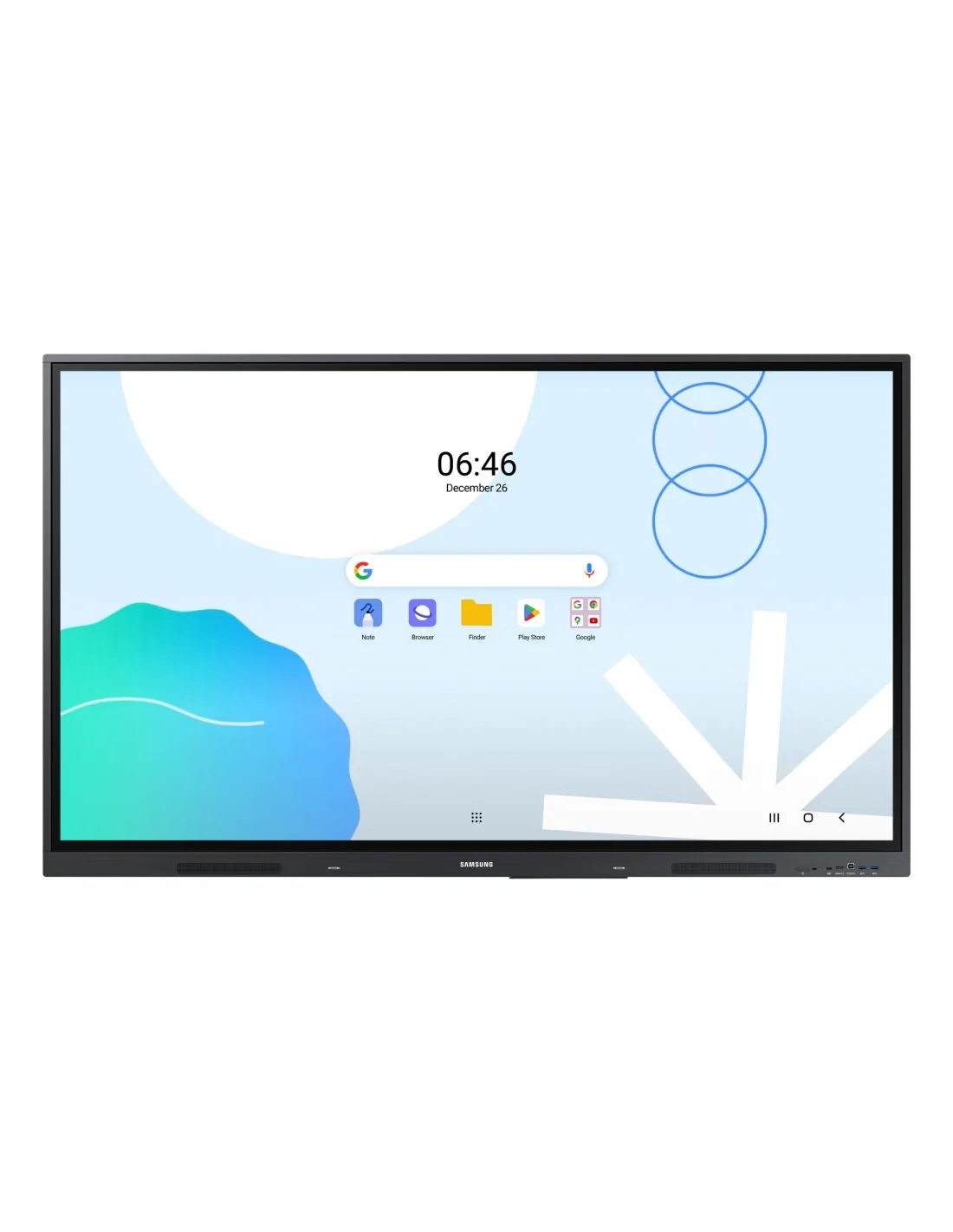

Samsung WA86D interactive whiteboard 2.18 m (86") 3840 x 2160 pixels

Samsung WA86D interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Grey

Name: Samsung WA86D interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Grey
Brand: Samsung
SKU: LH86WADWLGCXEN
Price: 3330.77 EUR
Availability: InStock

Last items in stock

€2707.94 excl. VAT

€3,330.77 incl. VAT

Samsung WA86D, 2.18 m (86"), 400 cd/m², 3840 x 2160 pixels, 4K Ultra HD, ADS, 16:9

Description

Samsung WA86D. Display diagonal: 2.18 m (86"), Display brightness: 400 cd/m², Display resolution: 3840 x 2160 pixels. Operating system installed: Android, Maximum internal memory: 64 GB. Microphone connectivity: 3.5 mm. Product colour: Grey, Panel mounting interface: 800 x 600 mm, Certification: Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020.... Operating hours (hours/days): 12/7

Display
Display diagonal	2.18 m (86")
Contrast ratio (typical)	1200:1
Touchscreen	Yes
Touchscreen type	Infrared
Panel type	ADS
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	8 ms
Pixel pitch	429.6 x 429.6 mm
Colour gamut	72%
Maximum pixel clock	78 MHz
Haze rate	25%
Touch technology	Multi-touch
Display brightness	400 cd/m²
Display resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Native aspect ratio	16:9
Features
Display diagonal	2.18 m (86")
Contrast ratio (typical)	1200:1
Touchscreen	Yes
Touchscreen type	Infrared
Panel type	ADS
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	8 ms
Pixel pitch	429.6 x 429.6 mm
Colour gamut	72%
Maximum pixel clock	78 MHz
Haze rate	25%
Touch technology	Multi-touch
Display brightness	400 cd/m²
Display resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Native aspect ratio	16:9
Product colour	Grey
Operating system installed	Android
Computer system
Operating system installed	Android
Maximum internal memory	64 GB
Operating system version	13
Projector
Built-in projector	No
Contrast ratio (typical)	1200:1
Network
Bluetooth	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Ports & interfaces
USB 2.0 ports quantity	1
HDMI ports quantity	3
HDCP	Yes
Ethernet LAN (RJ-45) ports	2
Microphone connectivity	3.5 mm
RS-232 ports	2
HDMI version	2.0
HDCP version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output	1
Video out	Yes
IR input port	Yes
Bluetooth	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Ergonomics
Product colour	Grey
Certification	Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3 IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252
VESA mounting	Yes
Panel mounting interface	800 x 600 mm
Performance
Operating hours (hours/days)	12/7
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	486 W
Power consumption (sleep)	0.5 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Technical details
Touchscreen	Yes
Panel type	ADS
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	8 ms
Pixel pitch	429.6 x 429.6 mm
Colour gamut	72%
Maximum pixel clock	78 MHz
Haze rate	25%
Quantity per pack	1 pc(s)
Weight & dimensions
Width	1957 mm
Depth	99 mm
Height	1160 mm
Weight	56.5 kg
Bezel width	1.64 cm
Packaging data
Package width	2110 mm
Package depth	225 mm
Package height	1283 mm
Package weight	74.3 kg
Quantity per pack	1 pc(s)
Memory
Maximum internal memory	64 GB
Certificates
Certification	Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3 IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252
Colour
Product colour	Grey

Product Details

Reference LH86WADWLGCXEN

In stock 13 Items
