What it is

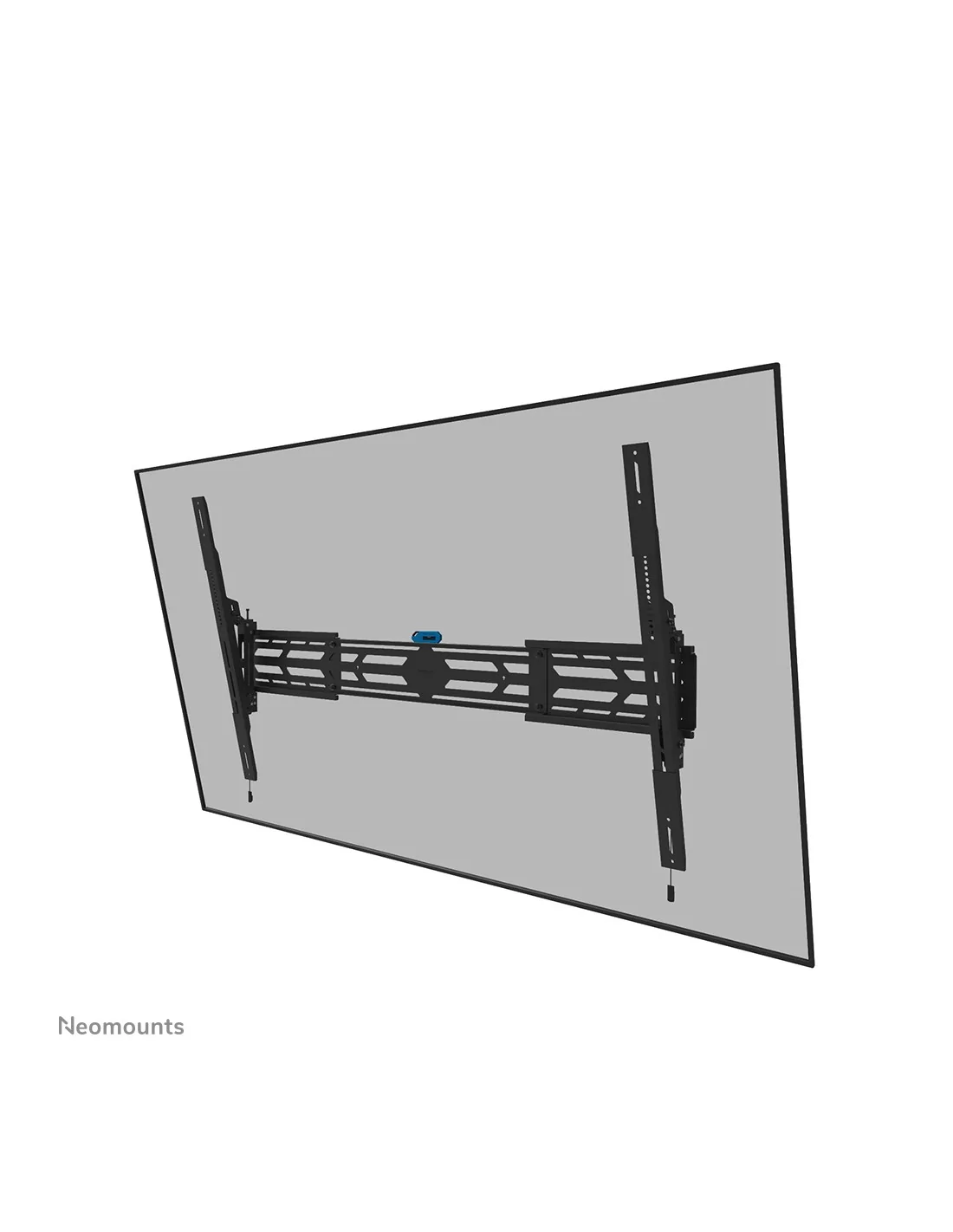

The Neomounts WL35S-950BL19 is a heavy duty steel wall mount designed for large displays from 55 to 115 inches. It supports screens weighing up to 160 kg, tilts up to 12°, rotates 6°, and pivots ±3° — allowing both landscape and portrait orientation. A security screw and padlock point are built in, and the bracket sits just 9 cm from the wall when fully installed.
Who it's for
This mount is aimed at integrators, AV installers, and facilities teams fitting large-format commercial displays — think digital signage, video walls, or oversized screens in lobbies, retail spaces, control rooms, or venues. If you're hanging anything over 75 inches or heavier than a typical consumer TV, this is the kind of bracket you need.
Why it's good
- 160 kg weight capacity — handles the heaviest commercial panels without compromise.
- 55" to 115" screen range with VESA compatibility from 100 x 100 mm up to 1500 x 900 mm — covers practically every large-format panel on the market.
- Adjustable width (893–1600 mm) and height fine-tuning (0–20 mm) make alignment straightforward on-site.
- Tiltable and pivotable — 12° tilt and ±3° pivot correct for uneven walls and viewer sightlines.
- Lockable — padlock-ready with a security screw included. Useful anywhere public access is a concern.
- 5-year warranty — long enough to matter on a commercial installation.
When to choose it
Choose this mount when the display is large, heavy, or going somewhere it needs to stay put securely — public-facing signage, hospitality venues, or corporate spaces with expensive panels. If your screen is under 55 inches or a lightweight consumer model, you don't need this level of bracket and there are more affordable options. But for anything pushing the upper end of panel sizes, this is a practical, well-specified choice that won't let you down mid-installation.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 160 kg |
| Mounting type | Wall |
| Minimum screen size | 139.7 cm (55") |
| Panel mounting interface | 1000 x 400,1000 x 600,1000 x 800,1000 x 700,100 x 200,100 x 100,100 x 150,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,200 x 100,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,800 x 800,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600 |
| Number of displays supported | 1 |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 1500 x 900 mm |
| Maximum screen size | 2.92 m (115") |
| Maximum weight capacity | 160 kg |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 20 mm |
| Tilt angle range | 0 - 12° |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Distance to the wall (max) | 9 cm |
| Tilt adjustment | Yes |
| Technical details | |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Number of displays supported | 1 |
| Distance to the wall (max) | 9 cm |
| Product colour | Black |
| Mounting type | Wall |
| Width adjustment range | 893 - 1600 mm |
| Country of origin | China |
| Package net weight | 12.5 kg |
| Master (outer) case net weight | 22.1 kg |
| Warranty period | 5 year(s) |
| Lockable | Security screw included |
| Design | |
| Accepts padlock | Yes |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 1600 mm |
| Depth | 90 mm |
| Height | 936 mm |
| Weight | 11.1 kg |
| Depth (max) | 9 cm |
| Packaging data | |
| Package width | 222 mm |
| Package depth | 98 mm |
| Package height | 918 mm |
| Package weight | 12.5 kg |
| Logistics data | |
| Master (outer) case width | 211 mm |
| Master (outer) case length | 242 mm |
| Master (outer) case height | 938 mm |
| Master (outer) case gross weight | 25.7 kg |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case net weight | 22.1 kg |
| Products per pallet (EU) | 36 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Wall |
| Width adjustment range | 893 - 1600 mm |
| Country of origin | China |
Ready to confirm fit for your installation? Get an Installation Price or Talk to an AV Specialist — we'll make sure the bracket, wall fixings, and panel all line up before anything gets ordered.
