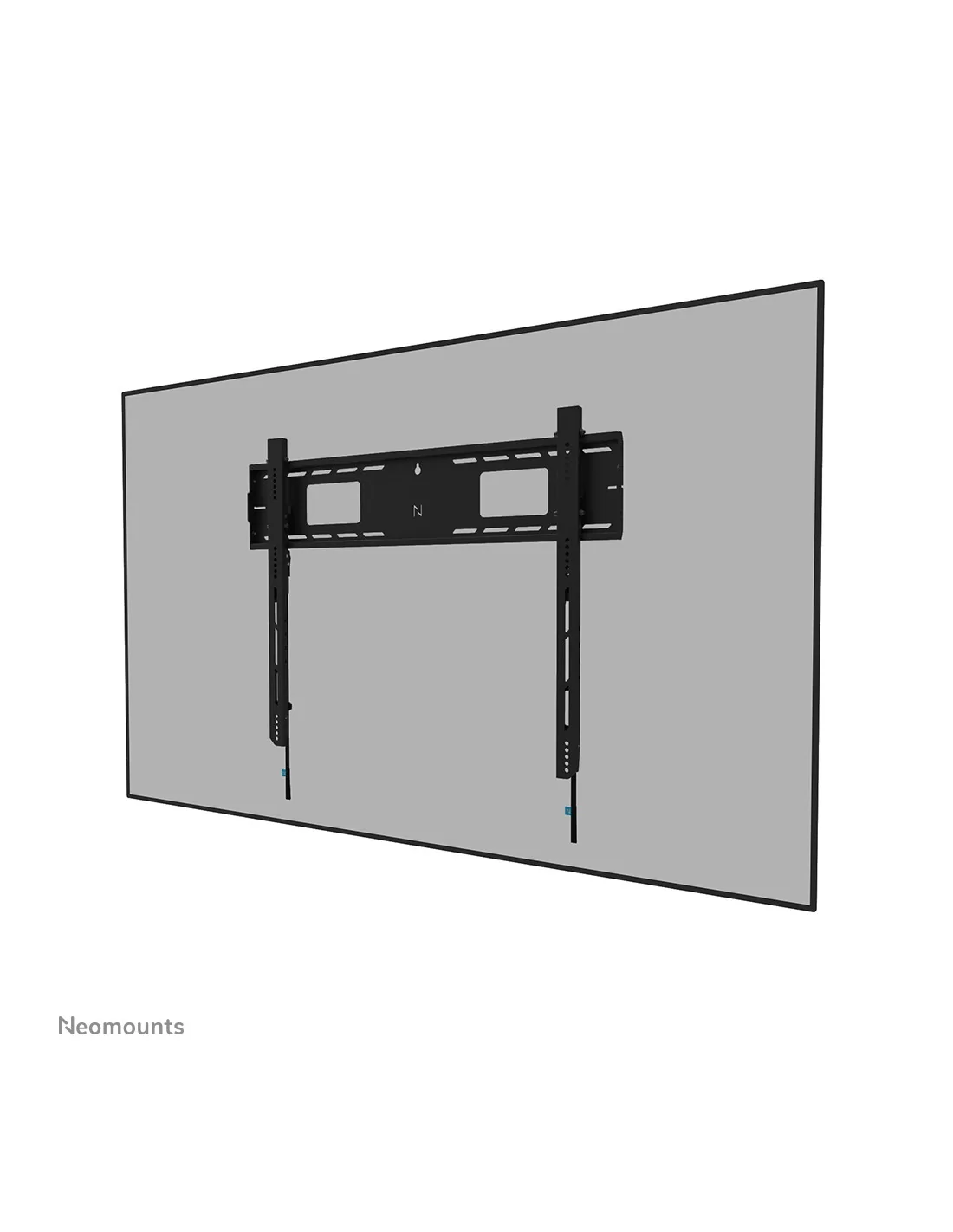

The Neomounts WL30-750BL18 LEVEL is the ultimate solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL18 feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

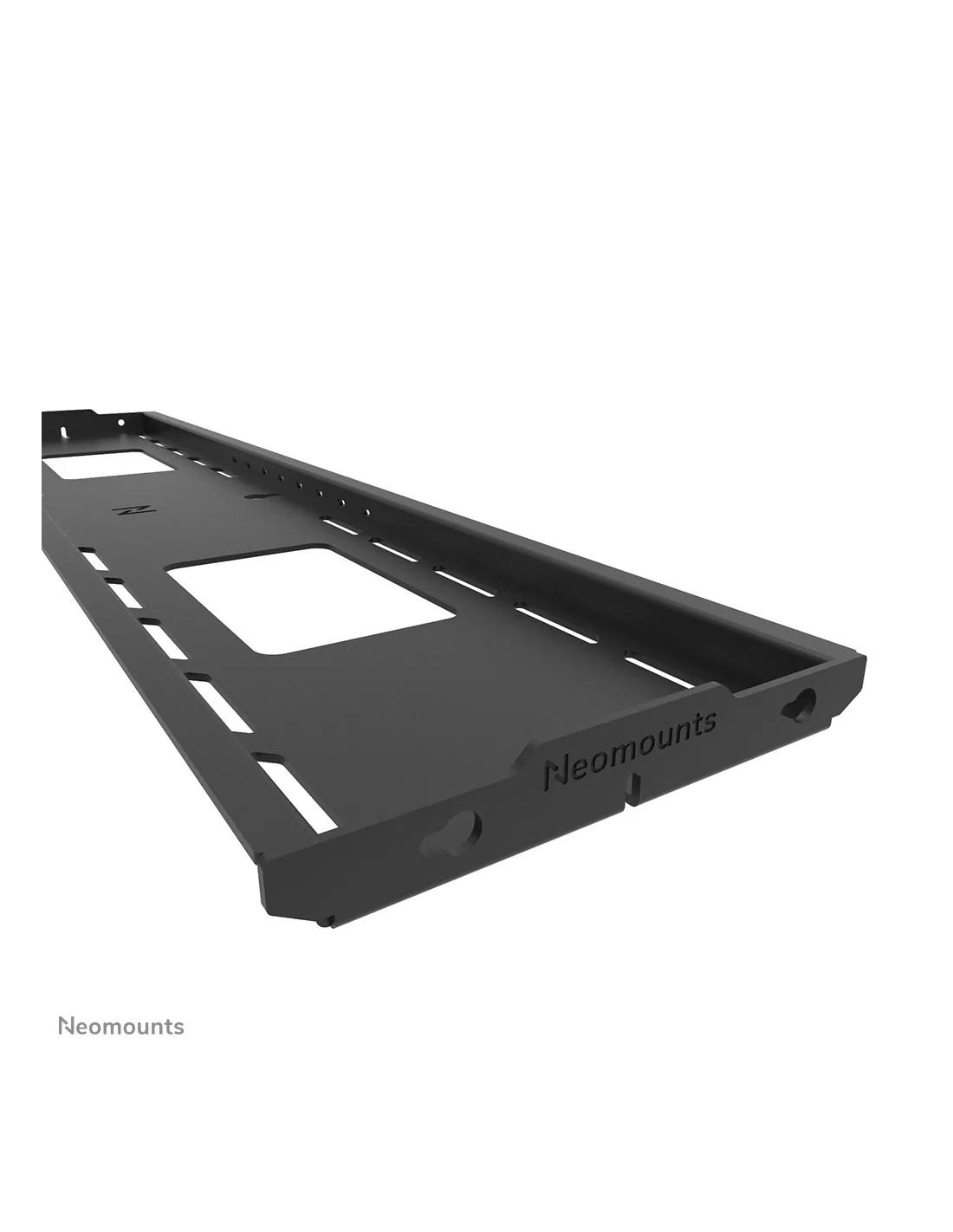

The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.
The WL30-750BL18 includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.
For simple and effective storage, an optionally available AV-rack can be installed to the left or right side of the mount.
The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.
The WL30-750BL18 includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.
For simple and effective storage, an optionally available AV-rack can be installed to the left or right side of the mount.
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 125 kg |
| Mounting type | Wall |
| Minimum screen size | 139.7 cm (55") |
| Panel mounting interface | 100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600 |
| Number of displays supported | 1 |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 800 x 600 mm |
| Maximum screen size | 2.49 m (98") |
| Maximum weight capacity | 125 kg |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Cable management | Yes |
| Distance to the wall (max) | 4.2 cm |
| Type | Fixed |
| Technical details | |
| Cable management | Yes |
| Number of displays supported | 1 |
| Distance to the wall (max) | 4.2 cm |
| Product colour | Black |
| Mounting type | Wall |
| Country of origin | China |
| Master (outer) case net weight | 18.9 kg |
| Lockable | Padlock not included |
| Design | |
| Cable management | Yes |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 886 mm |
| Depth | 42 mm |
| Height | 684 mm |
| Weight | 6.3 kg |
| Depth (max) | 4.2 cm |
| Packaging data | |
| Package width | 928 mm |
| Package depth | 61 mm |
| Package height | 209 mm |
| Package weight | 7.7 kg |
| Logistics data | |
| Master (outer) case width | 946 mm |
| Master (outer) case length | 227 mm |
| Master (outer) case height | 201 mm |
| Master (outer) case gross weight | 23.7 kg |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case net weight | 18.9 kg |
| Products per pallet (EU) | 90 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Wall |
| Country of origin | China |
