What it is

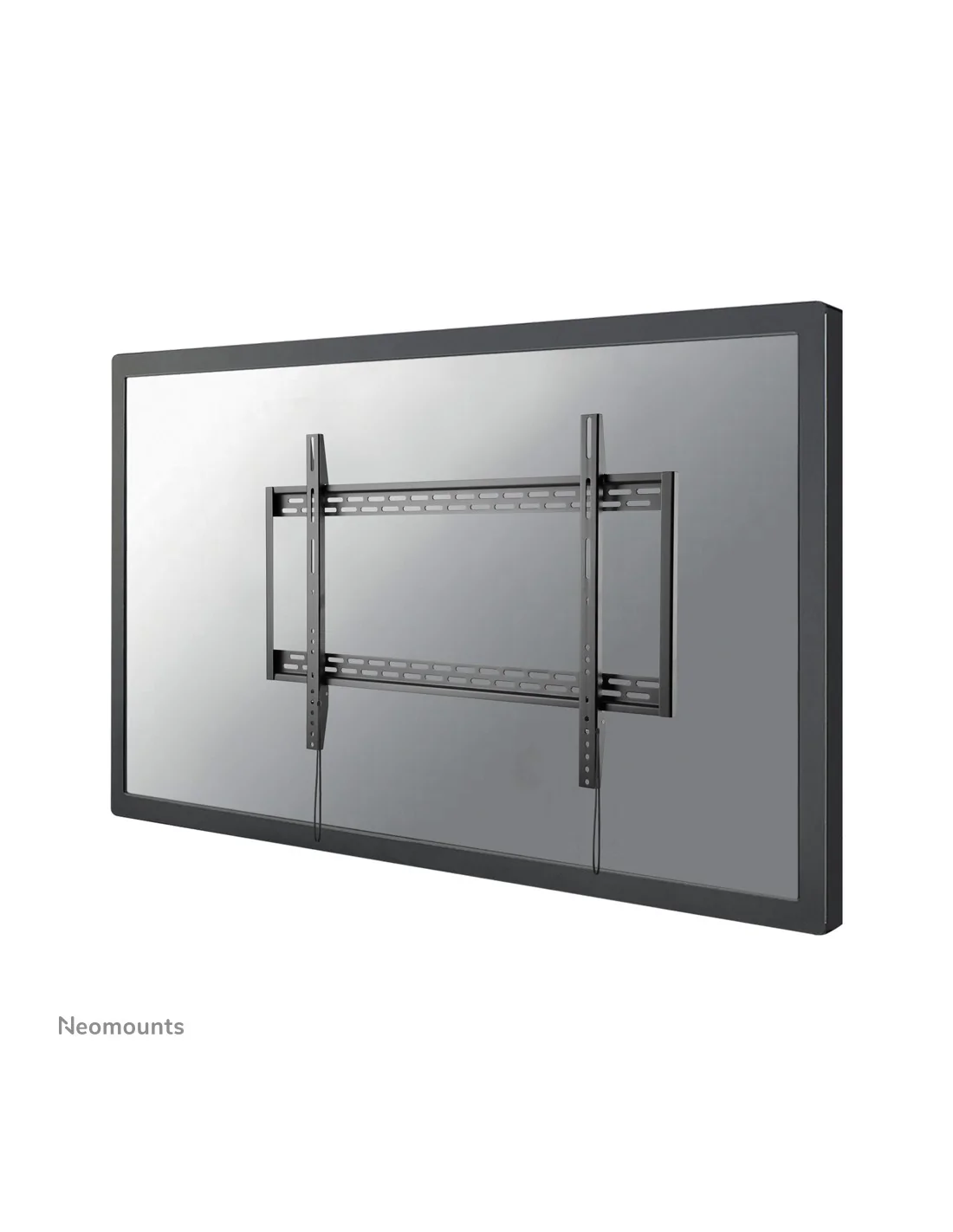

The Neomounts LFD-W1000 is a fixed wall mount designed to hold large flat screens from 60" to 100" safely and securely. It supports displays up to 125 kg and conforms to a wide range of VESA mounting patterns from 200x200mm up to 900x600mm. Its profile keeps the screen just 3.2 cm from the wall, offering a clean look.
Who it's for
This mount suits environments where a sturdy, no-move mounting solution is needed for large TVs or digital displays, such as conference rooms, public areas, or display walls. It's aimed at users who don't require tilt or swivel, but want a reliable fixed bracket that fits a broad range of panel sizes and weights.
Why it's good
This bracket handles heavy screens up to 125 kg, covering large professional displays. Its wide VESA compatibility avoids compatibility issues with oversized or unconventional mounting holes, and the slim depth helps maintain neat installations with minimal wall gap.
When to choose it
Opt for this mount if you have a large display within the 60" to 100" range and prefer a fixed position without adjustment options. It's ideal if you want a straightforward, robust mounting solution that matches heavy panels and a wide VESA pattern range.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 125 kg |
| Mounting type | Wall |
| Minimum screen size | 152.4 cm (60") |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600 |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 900 x 600 mm |
| Maximum screen size | 2.54 m (100") |
| Maximum weight capacity | 125 kg |
| Ergonomics | |
| Distance to the wall (max) | 3.2 cm |
| Type | Fixed |
| Technical details | |
| Number of displays supported | 1 |
| Distance to the wall (max) | 3.2 cm |
| Product colour | Black |
| Mounting type | Wall |
| Country of origin | China |
| Package net weight | 6.25 kg |
| Master (outer) case net weight | 25 kg |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Weight | 4.55 kg |
| Packaging data | |
| Package width | 415 mm |
| Package depth | 40 mm |
| Package height | 1115 mm |
| Package weight | 6.3 kg |
| Logistics data | |
| Master (outer) case width | 1130 mm |
| Master (outer) case length | 180 mm |
| Master (outer) case height | 430 mm |
| Master (outer) case gross weight | 25 kg |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case net weight | 25 kg |
| Products per pallet (EU) | 44 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Wall |
| Country of origin | China |
Before ordering, please check your screen’s weight, size, and VESA pattern against this mount’s limits to ensure compatibility. Contact us for assistance or alternatives if needed.
