What it is

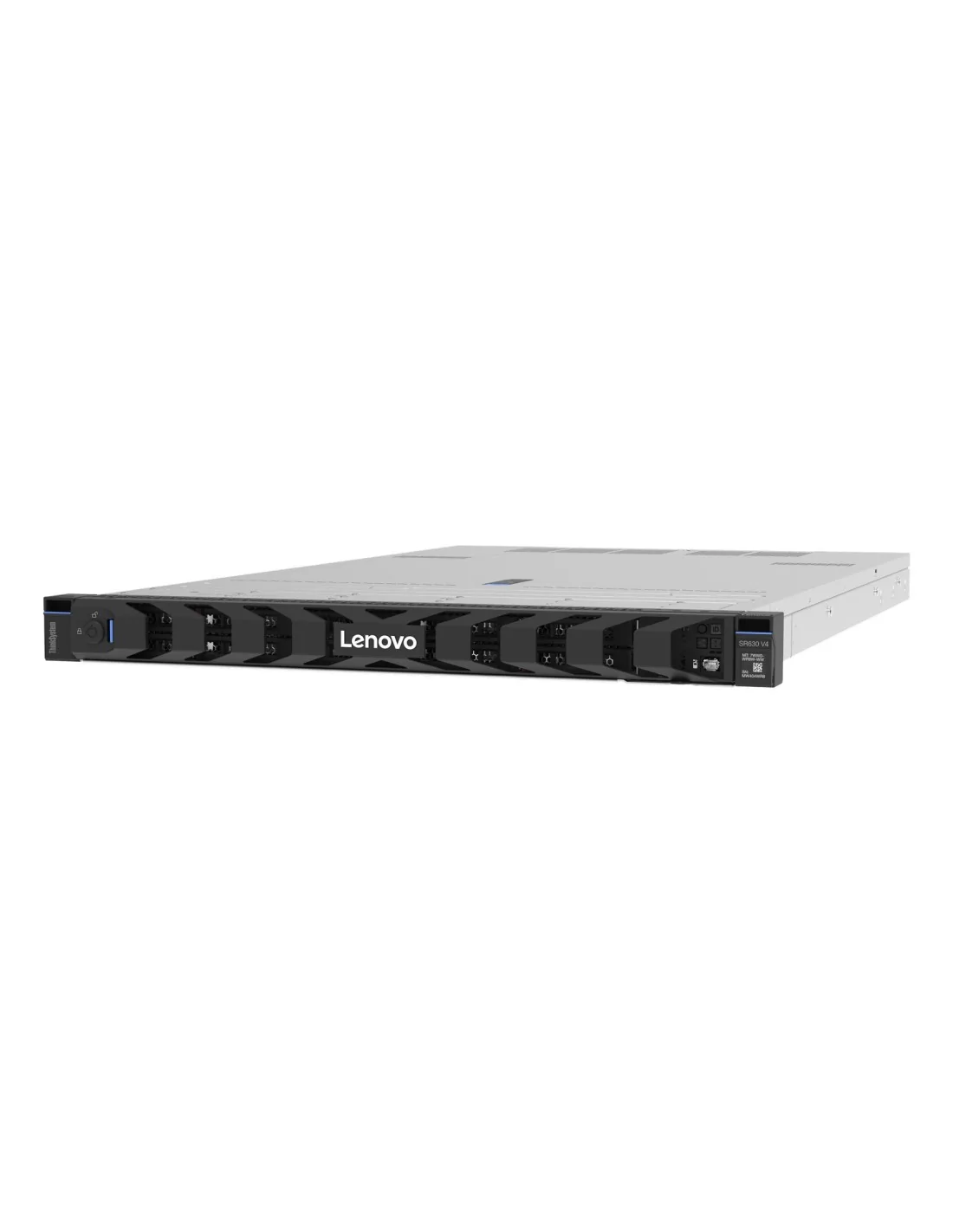

The Lenovo ThinkSystem SR630 V4 is a 1U rack server equipped with a single Intel Xeon 6515P processor running at 2.3 GHz base frequency, boosted up to 3.8 GHz. It includes 32GB of DDR5 RAM and a 940-8i RAID controller with 4GB cache, powered by a 1300W PSU.
Who it's for
This server suits organisations needing scalable performance for mid-density workloads, such as virtualization, database management, or medium-sized data centres that require a reliable 1U system with modern processor and memory technology.
Why it's good
Its Intel Xeon 6515P processor provides 8 cores and 32 threads with a 72MB cache, making it responsive under multi-threaded applications. DDR5 memory offers improved bandwidth over previous generations. The 940-8i RAID controller supports data redundancy and improved storage performance. The compact 1U design saves rack space while the 1300W PSU supports energy-efficient operation.
When to choose it
Consider this model if you need a server with solid processing and memory capacity but don't require dual processors or higher core counts. It's appropriate when a balanced mix of performance, storage options, and rack density is needed, without over-specifying your hardware.
Specifications
| Processor | |
|---|---|
| Processor threads | 32 |
| Processor cache | 72 MB |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 3.8 GHz |
| Number of processors installed | 1 |
| Processor model | 6515P |
| Processor cores | 16 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon 6 |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 32x DIMM |
| Maximum internal memory | 8 TB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory ranking | 2 |
| Storage | |
| Supported RAID controllers | 940-8i 4GB |
| Supported storage drive interfaces | SAS, Serial ATA |
| Hot-swap | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Optical drive type | No |
| Internal drive bays | 8 |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| Cooling type | Active |
| Performance | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Performance management | XClarity Controller Platinum |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Power | |
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1300 W |
| Management features | |
| Performance management | XClarity Controller Platinum |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Rack mounting | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Rack (1U) |
| Supported storage drives form factor (internal) | 2.5" |
| Compliance certificates | CCC, CE, CECP, Federal Communications Commission (FCC), RoHS, UKCA, UL |
| Weight & dimensions | |
| Width | 440 mm |
| Height | 43 mm |
| Depth | 773 mm |
Please contact Creative Systems to confirm compatibility and availability before ordering.
