What it is

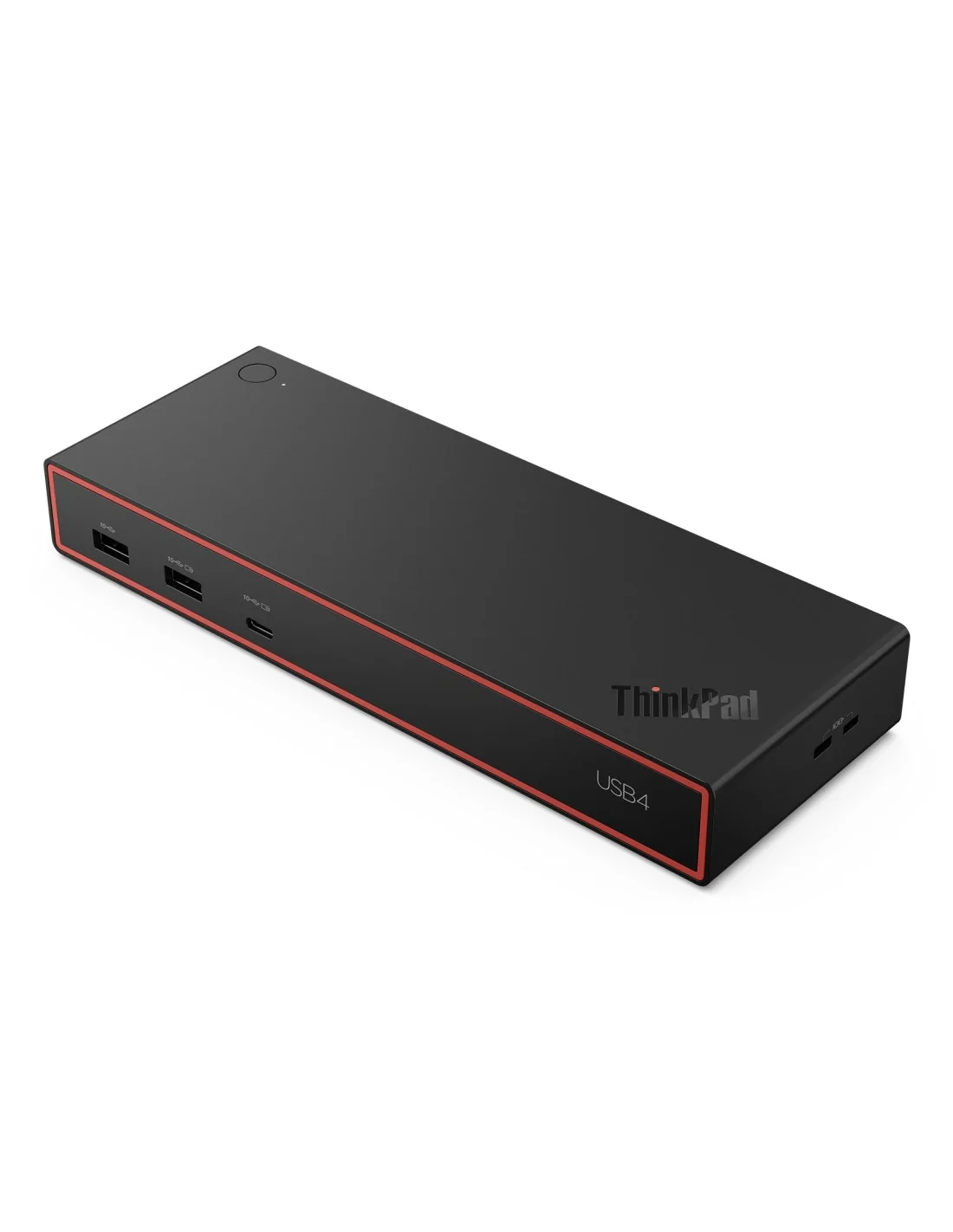

The Lenovo ThinkPad USB4 Dock 5000 is a USB4 compatible laptop dock offering multiple USB-C and USB-A ports plus video outputs for external displays.
Who it's for
This dock is aimed at Lenovo laptop users or others with USB4 capable machines who need to connect several peripherals and displays with a single cable.
Why it's good
It includes four USB 3.2 Gen 2 Type-C ports, two USB 3.2 Gen 2 Type-A ports, one HDMI, and two DisplayPort 2.1 outputs, providing modern connectivity standards and high resolution support.
When to choose it
Select this dock if you want to leverage USB4 speeds and interfaces for a clean workstation setup without adding adapters or multiple cables.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Host interface | USB4 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 65 W |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 4 |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Certification | FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TUV- Mark LoA Ukraine DoC NOM |
| Cable lock slot type | Kensington |
| Colour name | Eclipse Black |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | DC |
| Power supply | 100 W |
| Software | |
| Windows operating systems supported | Windows 11 |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
| Weight | 470 g |
| Width | 218 mm |
| Depth | 80 mm |
| Height | 31.5 mm |
| Package weight | 1.03 kg |
| Package width | 240 mm |
| Package depth | 145 mm |
| Package height | 77 mm |
| Design | |
| Windows operating systems supported | Windows 11 |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Cable lock slot | Yes |
| Certification | FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TUV- Mark LoA Ukraine DoC NOM |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 1.03 kg |
| Package width | 240 mm |
| Package depth | 145 mm |
| Package height | 77 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB |
| AC adapter included | Yes |
| Warranty card | Yes |
| Certificates | |
| Certification | FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TUV- Mark LoA Ukraine DoC NOM |
Please ask Creative Systems to verify your laptop compatibility and availability before ordering.
