What it is

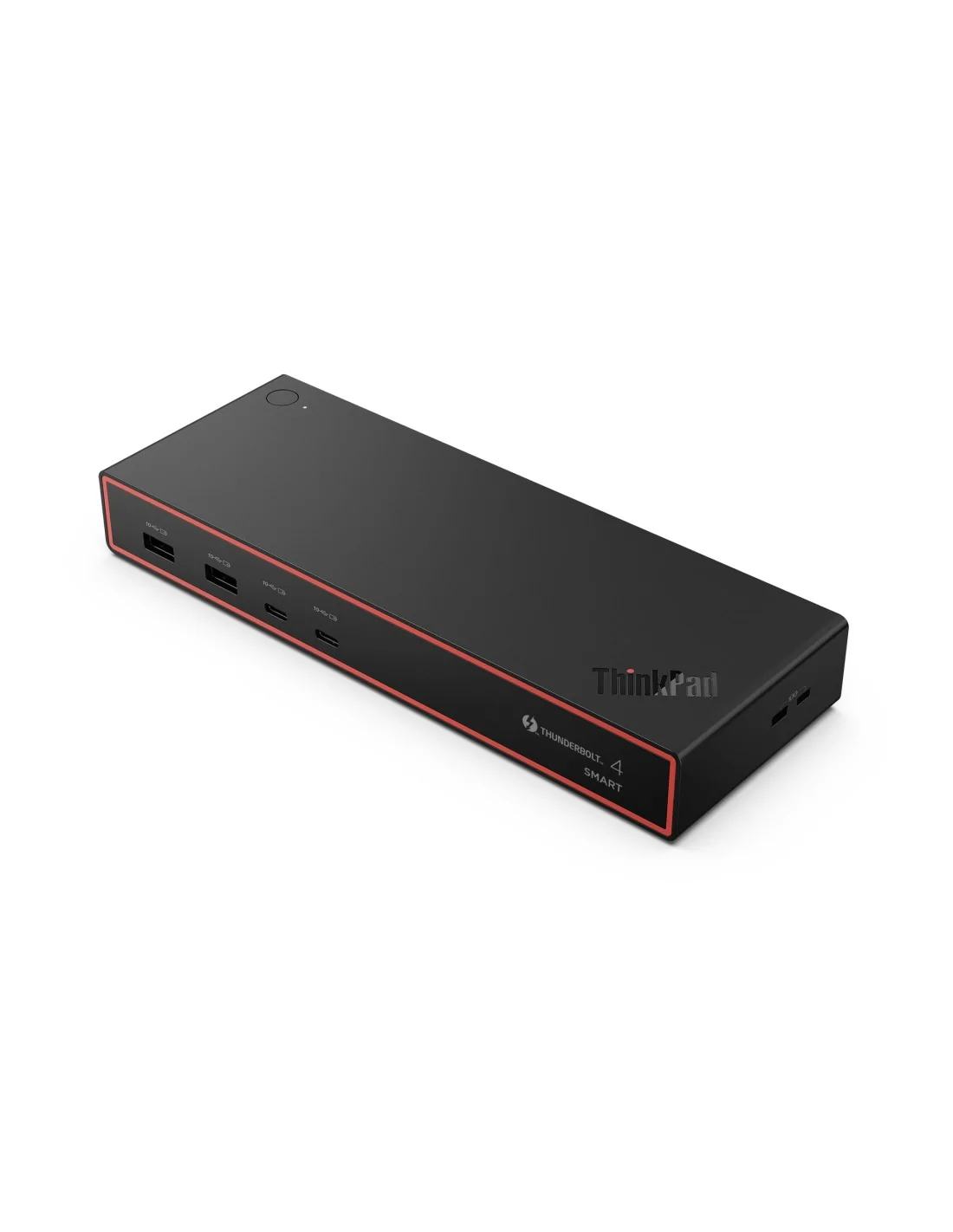

The Lenovo ThinkPad Thunderbolt 4 Smart Dock Gen2 (model 7500) is a wired dock designed to extend connectivity for compatible laptops. It offers multiple USB-C and Thunderbolt ports, as well as HDMI and DisplayPort outputs for displays.
Who it's for
This dock is intended for users who need to connect several peripherals and external monitors to a laptop, especially Lenovo ThinkPads with Thunderbolt 4 support. It's suited for office setups requiring a clean single-cable solution.
Why it's good
With four USB 3.2 Gen 2 Type-C ports and two Thunderbolt 4 ports, it handles high-speed data and video transfer efficiently. Dual DisplayPort and a single HDMI port provide flexible multi-monitor arrangements. Absence of USB-A ports reflects focus on modern connections.
When to choose it
Opt for this dock if your laptop supports Thunderbolt 4 and you want to consolidate multiple peripherals and monitors through one device. Consider your peripheral types as it lacks USB-A ports and headphone jacks.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt ports quantity | 2 |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 7680 x 4320 pixels |
| Number of displays supported | 4 |
| On/off switch | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Certification | FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV-Mark LoA Ukraine DoC NOM IFT TELEC UKCA FAC DoC VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC NCA ARTCI INCM Thunderbolt Cert. EVO |
| Cable lock slot type | Kensington |
| Colour name | Eclipse Black |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | AC |
| Power supply | 135 W |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
| Weight | 547.5 g |
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Package weight | 1.26 kg |
| Package width | 237.8 mm |
| Package depth | 141 mm |
| Package height | 75.8 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Certification | FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV-Mark LoA Ukraine DoC NOM IFT TELEC UKCA FAC DoC VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC NCA ARTCI INCM Thunderbolt Cert. EVO |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 1.26 kg |
| Package width | 237.8 mm |
| Package depth | 141 mm |
| Package height | 75.8 mm |
| Certificates | |
| Certification | FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV-Mark LoA Ukraine DoC NOM IFT TELEC UKCA FAC DoC VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC NCA ARTCI INCM Thunderbolt Cert. EVO |
Contact us to confirm compatibility with your laptop and check stock or alternative dock options if needed.
