What it is

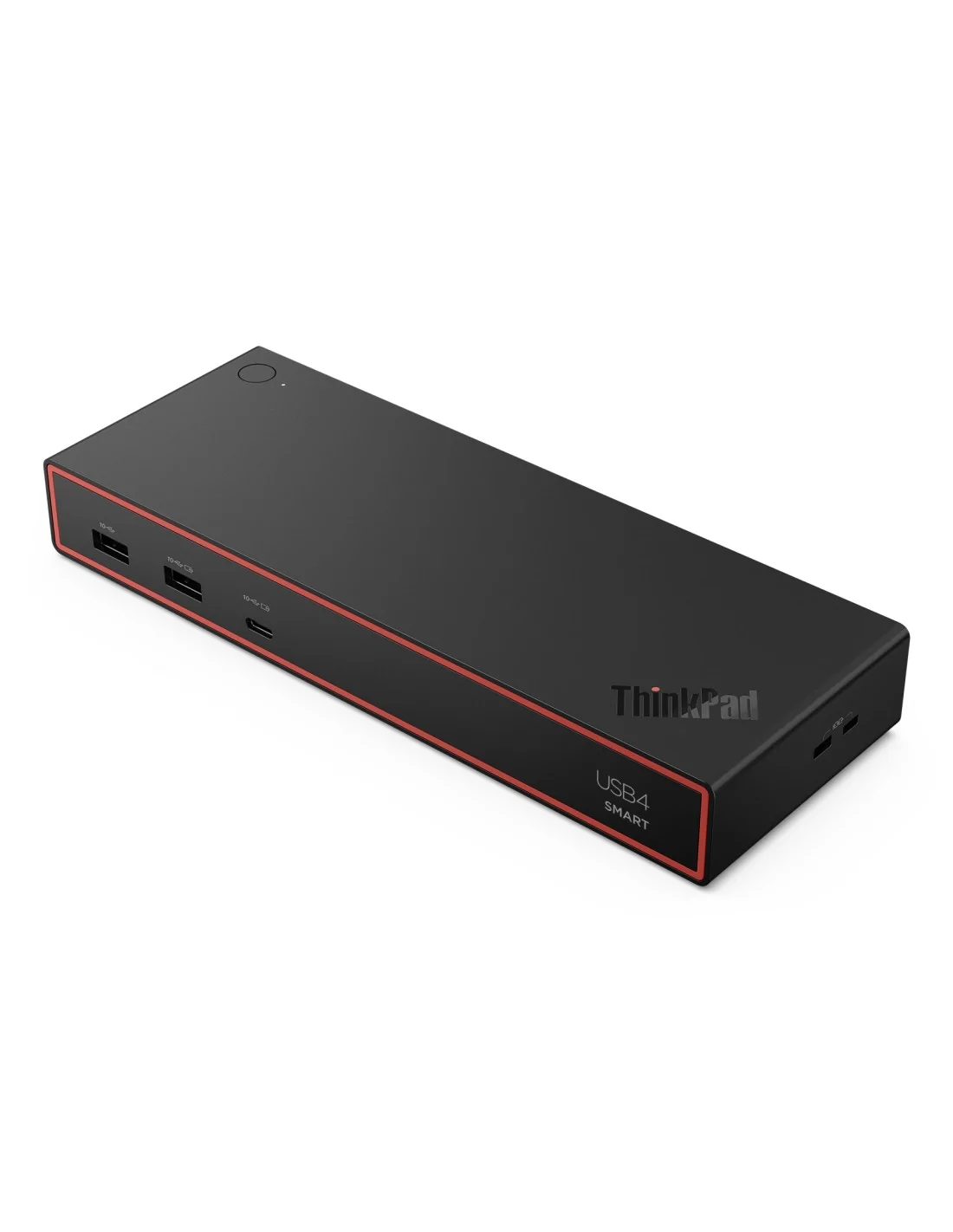

The Lenovo ThinkPad USB4 Smart Dock 5500 is a docking station that connects to laptops via USB4. It features multiple video outputs and USB-C ports but does not include the 135W adapter found in some versions.
Who it's for
Intended for users with USB4-compatible laptops looking for a versatile docking station to attach several displays and USB-C peripherals without extra power delivery above what their laptop provides.
Why it's good
It offers four USB 3.2 Gen 2 Type-C ports, one HDMI port, and two DisplayPorts, supporting high-resolution multi-monitor setups. This dock has the same connectivity as the version with the 135W adapter, minus the power brick.
When to choose it
Choose this dock if your laptop’s power needs are met without an additional adapter or if you already have a compatible power supply. It fits when you want the connectivity features of the ThinkPad Smart Dock 5500 without bundled power.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Host interface | USB4 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| DisplayPort version | 1.4 |
| USB4 ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 4 |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Certification | FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV- Mark LoA Ukraine DoC NOM IFT TELEC UKCA FAC DoC VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC NCA ARTCI INCM |
| Cable lock slot type | Kensington |
| Colour name | Eclipse Black |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | AC |
| Power supply | 100 W |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
| Weight | 472 g |
| Width | 218 mm |
| Depth | 80 mm |
| Height | 31.5 mm |
| Package weight | 1.04 kg |
| Package width | 240 mm |
| Package depth | 145 mm |
| Package height | 77 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Cable lock slot | Yes |
| Certification | FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV- Mark LoA Ukraine DoC NOM IFT TELEC UKCA FAC DoC VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC NCA ARTCI INCM |
| Cable lock slot type | Kensington |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 1.04 kg |
| Package width | 240 mm |
| Package depth | 145 mm |
| Package height | 77 mm |
| Packaging content | |
| AC adapter included | Yes |
| Warranty card | Yes |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV- Mark LoA Ukraine DoC NOM IFT TELEC UKCA FAC DoC VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC NCA ARTCI INCM |
Please consult Creative Systems to ensure this dock suits your laptop’s power and port requirements before ordering.
