What it is

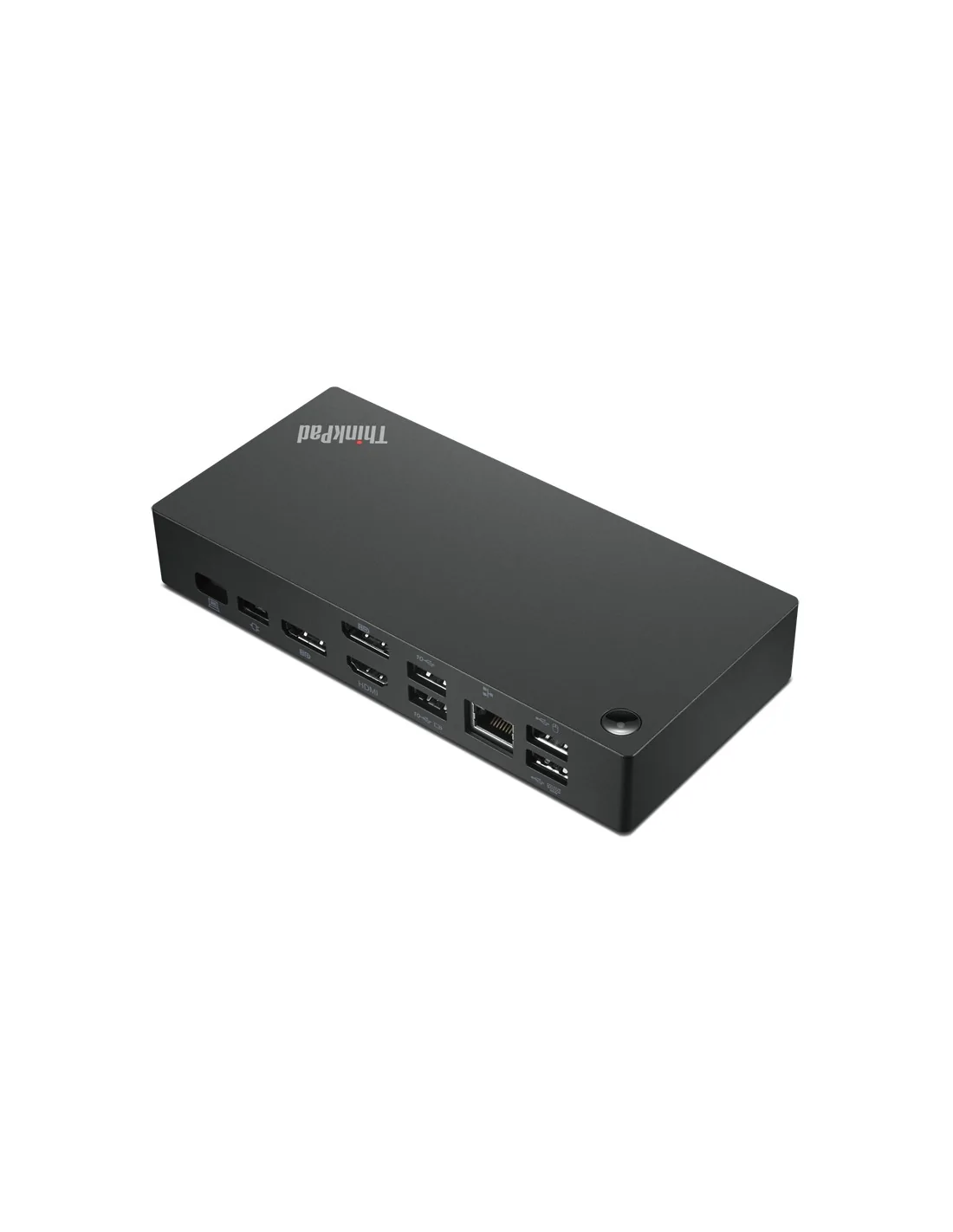

The Lenovo 40AY0090UK is a wired USB 3.2 Gen 1 Type-C docking station delivering multiple video and data ports, including 2 DisplayPorts, 1 HDMI, and several USB connections, plus Gigabit Ethernet and 90W power delivery.
Who it's for
This dock is suited for Lenovo laptop users or others with compatible USB-C ports who need to expand their connectivity for displays, peripherals, and wired networking.
Why it's good
It supports dual monitor setups through DisplayPort and HDMI outputs and provides plenty of USB 3.1 and USB 2.0 ports for external devices. The 90W power supply supports charging compatible laptops while docked.
When to choose it
Opt for this dock if your laptop supports USB-C video output and you require multiple display options plus wired device connections in a compact wired solution.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| On/off switch | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Certification | FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM |
| Cable lock slot type | Kensington |
| HD type | 4K Ultra HD |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | CE |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Power connector | USB Type-C |
| Power supply | 90 W |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
| Weight | 340 g |
| Width | 171 mm |
| Depth | 80 mm |
| Height | 30.8 mm |
| Package weight | 955 g |
| Package width | 210 mm |
| Package depth | 158 mm |
| Package height | 75 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 7 |
| Product colour | Black |
| Cable lock slot | Yes |
| Certification | FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM |
| Cable lock slot type | Kensington |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 955 g |
| Package width | 210 mm |
| Package depth | 158 mm |
| Package height | 75 mm |
| Packaging content | |
| Cables included | USB Type-C |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
Please check with Creative Systems to ensure your laptop compatibility and confirm stock availability before ordering.
