What it is

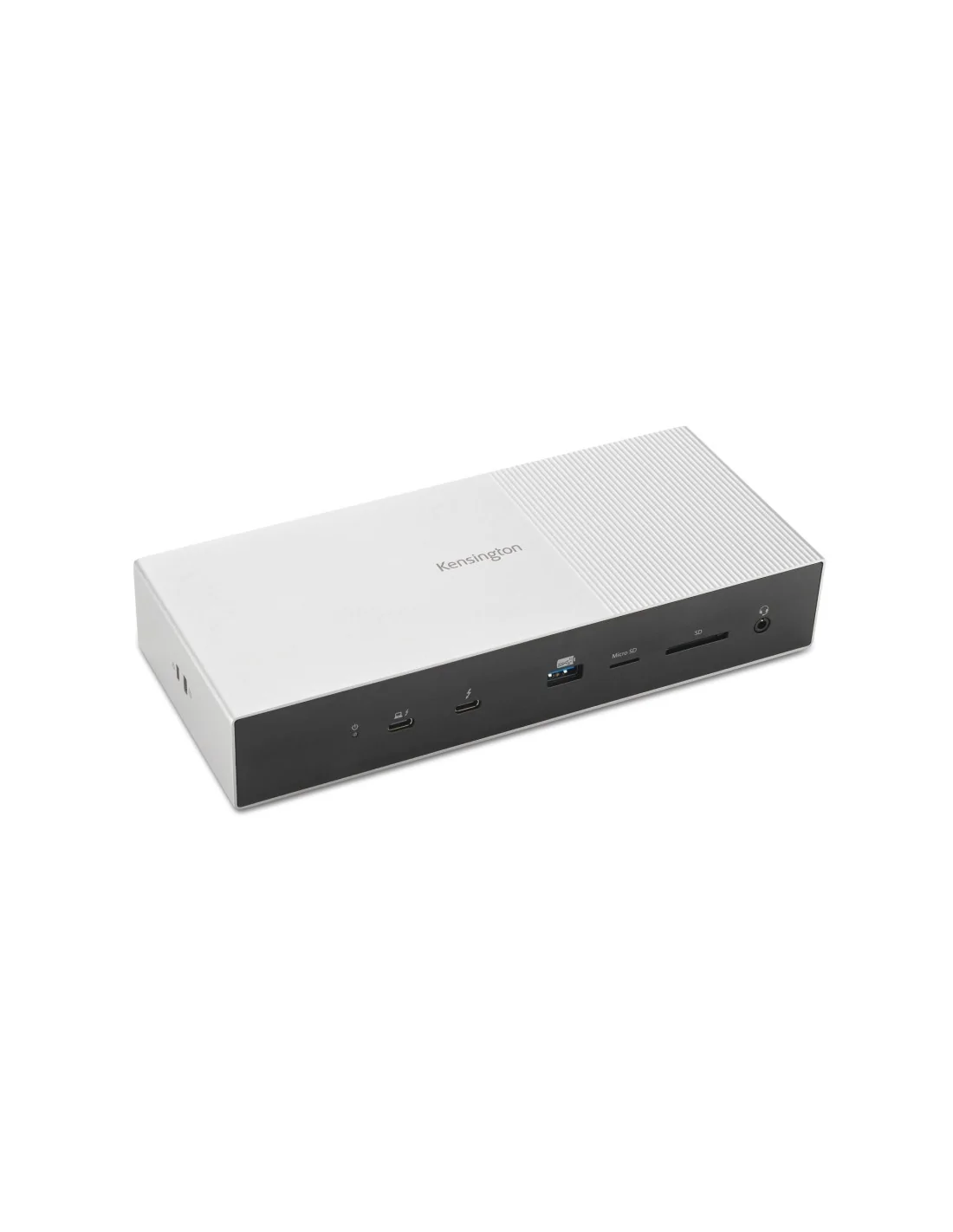

The Kensington SD5000T5 EQ is a Thunderbolt 5 docking station that supports triple 4K displays and delivers up to 140W power delivery for charging laptops. It works with both Windows and macOS systems.
Who it's for
This dock suits professionals needing extensive port options and multiple high-resolution monitors connected to a laptop. It’s ideal if you require fast data transfer and powerful charging in one unit.
Why it's good
It supports Thunderbolt 5 for fast connections and provides three 4K display outputs, alongside USB 3.2 Gen 1 Type-A ports and a headphone jack. The 140W power delivery ensures sufficient power for most laptops while maintaining stable wired connectivity.
When to choose it
Select this docking station if your laptop supports Thunderbolt 5 and you plan to connect up to three 4K monitors. Also suitable if you want a single dock that handles charging and peripheral connections without adding unnecessary features.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Headphone connectivity | 3.5 mm |
| Host interface | Thunderbolt 5 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| Thunderbolt 5 ports quantity | 3 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 7680 x 4320 pixels |
| Number of displays supported | 3 |
| Country of origin | China |
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
| Data transfer rate | 80 Gbit/s |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Cable lock slot type | Nano, Kensington |
| HD type | 8K Ultra HD |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Maximum refresh rate | 540 Hz |
| Technical details | |
| Product colour | Black, Grey |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Data transfer rate | 80 Gbit/s |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Special features | EQ |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 282 mm |
| Master (outer) case gross weight | 12.1 kg |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 352 mm |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Power | |
| Input current | 2.5 A |
| AC input voltage | 100 - 240 V |
| Output voltage | 20 V |
| Output current | 9 A |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Indication | |
| LED indicators | Power |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -18 - 60 °C |
| Operating relative humidity (H-H) | 0 - 55% |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Width | 97 mm |
| Depth | 226 mm |
| Height | 40 mm |
| Package weight | 1.9 kg |
| Package width | 125 mm |
| Package depth | 264 mm |
| Package height | 154 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | China |
| Product colour | Black, Grey |
| Cable lock slot | Yes |
| LED indicators | Power |
| Cable lock slot type | Nano, Kensington |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 1.9 kg |
| Package width | 125 mm |
| Package depth | 264 mm |
| Package height | 154 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, Thunderbolt |
| AC adapter included | Yes |
| Warranty card | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 282 mm |
| Master (outer) case gross weight | 12.1 kg |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 352 mm |
| Customs product code (TARIC) | 84718000 |
| Master (outer) case net weight | 12.1 kg |
| Other features | |
| USB ports quantity | 3 |
| Minimum system requirements | CPU: Intel Core HX series 13th /14th+ |
| Compatible operating systems | macOS 14.5 or above; Windows 11 (23H2 or later) |
| Special features | EQ |
Contact Creative Systems to confirm compatibility with your setup and check current availability before ordering.
